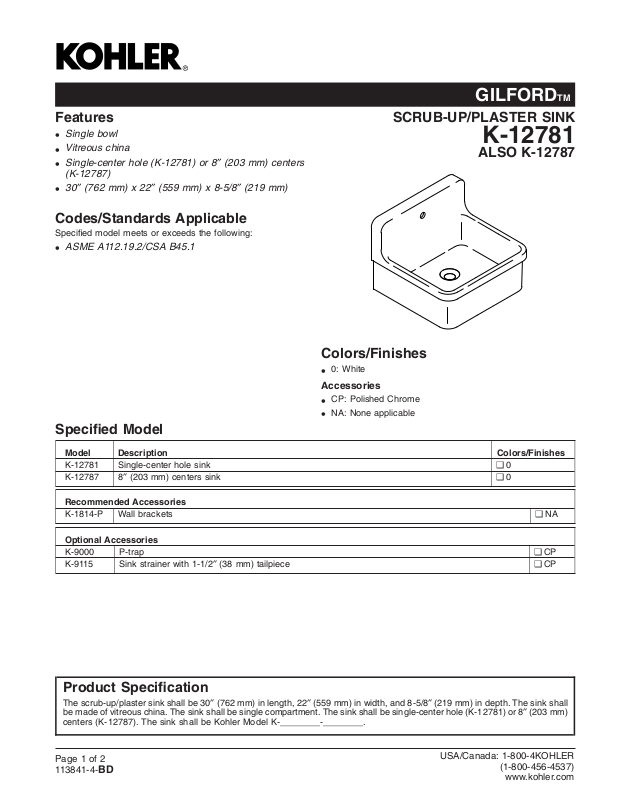

Page 1
GILFORDTM
Features
Single bowl
•
Vitreous china
•
Single-center hole (K-12781) or 8″ (203 mm) centers
•
(K-12787)
30″ (762 mm) x 22″ (559 mm) x 8-5/8″ (219 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.2/CSA B45.1
•
Specified Model
SCRUB-UP/PLASTER SINK
Colors/Finishes
0: White
•
Accessories
CP: Polished Chrome
•
NA: None applicable
•
K-12781
ALSO K-12787
Model Description Colors/Finishes
K-12781 Single-center hole sink ❑ 0
K-12787 8″ (203 mm) centers sink ❑ 0
Recommended Accessories
K-1814-P Wall brackets ❑ NA
Optional Accessories
K-9000 P-trap ❑ CP
K-9115 Sink strainer with 1-1/2″ (38 mm) tailpiece ❑ CP
Product Specification
The scrub-up/plaster sink shall be 30″ (762 mm) in length, 22″ (559 mm) in width, and 8-5/8″ (219 mm) in depth. The sink shall
be made of vitreous china. The sink shall be single compartment. The sink shall be single-center hole (K-12781) or 8″ (203 mm)
centers (K-12787). The sink shall be Kohler Model K-________-________.
Page 1 of 2
113841-4-
BD
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
GILFORDTM
Technical Information
Fixture*:
Sink
Bowl area 28″ (711mm)x18″ (457 mm)
Water depth 8-5/8″ (219 mm)
Outlet Ø 2-1/4″ (57 mm)
Faucet hole Ø 1-3/8″ (35 mm)
* Approximate measurements for comparison only.
Installation Notes
Install this product according to the installation guide.
2-3/4" (70 mm)
8" (203 mm)
9-1/2" (241 mm)
11" (279 mm)
25-1/4" (641 mm)
K-12781
30" (762 mm)
1-1/2" Outlet
7-1/2" (190 mm)
22"
(559 mm)
14"
(356 mm)
36"
(914 mm)
K-12787
8" (203 mm)
40-1/2"
(1029 mm)
GILFORDTM SCRUB-UP/PLASTER SINK
Page2of2
113841-4-
BD
