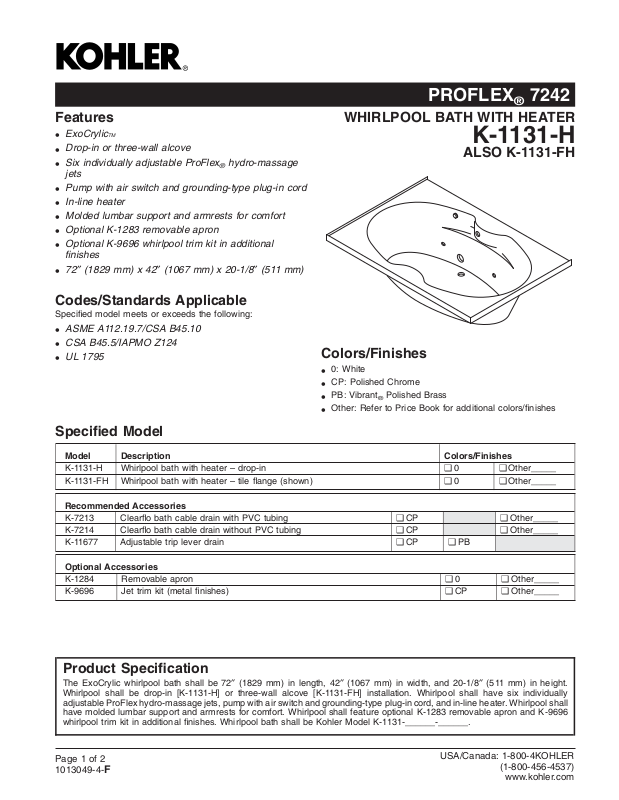

Page 1

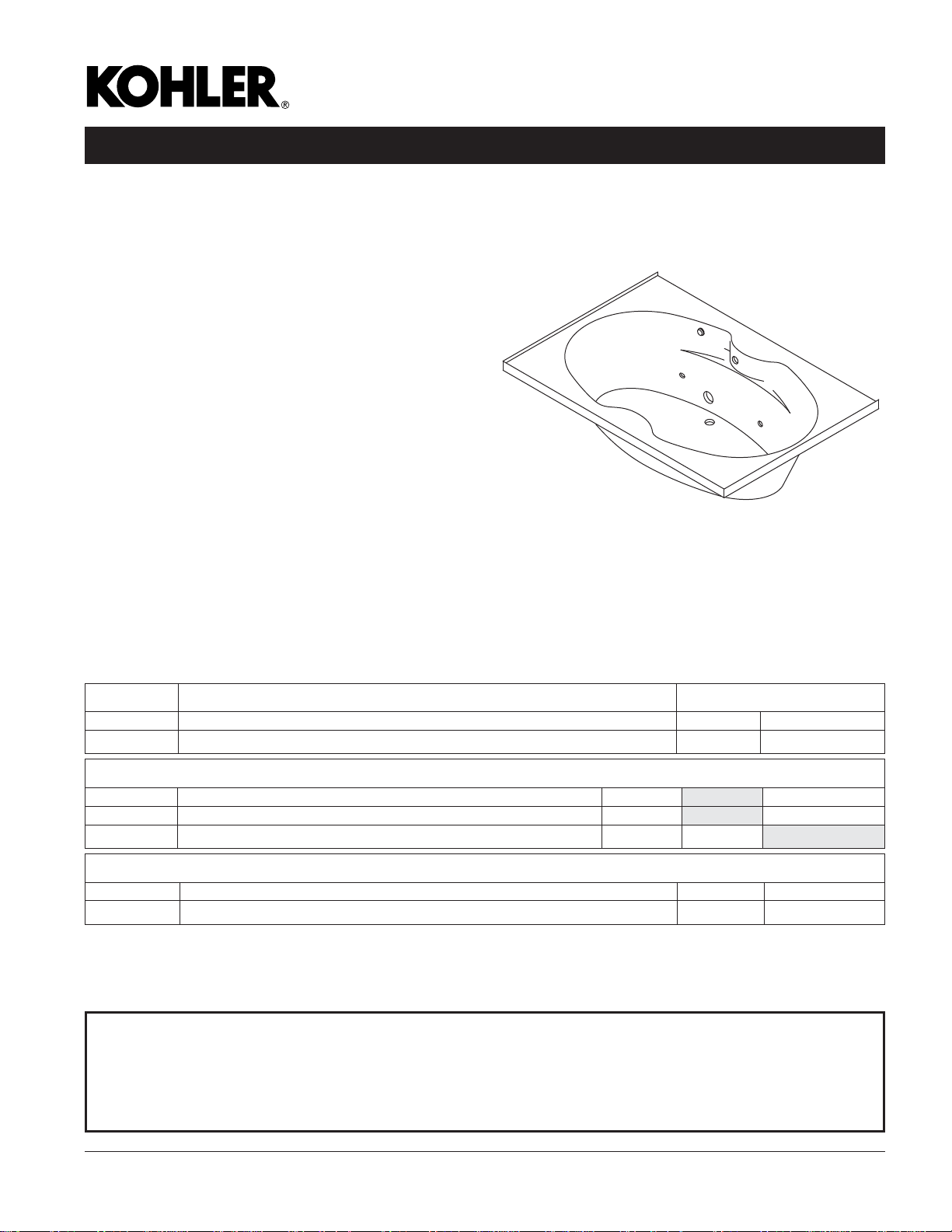

PROFLEX®7242
Features
ExoCrylic
•
Drop-in or three-wall alcove
•
Six individually adjustable ProFlex
•
jets
Pump with air switch and grounding-type plug-in cord
•
In-line heater
•
Molded lumbar support and armrests for comfort
•
Optional K-1283 removable apron
•
Optional K-9696 whirlpool trim kit in additional
•
finishes
72″ (1829 mm) x 42″ (1067 mm) x 20-1/8″ (511 mm)
•
TM
hydro-massage
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7/CSA B45.10
•
CSA B45.5/IAPMO Z124
•
UL 1795
•
WHIRLPOOL BATH WITH HEATER
K-1131-H
ALSO K-1131-FH
Colors/Finishes
0: White
•
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
K-1131-H Whirlpool bath with heater – drop-in ❑ 0 ❑ Other_____
K-1131-FH Whirlpool bath with heater – tile flange (shown) ❑ 0 ❑ Other_____
Recommended Accessories
K-7213 Clearflo bath cable drain with PVC tubing ❑ CP ❑ Other_____
K-7214 Clearflo bath cable drain without PVC tubing ❑ CP ❑ Other_____
K-11677 Adjustable trip lever drain ❑ CP ❑ PB
Optional Accessories
K-1284 Removable apron ❑ 0 ❑ Other_____
K-9696 Jet trim kit (metal finishes) ❑ CP ❑ Other_____
Product Specification
The ExoCrylic whirlpool bath shall be 72″ (1829 mm) in length, 42″ (1067 mm) in width, and 20-1/8″ (511 mm) in height.
Whirlpool shall be drop-in [K-1131-H] or three-wall alcove [K-1131-FH] installation. Whirlpool shall have six individually
adjustable ProFlex hydro-massage jets, pump with air switch and grounding-type plug-in cord, and in-line heater. Whirlpool shall
have molded lumbar support and armrests for comfort. Whirlpool shall feature optional K-1283 removable apron and K-9696
whirlpool trim kit in additional finishes. Whirlpool bath shall be Kohler Model K-1131-______-______.
Page 1 of 2
1013049-4-
USA/Canada: 1-800-4KOHLER
F
(1-800-456-4537)
www.kohler.com

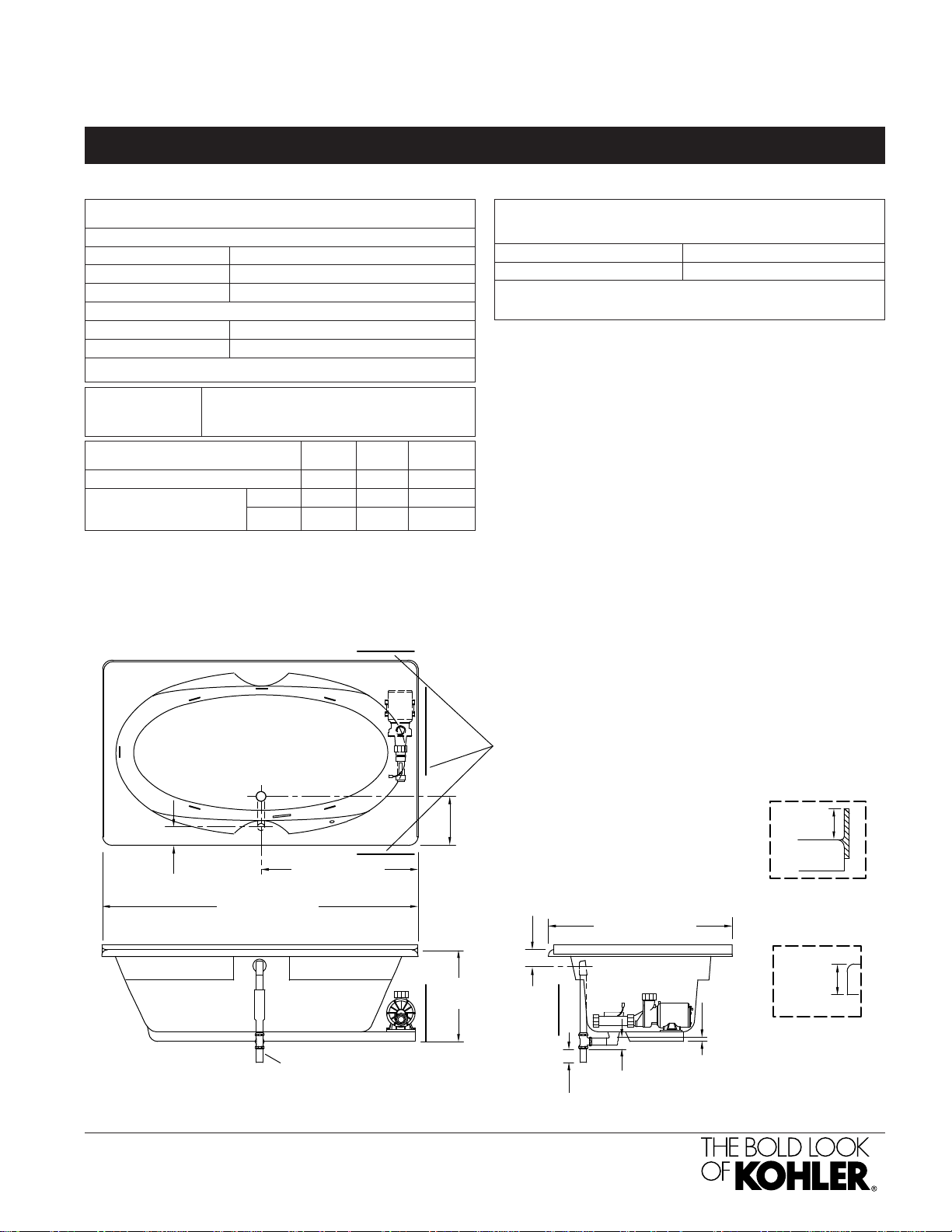

Page 2
PROFLEX®7242
Technical Information
Fixture*:
Bathing well:
Basin area, bottom 53″ (1346 mm) x 26″ (660 mm)
Basin area, top 65″ (1651 mm) x 34″ (864 mm)
Weight 75 lbs (34 kg)
To overflow:
Water depth 15″ (381 mm)
Capacity 78 gal (295.3 L)
* Approximate measurements for comparison only.
Drop-in cutout 70-1/2″ (1791 mm) x 40-1/2″
(1029 mm)
Pump: V Hz A
1-speed 120 60 7.5
Heater: kW V Hz A
1.5 120 60 12.5
Required Electrical Service
Two dedicated circuits required, each protected with
Class A Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 15 A, 60 Hz
Heater 120 V, 15 A, 60 Hz
Locate the outlets behind the whirlpool and within 24″
(610 mm) of the pump.
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
36 lbs/square foot (175 kg/square meter) loading.
The apron must be installed before the finished floor and wall
materials are installed.
No change in measurements if connected with drain
illustrated. (K-11677)
4-1/2"
(114 mm)
36" (914 mm)
72" (1829 mm)
1-1/2" Bath Drain
Product Diagram
PROFLEX®7242 WHIRLPOOL BATH WITH HEATER
Page2of2
1013049-4-
F
14"
(356 mm)
2-1/2"
(64 mm)
20-1/8"
(511 mm)
Pump/Control Access Front or End (If Apron Is Not Used)
20" (508 mm) W x 15" (381 mm) H
1-1/4"
(32 mm)
Tile Flange
Detail
42" (1067 mm)
1-1/2"
(38 mm)
1/4"
(6 mm)
Drop-In Rim
Detail
3"
2-7/8" (73 mm)
(76 mm)
