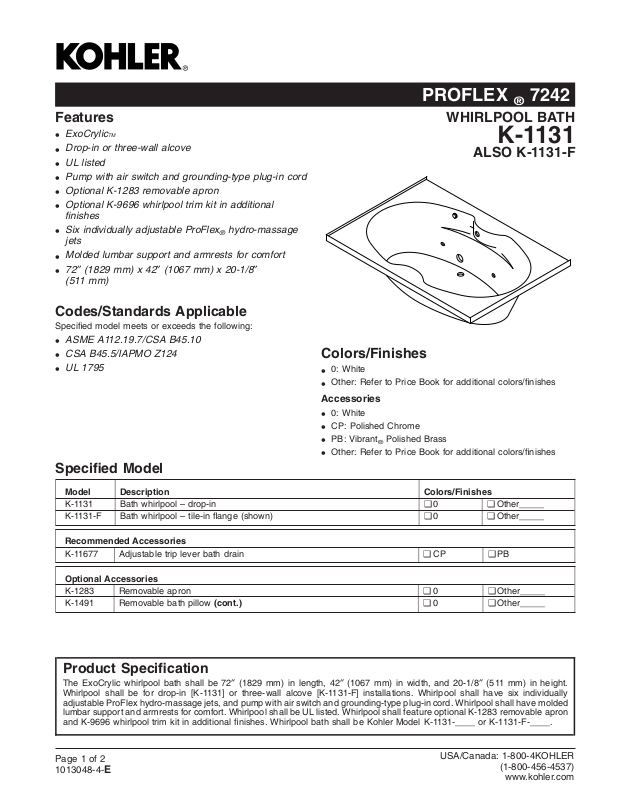

PROFLEX
7242
®
Features
ExoCrylic
•
Drop-in or three-wall alcove
•
UL listed
•
Pump with air switch and grounding-type plug-in cord
•
Optional K-1283 removable apron
•
Optional K-9696 whirlpool trim kit in additional
•
finishes
Six individually adjustable ProFlex
•
jets
Molded lumbar support and armrests for comfort
•
72″ (1829 mm) x 42″ (1067 mm) x 20-1/8″
•
(511 mm)
TM
hydro-massage
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7/CSA B45.10
•
CSA B45.5/IAPMO Z124
•
UL 1795
•
Specified Model
WHIRLPOOL BATH
K-1131
ALSO K-1131-F
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1131 Bath whirlpool – drop-in ❑ 0 ❑ Other_____
K-1131-F Bath whirlpool – tile-in flange (shown) ❑ 0 ❑ Other_____
Recommended Accessories
K-11677 Adjustable trip lever bath drain ❑ CP ❑ PB
Optional Accessories
K-1283 Removable apron ❑ 0 ❑ Other_____
K-1491 Removable bath pillow (cont.) ❑ 0 ❑ Other_____
Product Specification
The ExoCrylic whirlpool bath shall be 72″ (1829 mm) in length, 42″ (1067 mm) in width, and 20-1/8″ (511 mm) in height.
Whirlpool shall be for drop-in [K-1131] or three-wall alcove [K-1131-F] installations. Whirlpool shall have six individually
adjustable ProFlex hydro-massage jets, and pump with air switch and grounding-type plug-in cord. Whirlpool shall have molded
lumbar support and armrests for comfort. Whirlpool shall be UL listed. Whirlpool shall feature optional K-1283 removable apron
and K-9696 whirlpool trim kit in additional finishes. Whirlpool bath shall be Kohler Model K-1131-____ or K-1131-F-____.
Page 1 of 2
1013048-4-
E
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com

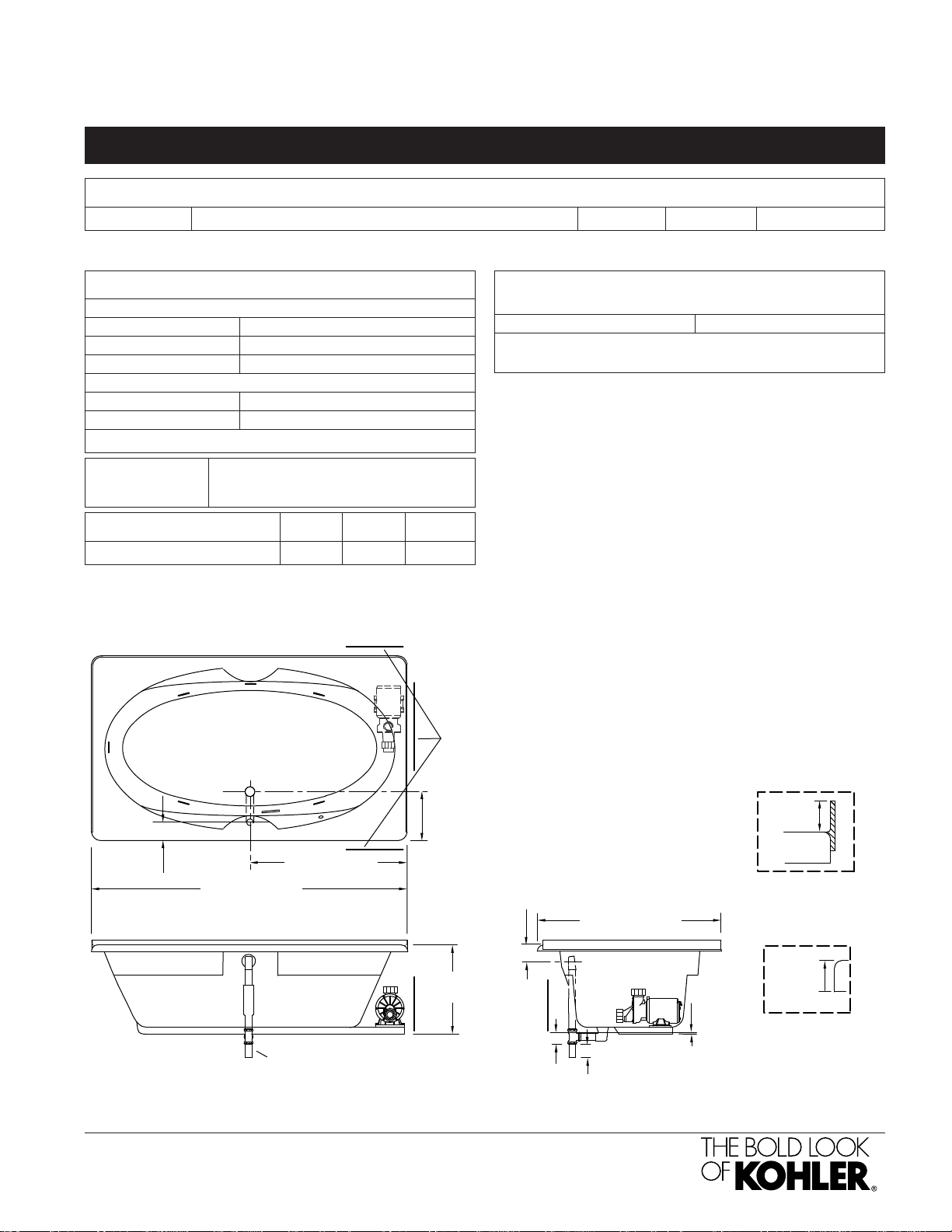

Page 2
PROFLEX
(cont.) Optional Accessories
K-9696 Jet trim kit (metal finishes) ❑ CP ❑ PB ❑ Other_____
7242
®
Technical Information
Fixture*:
Bathing well:
Basin area, bottom 53″ (1346 mm) x 26″ (660 mm)
Basin area, top 65″ (1651 mm) x 34″ (864 mm)
Weight 70 lbs (31.8 kg)
To overflow:
Water depth 15″ (381 mm)
Capacity 78 gal (295.3 L)
* Approximate measurements for comparison only.
Drop-in cutout 70-1/2″ (1791 mm) x 40-1/2″
(1029 mm)
Pump: V Hz A
1-speed 120 60 7.5
Required Electrical Service
Dedicated circuit protected with a Class A Ground-Fault
Circuit-Interrupter (GFCI) is requred:
Pump/control 120 V, 15 A, 60 Hz
Locate the outlet behind the whirlpool and within 24”
(610 mm) of the pump.
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
36 lbs/square foot (164 kg/square meter) floor loading.
The apron must be installed before the finished floor and wall
materials.
No change in measurements if connected with drain
illustrated. (K-11677)
Pump/Control Access Front or
End (If Apron is not Used) 20"
(508 mm) W x 15" (381 mm) H
4-1/2"
(114 mm)
72" (1829 mm)
PROFLEX®7242 WHIRLPOOL BATH
Page2of2
1013048-4-
E
36" (914 mm)
1-1/2" Bath Drain
14"
(356 mm)
2-1/2"
(64 mm)
20-1/8"
(511 mm)
2-7/8" (73 mm)
Product Diagram
42" (1067 mm)
3" (76 mm)
1/4"
(6 mm)
1-1/4"
(32 mm)
Tile Flange
Detail
1-1/2"
(38 mm)
Drop-in Rim
Detail
