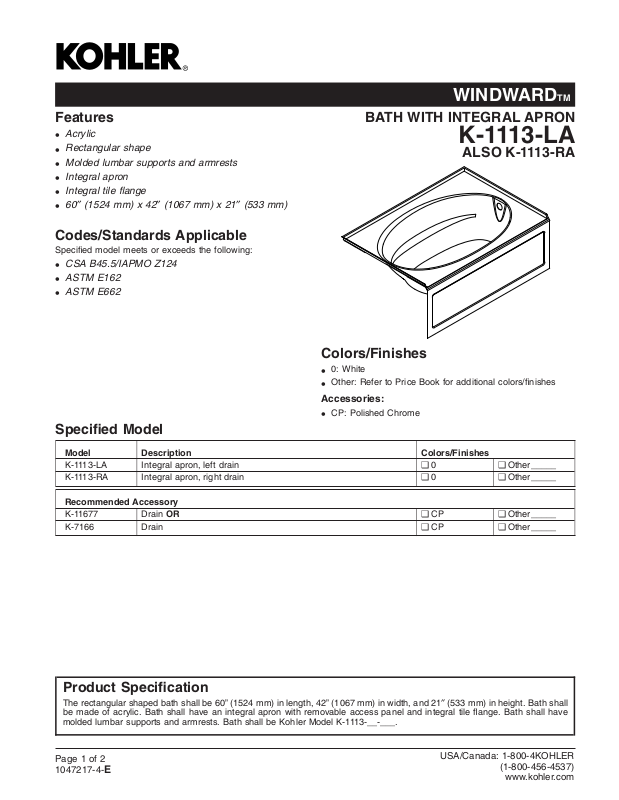

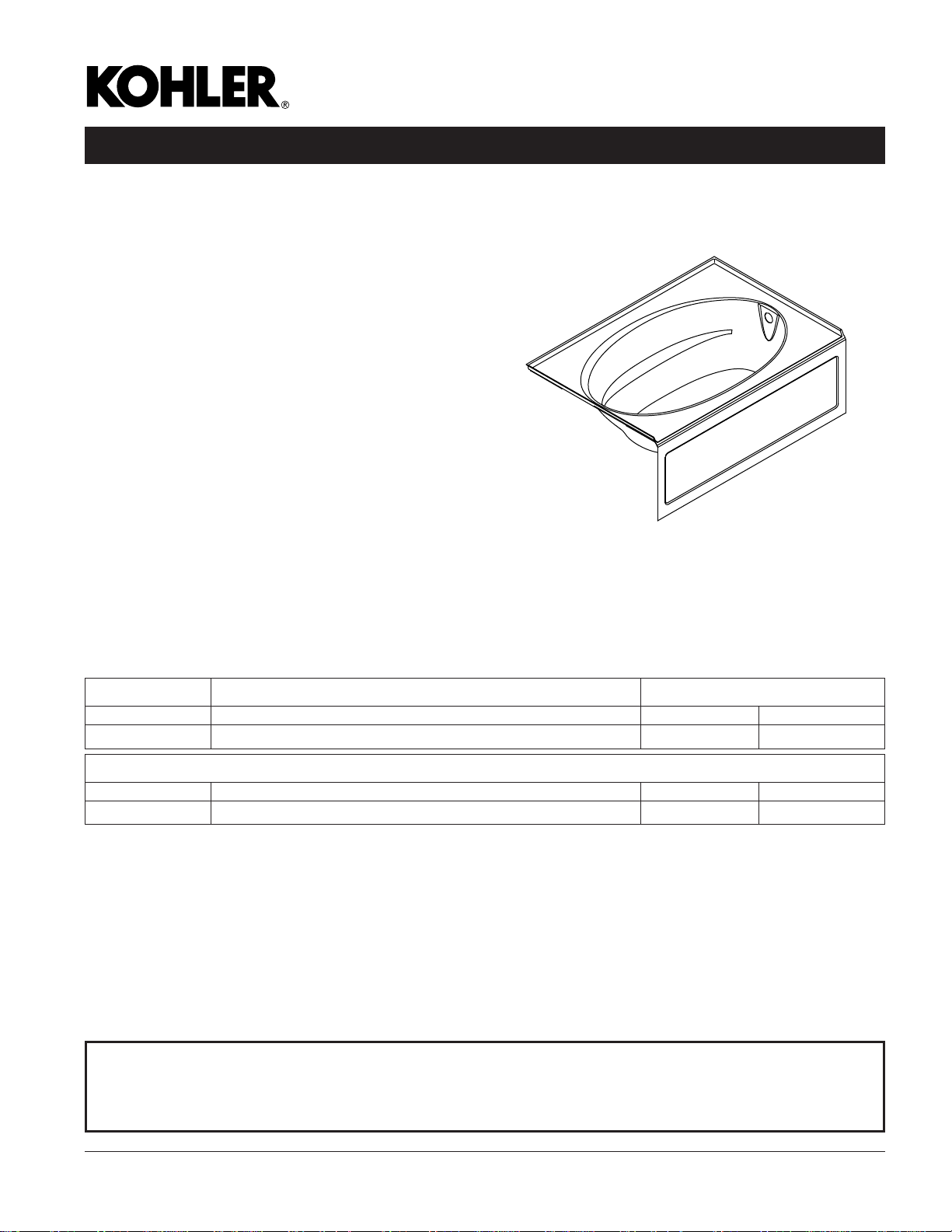

Page 1
WINDWARDTM
Features
Acrylic
•
Rectangular shape
•
Molded lumbar supports and armrests
•
Integral apron
•
Integral tile flange
•
60″ (1524 mm) x 42″ (1067 mm) x 21″ (533 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
ASTM E162
•
ASTM E662
•
Specified Model
BATH WITH INTEGRAL APRON
K-1113-LA
ALSO K-1113-RA
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories:
CP: Polished Chrome
•
Model Description Colors/Finishes
K-1113-LA Integral apron, left drain ❑ 0 ❑ Other_____
K-1113-RA Integral apron, right drain ❑ 0 ❑ Other_____
Recommended Accessory
K-11677 Drain OR ❑ CP ❑ Other_____
K-7166 Drain ❑ CP ❑ Other_____
Product Specification
The rectangular shaped bath shall be 60” (1524 mm) in length, 42” (1067 mm) in width, and 21″ (533 mm) in height. Bath shall
be made of acrylic. Bath shall have an integral apron with removable access panel and integral tile flange. Bath shall have
molded lumbar supports and armrests. Bath shall be Kohler Model K-1113-__-___.
Page 1 of 2
1047217-4-
USA/Canada: 1-800-4KOHLER
E
(1-800-456-4537)
www.kohler.com

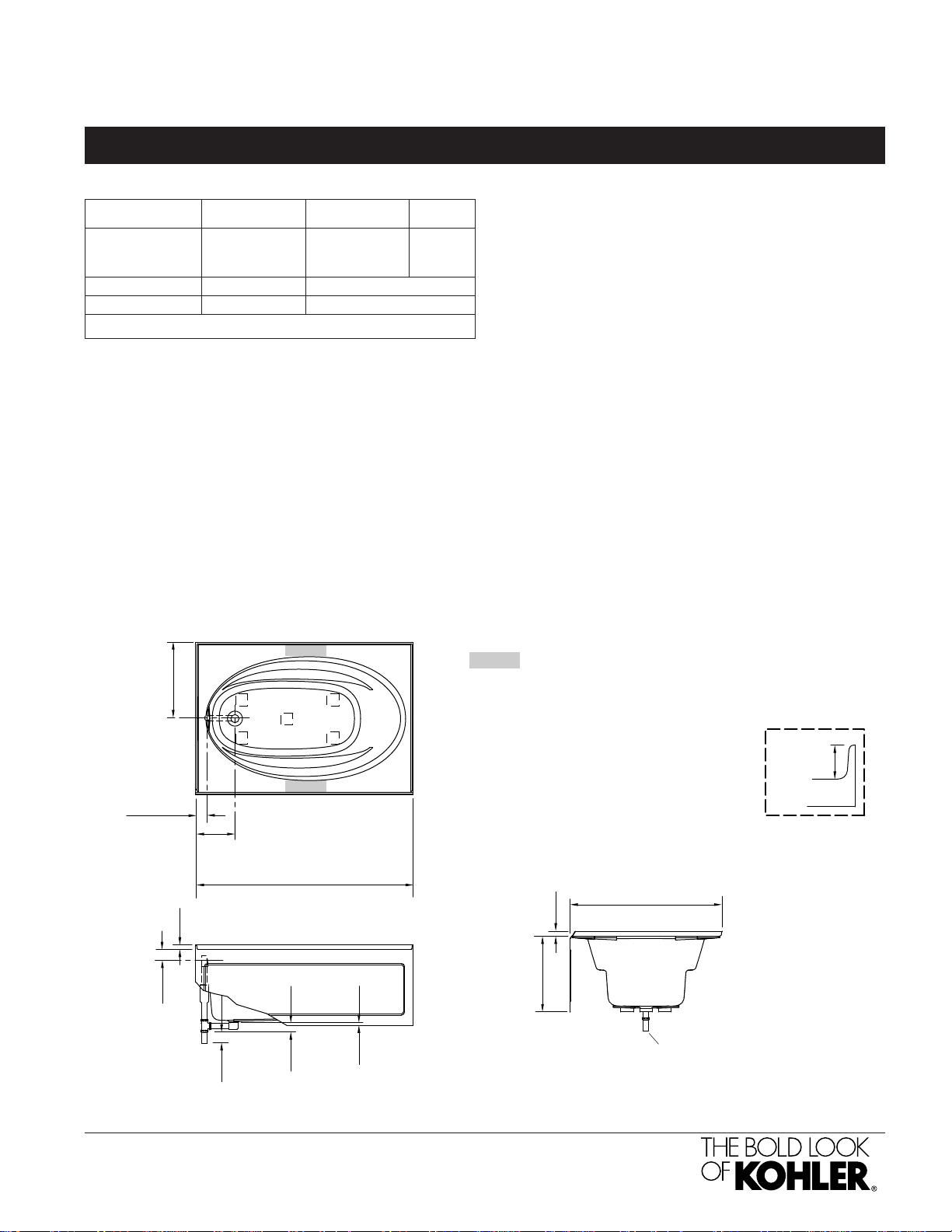

Page 2
WINDWARDTM
Technical Information
Fixture*: basin area top area weight
Bathing well 43″ (1092
mm) x 20-1/2″
(521 mm)
water depth capacity
To overflow 15″ (381 mm) 57 gal (215.9 L)
* Approximate measurements for comparison only.
53-1/2″ (1359
mm) x 32-1/8″
(816 mm)
80 lbs
(36 kg)
Installation Notes
Install this product according to the installation guide.
Floor support under the bath must provide for a minimum of
33 lbs/square foot (162 kg/square meter) loading.
If installing a rim-mount faucet, make sure there is no
interference with the drain overflow before drilling any holes.
Consult local and national codes for minimum air gap
requirements if installing a spout on the faucet deck.
No change in measurements if connected with
drain illustrated. (K-11677)
21"
(533 mm)
3-1/8"
(79 mm)
3-1/2"
(89 mm)
10-13/16"
(275 mm)
1-1/4"
(32 mm)
3"
(76 mm)
60" (1524 mm)
2-7/8"
(73 mm)
3/8"
(10 mm)
1-1/4"
(32 mm)
21"
(533 mm)
Recommended faucet area
1-1/4"
(32 mm)
Tile Flange
Detail
42" (1067 mm)
1-1/2" OD
WINDWARDTM BATH WITH INTEGRAL APRON
Page2of2
1047217-4-
E
Product Diagram
