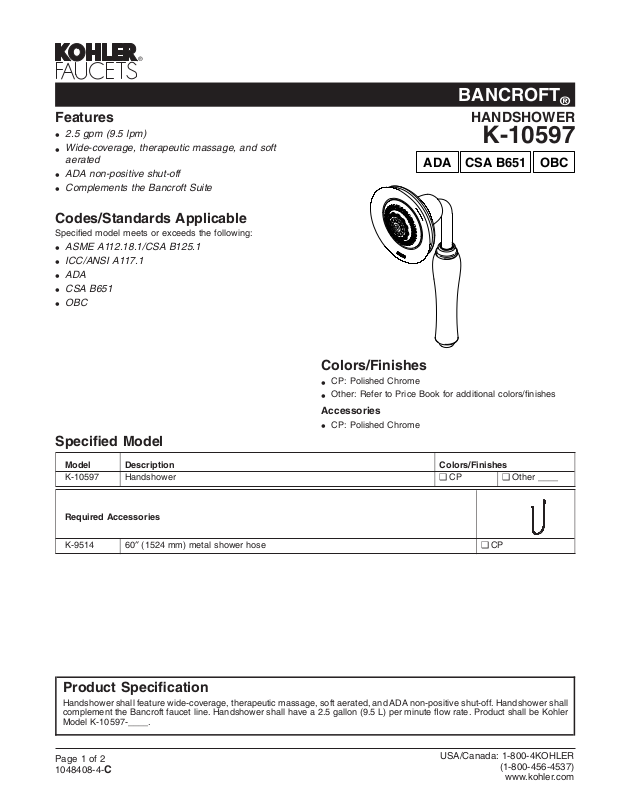

Page 1
BANCROFT
®
Features
2.5 gpm (9.5 lpm)
•
Wide-coverage, therapeutic massage, and soft
•
aerated
ADA non-positive shut-off
•
Complements the Bancroft Suite
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
ICC/ANSI A117.1
•
ADA
•
CSA B651
•
OBC
•
Specified Model
HANDSHOWER
K-10597
ADA CSA B651
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
OBC
Model Description Colors/Finishes
K-10597 Handshower ❑ CP ❑ Other ____
Required Accessories
K-9514 60″ (1524 mm) metal shower hose ❑ CP
Product Specification
Handshower shall feature wide-coverage, therapeutic massage, soft aerated, and ADA non-positive shut-off. Handshower shall
complement the Bancroft faucet line. Handshower shall have a 2.5 gallon (9.5 L) per minute flow rate. Product shall be Kohler
Model K-10597-____.
Page 1 of 2
1048408-4-
C
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
BANCROFT
®
Installation Notes
Install this product according to the installation guide.
Plumbing codes require an atmospheric vacuum breaker
(such as Kohler Model K-9660) be installed in-line with
handshowers. Please consult with local plumbing officials.
Reduced flow spray option provided non-positive shut-off
required by 2010 ADA standard for accessible design, section
607.6 Spray Unit and Water (Baths) and section 608.6 Spray
Unit and Water (Showers).
ADA, CSA B651, OBC compliant when installed to the specific
requirements of these regulations.
G1/2"-14
Hose Thread
3-15/16"
(100 mm)
4-3/4"
(121 mm)
11-15/16"
(303 mm)
BANCROFT®HANDSHOWER
Page2of2
1048408-4-
C
Product Diagram
