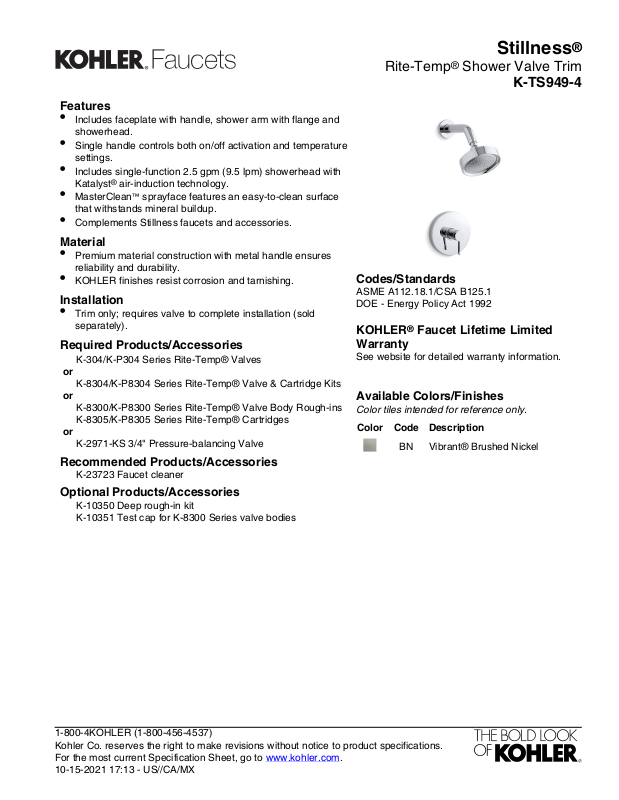

Page 1
Stillness
Features
•
Includes faceplate with handle, shower arm with flange and
showerhead.
•
Single handle controls both on/off activation and temperature
settings.
•
Includes single-function 2.5 gpm (9.5 lpm) showerhead with
Katalyst® air-induction technology.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
Complements Stillness faucets and accessories.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-304/K-P304 Series Rite-Temp® Valves
or
K-8304/K-P8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300/K-P8300 Series Rite-Temp® Valve Body Rough-ins
K-8305/K-P8305 Series Rite-Temp® Cartridges
or
K-2971-KS 3/4" Pressure-balancing Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-10350 Deep rough-in kit
K-10351 Test cap for K-8300 Series valve bodies
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
BN Vibrant® Brushed Nickel
®
Rite-Temp® Shower Valve Trim
K-TS949-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-15-2021 17:13 - US//CA/MX
Page 2
Stillness
2-7/8"
(73 mm)
Ø 6-3/8"
(162 mm)
9-1/2" (241 mm)
Typical
4-7/8"
(124 mm)
2-3/4"
(70 mm)
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
Finished Wall
K-8300 Valve
Series
K-2971-KS,
K-304 Valves
1/2"
NPT
3-13/16" (97 mm)
Technical Information
All product dimensions are nominal.
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Pressure: 80 psi (5.5 bar)
Notes
Install the product according to the installation
guide.
NOTICE: Risk of product damage. Long screws
for installing trim can damage the K-2971-KS
valve. Consult the trim installation guide to
verify if the thin wall installation kit (88526) is
needed.
®
Rite-Temp® Shower Valve Trim
K-TS949-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-15-2021 17:13 - US//CA/MX
