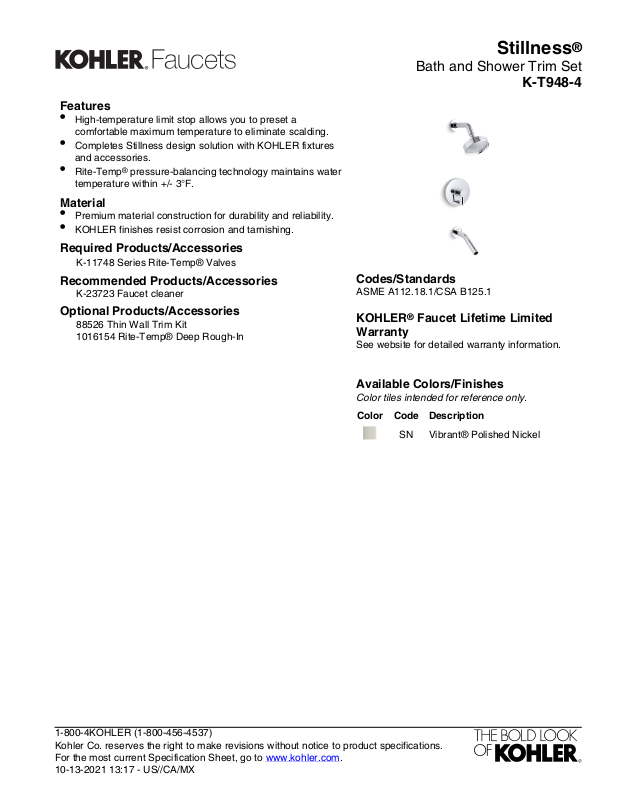

Page 1
Stillness
Features
•
High-temperature limit stop allows you to preset a
comfortable maximum temperature to eliminate scalding.
•
Completes Stillness design solution with KOHLER fixtures
and accessories.
•
Rite-Temp® pressure-balancing technology maintains water
temperature within +/- 3°F.
Material
•
Premium material construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
88526 Thin Wall Trim Kit
1016154 Rite-Temp® Deep Rough-In
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
SN Vibrant® Polished Nickel
®
Bath and Shower Trim Set
K-T948-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 13:17 - US//CA/MX
Page 2
Stillness
8-3/4"
Technical Information
All product dimensions are nominal.
Valve body: Cast brass
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Notes
Avoid cross-flow conditions. Do not install shutoff device on either valve outlet.
NOTICE: Risk of product damage. Long
screws, for installing trim, can damage the
K-2971-KS valve. Consult the trim installation
guide to verify if the thin wall installation kit
(88526) is needed.
Install this product according to the installation
guide
Cap shower outlet if deck-mount spout,
diverter, or handshower is connected to spout
outlet.
Install straight pipe or tube drop of 7 '' (178 mm)
to 18 '' (457 mm) with single elbow between
valve and wall-mount (457 mm) with single
elbow between valve and wall-mount spout.
®
Bath and Shower Trim Set
K-T948-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 13:17 - US//CA/MX
