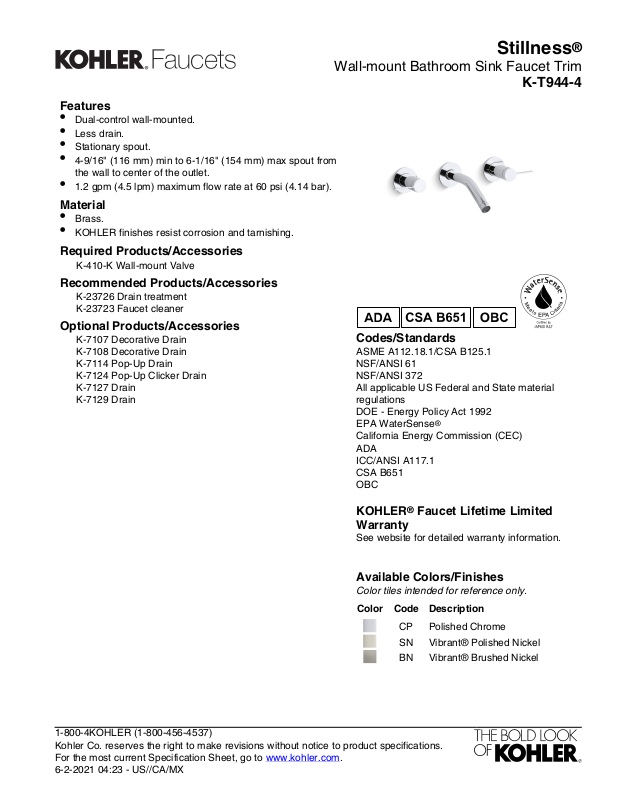

Page 1
Stillness
Features
•
Dual-control wall-mounted.
•
Less drain.
•
Stationary spout.
•
4-9/16" (116 mm) min to 6-1/16" (154 mm) max spout from
the wall to center of the outlet.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
Material
•
Brass.
•
KOHLER finishes resist corrosion and tarnishing.
Required Products/Accessories
K-410-K Wall-mount Valve
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Optional Products/Accessories
K-7107 Decorative Drain
K-7108 Decorative Drain
K-7114 Pop-Up Drain
K-7124 Pop-Up Clicker Drain
K-7127 Drain
K-7129 Drain
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
®
Wall-mount Bathroom Sink Faucet Trim
K-T944-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-2-2021 04:23 - US//CA/MX
Page 2
Stillness
4" (102 mm)
4-1/4"
(108 mm)
2-1/8"
(54 mm)
15/16"
(24 mm)
1-13/16"
(46 mm)
3-1/2"
(89 mm)
9" (229 mm)
Finished Wall
5/8" (16 mm)
5-1/2"
(140 mm)
8-1/2"
(216 mm)
1-1/2" (38 mm)
1-1/2" (38 mm)
5/8" OD
Hot Supply
Ø 2"
(51 mm)
5/8" OD
Cold Supply
3-1/8" (79 mm) Min
4-5/8" (117 mm) Max
4-9/16" (116 mm) Min
6-1/16" (154 mm) Max
1-3/8" (35 mm) Min
2-5/8" (67 mm) Max
2-1/4" (57 mm) Min
3-1/2" (89 mm) Max
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 1.2 gal/min (4.5 l/min)
Pressure: 60 psi (4.1 bar)
Spout:
Spout reach: 6-1/16" (154 mm)
Notes
Install this product according to the installation
guide.
A minimum of 4" (102 mm) must be maintained
between the bottom of the spout and the top of
the fixture rim.
Three 1-1/2" (38 mm) diameter holes are
required for the spout and handles.
ADA compliant for handles only.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
®
Wall-mount Bathroom Sink Faucet Trim
K-T944-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-2-2021 04:23 - US//CA/MX
