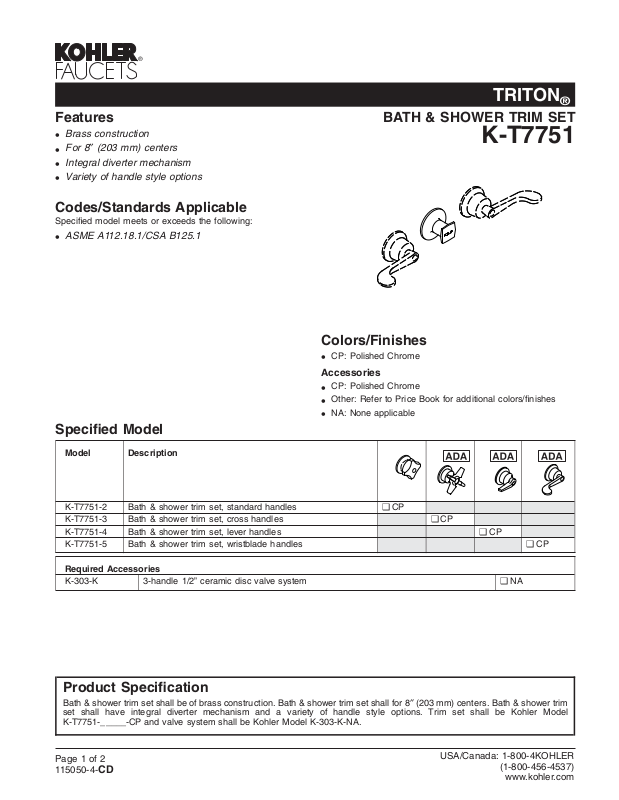

TRITON
®
Features
Brass construction
•
For 8″ (203 mm) centers
•
Integral diverter mechanism
•
Variety of handle style options
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Specified Model
BATH & SHOWER TRIM SET
K-T7751
Colors/Finishes
CP: Polished Chrome
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
NA: None applicable
•
Model Description
K-T7751-2 Bath & shower trim set, standard handles ❑ CP
K-T7751-3 Bath & shower trim set, cross handles ❑ CP
K-T7751-4 Bath & shower trim set, lever handles ❑ CP
K-T7751-5 Bath & shower trim set, wristblade handles ❑ CP
Required Accessories
K-303-K 3-handle 1/2” ceramic disc valve system ❑ NA
Product Specification
Bath & shower trim set shall be of brass construction. Bath & shower trim set shall for 8″ (203 mm) centers. Bath & shower trim
set shall have integral diverter mechanism and a variety of handle style options. Trim set shall be Kohler Model
K-T7751-_____-CP and valve system shall be Kohler Model K-303-K-NA.
Page 1 of 2
115050-4-
CD
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
TRITON
Optional Accessories
56373 Deep roughing-in kit for wall-mount and shower faucets. For all handles
56374 Elongated escutcheons for bath and shower faucets with stops ❑ CP ❑ Other_____
42020 Diverter ❑ CP ❑ Other_____
®
❑ CP ❑ Other_____
except bath and shower faucets with stops
Installation Notes
Install this product according to the installation guide.
2-1/4" (57 mm) Min
3" (76 mm) Max
1/2" Hot
1/2" NPT
4"
(102 mm)4"(102 mm)
1/2" Cold
1/2" NPT
Ø 2-1/2"(64 mm)
Ø 2-1/2"(64 mm)
Ø 2-1/2"(64 mm)
Ø 2-1/2"(64 mm)
2-7/8"
(73 mm)
Standard
2-7/8"
(73 mm)
Cross
2-7/16"
(62 mm)
Lever
4"
(102 mm)
Wristblade
TRITON®BATH & SHOWER TRIM SET
Page2of2
115050-4-
CD
