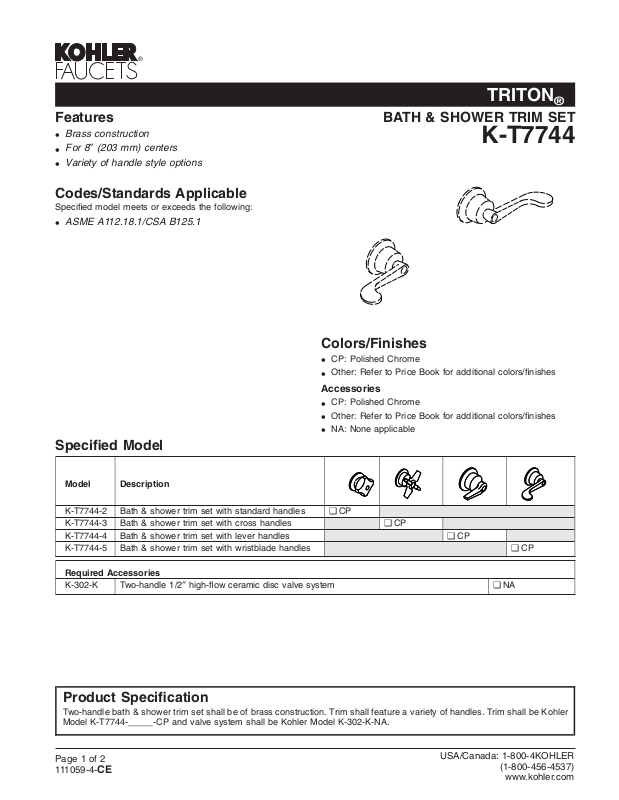

TRITON
®
Features
Brass construction
•
For 8″ (203 mm) centers
•
Variety of handle style options
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Specified Model
BATH & SHOWER TRIM SET
K-T7744
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
NA: None applicable
•
Model Description
K-T7744-2 Bath & shower trim set with standard handles ❑ CP
K-T7744-3 Bath & shower trim set with cross handles ❑ CP
K-T7744-4 Bath & shower trim set with lever handles ❑ CP
K-T7744-5 Bath & shower trim set with wristblade handles ❑ CP
Required Accessories
K-302-K Two-handle 1/2″ high-flow ceramic disc valve system ❑ NA
Product Specification
Two-handle bath & shower trim set shall be of brass construction. Trim shall feature a variety of handles. Trim shall be Kohler
Model K-T7744-_____-CP and valve system shall be Kohler Model K-302-K-NA.
Page 1 of 2
111059-4-
CE
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
TRITON
Optional Accessories Colors/Finishes
56373 Deep roughing-in kit for walll-mount and shower faucets ❑ CP ❑ Other
56374 Elongated escutcheons for bath and shower faucets with stops ❑ CP ❑ Other
®
Installation Notes
Install this product according to the installation guide.
Ø 2-1/2"
(64 mm)
Standard
Ø 2-1/2"
(64 mm)
Cross
TRITON®BATH & SHOWER TRIM SET
Page2of2
111059-4-
CE
2-7/8"
(73 mm)
2-7/8"
(73 mm)
Product Diagram
Ø 2-1/2"
(64 mm)
Ø 2-1/2"
(64 mm)
2-7/16"
(62 mm)
Lever
4"
(102 mm)
Wristblade
