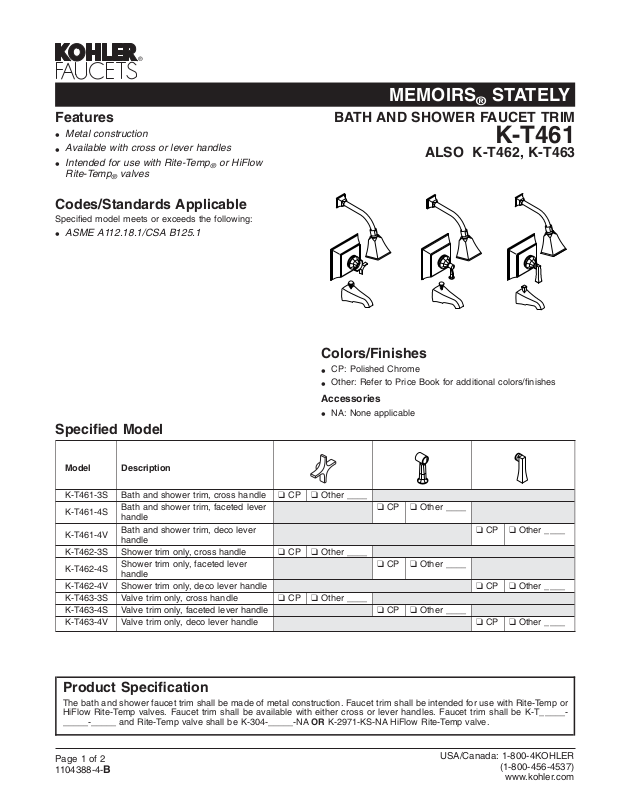

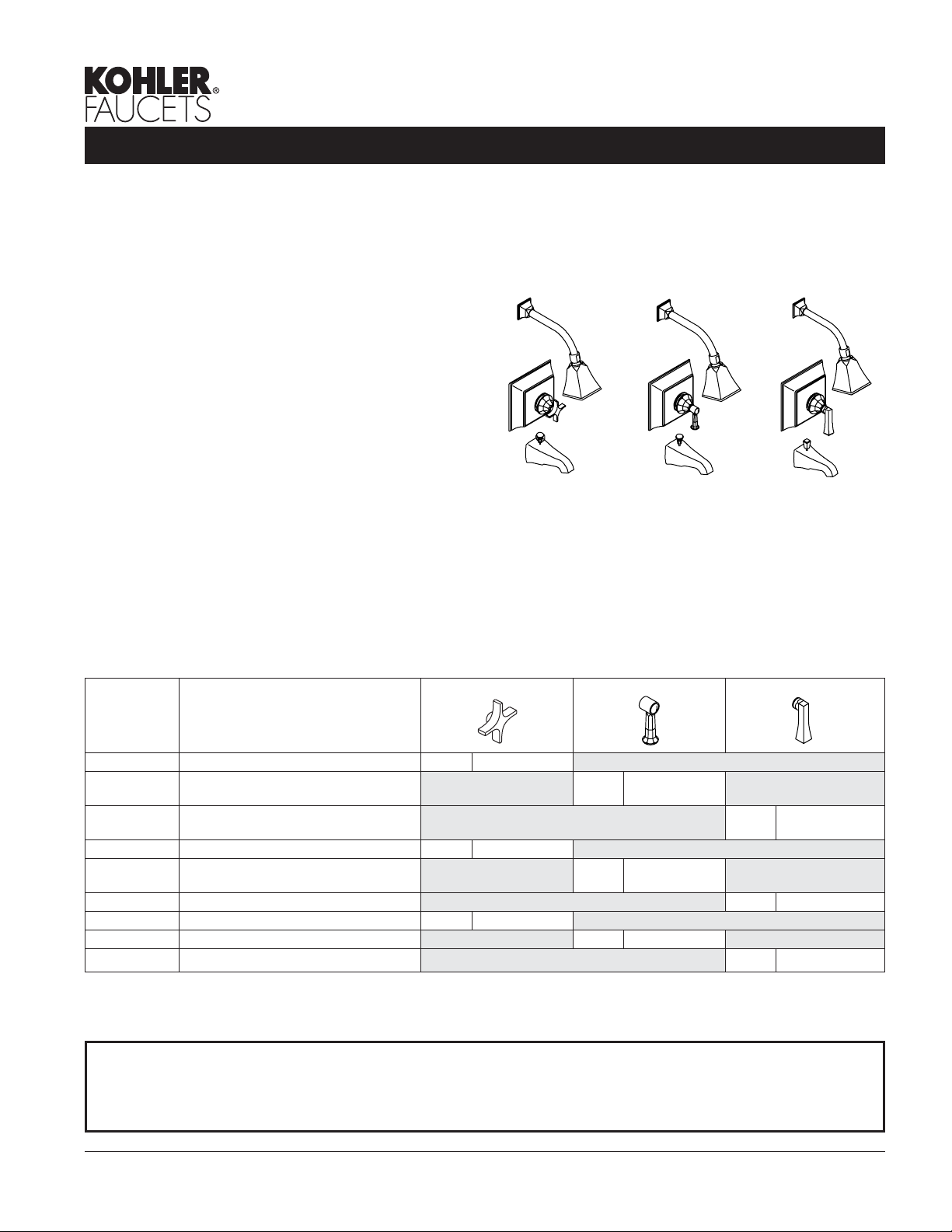

MEMOIRS®STATELY
Features
Metal construction
•
Available with cross or lever handles
•
Intended for use with Rite-Temp
•
Rite-Temp
valves
®
or HiFlow
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Specified Model
BATH AND SHOWER FAUCET TRIM
K-T461
ALSO K-T462, K-T463
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
NA: None applicable
•
Model Description
K-T461-3S Bath and shower trim, cross handle ❑ CP ❑ Other ____
K-T461-4S
K-T461-4V
K-T462-3S Shower trim only, cross handle ❑ CP ❑ Other ____
K-T462-4S
K-T462-4V Shower trim only, deco lever handle ❑ CP ❑ Other ____
K-T463-3S Valve trim only, cross handle ❑ CP ❑ Other ____
K-T463-4S Valve trim only, faceted lever handle ❑ CP ❑ Other ____
K-T463-4V Valve trim only, deco lever handle ❑ CP ❑ Other ____
Bath and shower trim, faceted lever
handle
Bath and shower trim, deco lever
handle
Shower trim only, faceted lever
handle
❑ CP ❑ Other ____
❑ CP ❑ Other ____
❑ CP ❑ Other ____
Product Specification
The bath and shower faucet trim shall be made of metal construction. Faucet trim shall be intended for use with Rite-Temp or
HiFlow Rite-Temp valves. Faucet trim shall be available with either cross or lever handles. Faucet trim shall be K-T__________-_____ and Rite-Temp valve shall be K-304-_____-NA OR K-2971-KS-NA HiFlow Rite-Temp valve.
Page 1 of 2
1104388-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
MEMOIRS®STATELY
Required Accessories
K-304-* Rite-Temp
K-2971-KS HiFlow Rite-Temp valve with stops ❑ NA
* For a complete listing of all the Rite-Temp valves, refer to the K-304-* Specification Sheet or Roughing-In Sheet.
Optional Accessories
88526 HiFlow Rite-Temp
1030932 Deep roughing-in kit for Rite-Temp
valve OR ❑ NA
®
thin wall installation kit ❑ CP ❑ Other ____
®
valve (all handles) ❑ NA
®
Installation Notes
Install this product according to the installation guide.
Install the Rite-Temp®valve according to the valve installation
guide.
NOTICE: Risk of product damage. Long screws, for
installing trim, can damage the K-2971-KS valve. Consult the
trim installation guide to verify if the thin wall installation kit
(88526) is needed.
Avoid cross-flow conditions. Do not install shut-off device on
either valve outlet.
Cap shower outlet if deck-mounted spout, diverter, or
handshower is connected to the spout outlet.
5-7/16"
1/2" NPT
7-9/16"
(19.2 cm)
(13.8 cm)
6" (15.2 cm)
Install straight pipe or tube drop of 7″ (17.8 cm) to 18″
(45.7 cm) with single elbow between valve and wall-mount
spout.
72" (182.9 cm)78" (198.1 cm)
to Floor (Typical)
2-7/8"
(7.3 cm)
Faceted Lever
3"
(7.6 cm)
1/2"-14 NPT
6" (15.2 cm)
Top of Rim

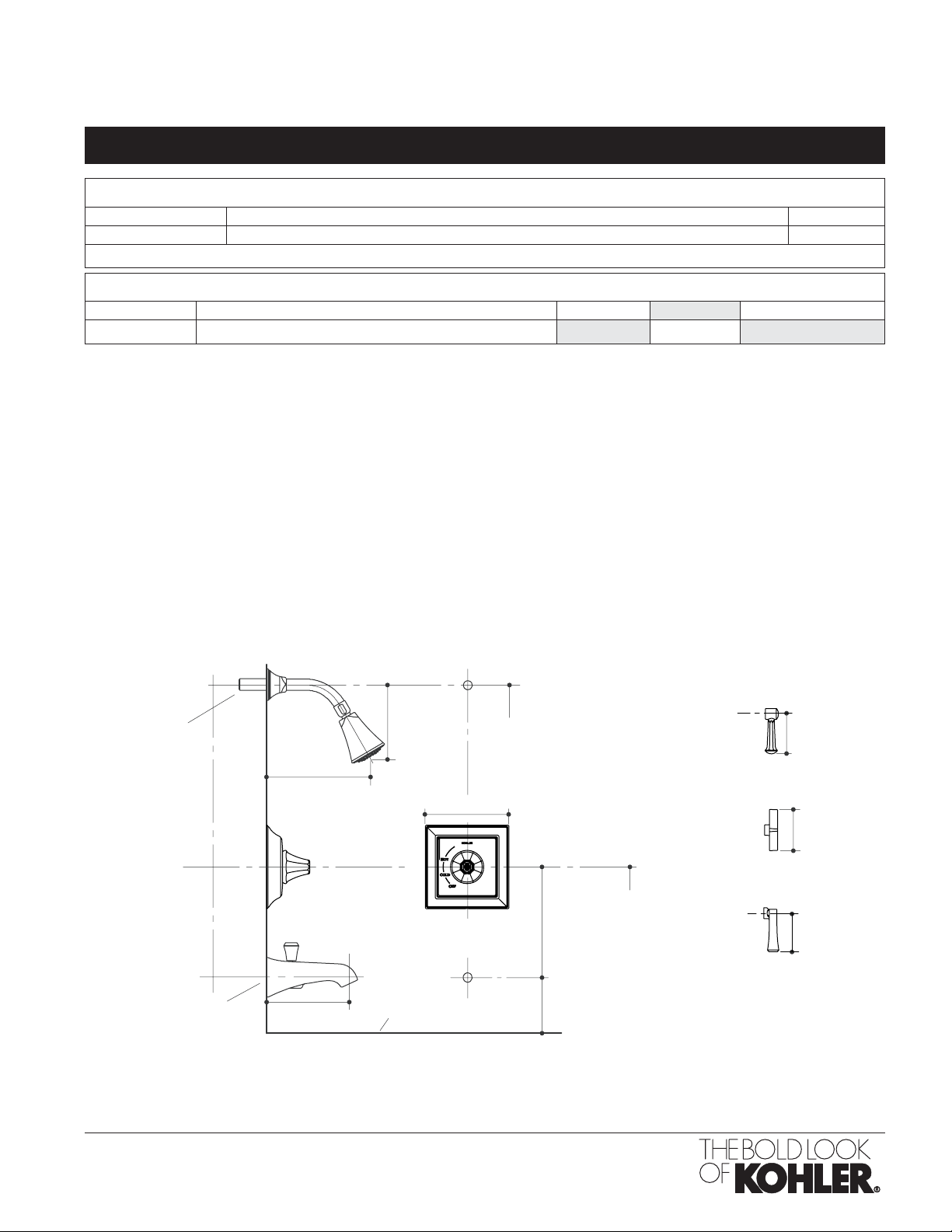

Product Diagram
MEMOIRS®STATELY BATH AND SHOWER FAUCET TRIM
Page2of2
1104388-4-
B
10"
(25.4 cm)
4" (10.2 cm)
48" (121.9 cm)
to Floor
(Shower Only)
Cross
2-3/4"
(7 cm)
Deco Lever
