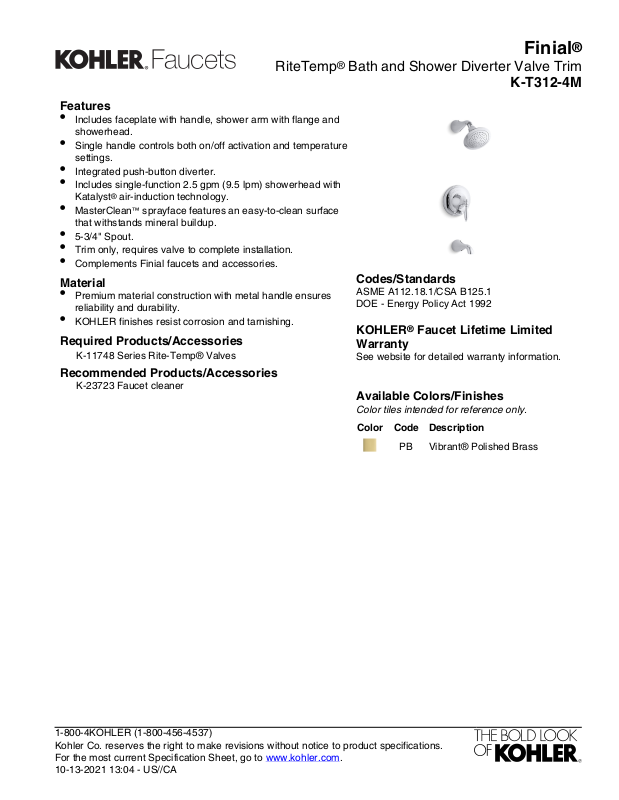

Page 1
Finial
Features
•
Includes faceplate with handle, shower arm with flange and
showerhead.
•
Single handle controls both on/off activation and temperature
settings.
•
Integrated push-button diverter.
•
Includes single-function 2.5 gpm (9.5 lpm) showerhead with
Katalyst® air-induction technology.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
5-3/4" Spout.
•
Trim only, requires valve to complete installation.
•
Complements Finial faucets and accessories.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
PB Vibrant® Polished Brass
®
RiteTemp® Bath and Shower Diverter Valve Trim
K-T312-4M
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 13:04 - US//CA
Page 2
Finial
9" (229 mm)
4"
(102 mm)
3-13/16"
(97 mm)
13/16"
(21 mm)
Ø 6-1/4"
(159 mm)
10"
(254 mm)
5-3/4" (146 mm)
1/2"-14 NPT
2-3/4"
(70 mm)
1/2"-14 NPT
Top of Bath
72" (1829 mm) 78" (1981 mm)
Floor (Typical)
4-9/16"
(116 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Notes
Install this product according to the installation
instructions.
Avoid cross-flow conditions. Do not install shutoff device on either valve outlet.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and wall-mount spout.
®
RiteTemp® Bath and Shower Diverter Valve Trim
K-T312-4M
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 13:04 - US//CA
