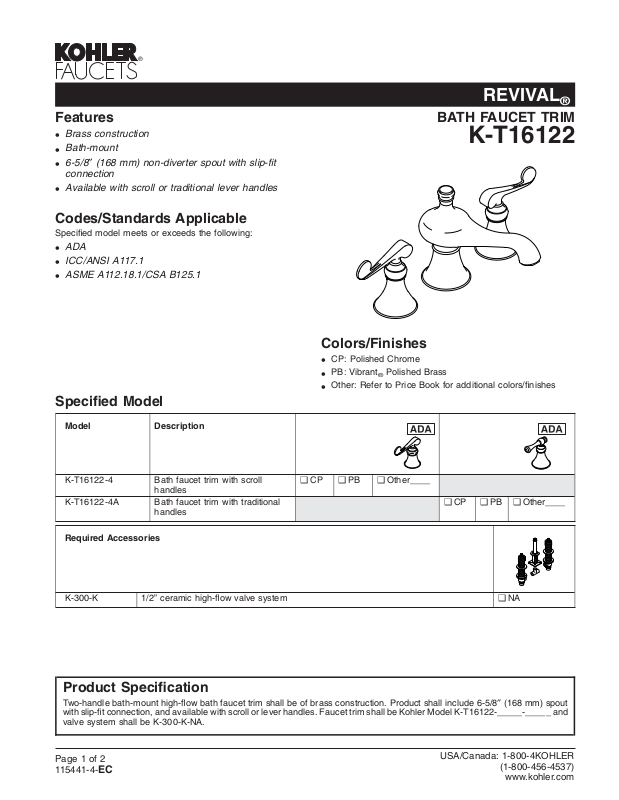

Page 1
REVIVAL
®
Features
Brass construction
•
Bath-mount
•
6-5/8″ (168 mm) non-diverter spout with slip-fit
•
connection
Available with scroll or traditional lever handles
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
ASME A112.18.1/CSA B125.1
•
Specified Model
BATH FAUCET TRIM
K-T16122
Colors/Finishes
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description
K-T16122-4 Bath faucet trim with scroll
handles
K-T16122-4A Bath faucet trim with traditional
handles
Required Accessories
K-300-K 1/2” ceramic high-flow valve system ❑ NA
❑ CP ❑ PB ❑ Other____
❑ CP ❑ PB ❑ Other____
Product Specification
Two-handle bath-mount high-flow bath faucet trim shall be of brass construction. Product shall include 6-5/8″ (168 mm) spout
with slip-fit connection, and available with scroll or lever handles. Faucet trim shall be Kohler Model K-T16122-_____-_____ and
valve system shall be K-300-K-NA.
Page 1 of 2
115441-4-
EC
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
REVIVAL
®
Installation Notes
Install this product according to the installation guide.
1-13/16"
(46 mm)
5-5/8"
(143 mm)
Ø 1-1/8"
6-1/4"
(159 mm)
Ø 7/8"
5/8" OD
(1/2" Nom)
Tubing
Ø 1-15/16"
1"
(25 mm)
1-1/8"
(29 mm)
4-3/8"
(111 mm)
1/2" (13 mm) Min2-1/8" (54 mm) Max
3"
(76 mm)
4-1/4"
(108 mm)
Ø 2-1/2"
(64 mm)
Scroll
Ø 2-5/8"
(67 mm)
1"
(25 mm)
Traditional
6-5/8"
(168 mm)
3"
(76 mm)
Ø 2-1/2"
(64 mm)
1-5/8"
(41 mm)
4"
(102 mm)
REVIVAL®BATH FAUCET TRIM
Page2of2
115441-4-
EC
