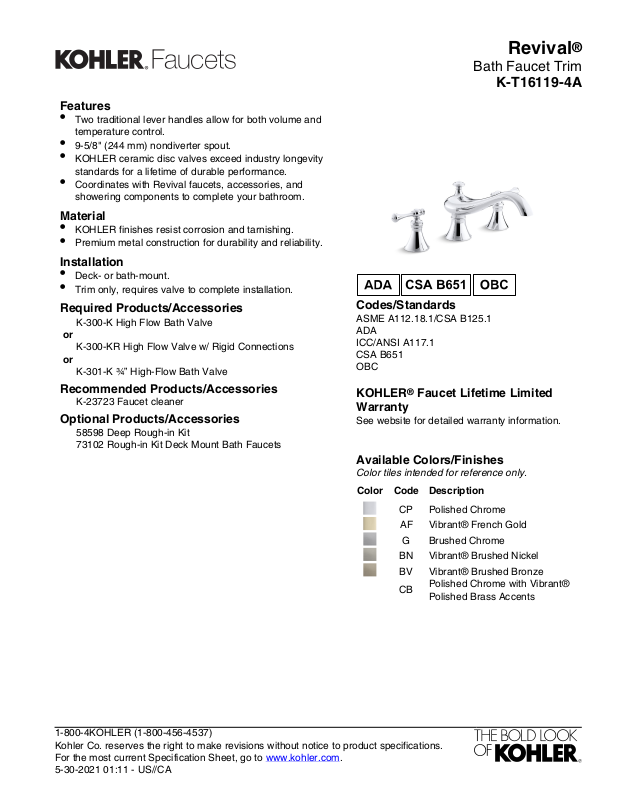

Page 1
Revival
Features
•
Two traditional lever handles allow for both volume and
temperature control.
•
9-5/8" (244 mm) nondiverter spout.
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
Coordinates with Revival faucets, accessories, and
showering components to complete your bathroom.
Material
•
KOHLER finishes resist corrosion and tarnishing.
•
Premium metal construction for durability and reliability.
Installation
•
Deck- or bath-mount.
•
Trim only, requires valve to complete installation.
Required Products/Accessories
K-300-K High Flow Bath Valve
or
K-300-KR High Flow Valve w/ Rigid Connections
or
K-301-K ¾” High-Flow Bath Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
58598 Deep Rough-in Kit
73102 Rough-in Kit Deck Mount Bath Faucets
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
AF Vibrant® French Gold
G Brushed Chrome
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
CB
Polished Chrome with Vibrant®
Polished Brass Accents
®
Bath Faucet Trim
K-T16119-4A
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 01:11 - US//CA
Page 2
Revival
4"
(102 mm)
Ø 1-1/8"
Rough Deck With Finish Material
(Tile) Installation
5/8" OD
(1/2" Nom.)
Tubing
Ø 7/8"
1/2" (13 mm) Min
2-1/8" (54 mm) Max
Rough Deck
1-1/4"
(32 mm)
Max Tile
4-3/4"
(121 mm)
1-3/4"
(44 mm)
9-5/8" (244 mm)
1-5/8"
(41 mm)
6-1/4"
(159 mm)
Ø 2-5/8"
(67 mm)
* Dimension allows +/- 1/4" (6 mm) adjustment
during handle trim installation
1"
(25 mm)
Ø 2-1/2"
(64 mm)
3"
(76 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
®
Bath Faucet Trim
K-T16119-4A
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 01:11 - US//CA
