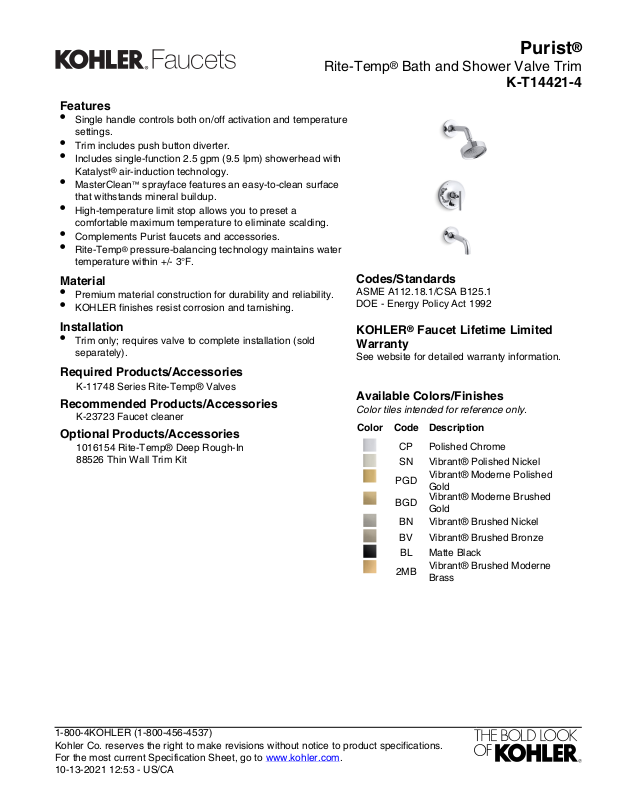

Page 1
Purist
Features
•
Single handle controls both on/off activation and temperature
settings.
•
Trim includes push button diverter.
•
Includes single-function 2.5 gpm (9.5 lpm) showerhead with
Katalyst® air-induction technology.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
High-temperature limit stop allows you to preset a
comfortable maximum temperature to eliminate scalding.
•
Complements Purist faucets and accessories.
•
Rite-Temp® pressure-balancing technology maintains water
temperature within +/- 3°F.
Material
•
Premium material construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
1016154 Rite-Temp® Deep Rough-In
88526 Thin Wall Trim Kit
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
PGD
Vibrant® Moderne Polished
Gold
BGD
Vibrant® Moderne Brushed
Gold
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
BL Matte Black
2MB
Vibrant® Brushed Moderne
Brass
®
Rite-Temp® Bath and Shower Valve Trim
K-T14421-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 12:53 - US/CA
Page 2
Purist
Ø 6-1/2"
(165 mm)
7-3/4" (197 mm)
10-5/8"
(270 mm)
1/2"-14
NPT
5-5/16"
(135 mm)
72" (1829 mm)
78" (1981 mm)
to Floor (Typical)
10" (254 mm)
to Spout
(Bath Only)
5-1/2"
(140 mm)
to Top of Rim
4-7/16"
(113 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
2.5 gal/min (9.5 l/min)
Pressure: 80 psi (5.5 bar)
Notes
Install this product according to the installation
guide.
Avoid cross-flow conditions. Do not install shutoff device on either valve outlet.
Cap the shower outlet if deck-mount spout,
diverter, or handshower is connected to the
spout outlet.
®
Rite-Temp® Bath and Shower Valve Trim
K-T14421-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 12:53 - US/CA
