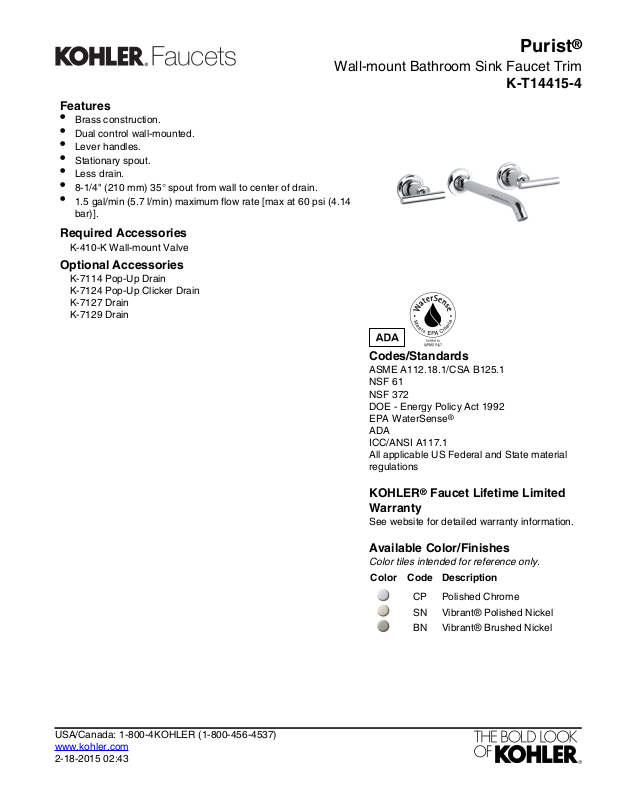

Page 1
Features
•
Brass construction.
•
Dual control wall-mounted.
•
Lever handles.
•
Stationary spout.
•
Less drain.
•
8-1/4" (210 mm) 35° spout from wall to center of drain.
•
1.5 gal/min (5.7 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Required Accessories
K-410-K Wall-mount Valve
Optional Accessories
K-7114 Pop-Up Drain
K-7124 Pop-Up Clicker Drain
K-7127 Drain
K-7129 Drain
Purist
®
Wall-mount Bathroom Sink Faucet Trim
K-T14415-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Brushed NickelBN
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:43
Page 2
4-3/8" (111 mm) Max
Purist
®
Wall-mount Bathroom Sink Faucet Trim
K-T14415-4

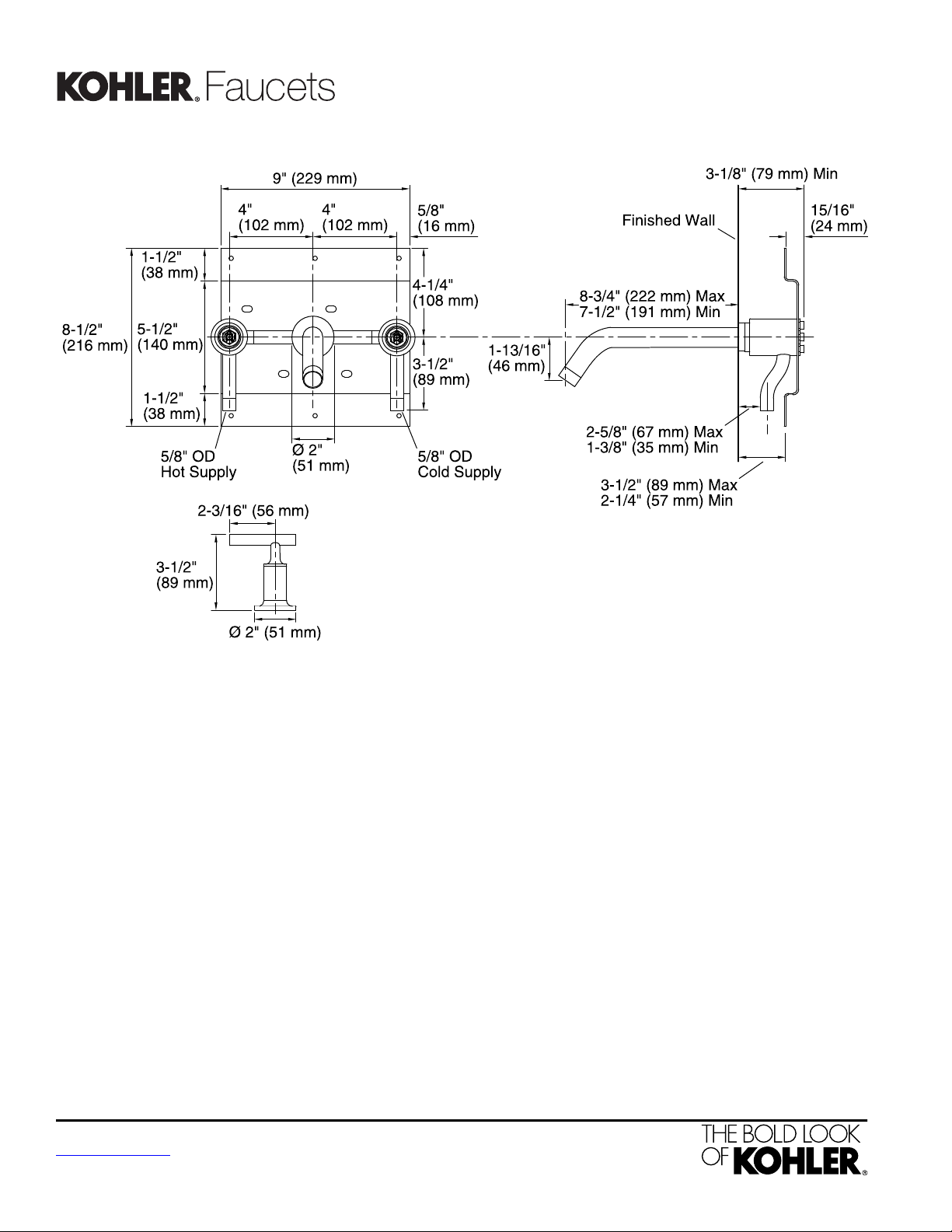

Technical Information
All product dimensions are nominal.
8-3/4" (222 mm)Spout reach:
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
The distance between the bottom of spout and
top of the fixture rim must not be less than 1-1/2"
(38 mm) and not greater than 6" (152 mm).
Three 1-1/2" (38 mm) diameter cutout holes are
required for spout and handles.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:43
