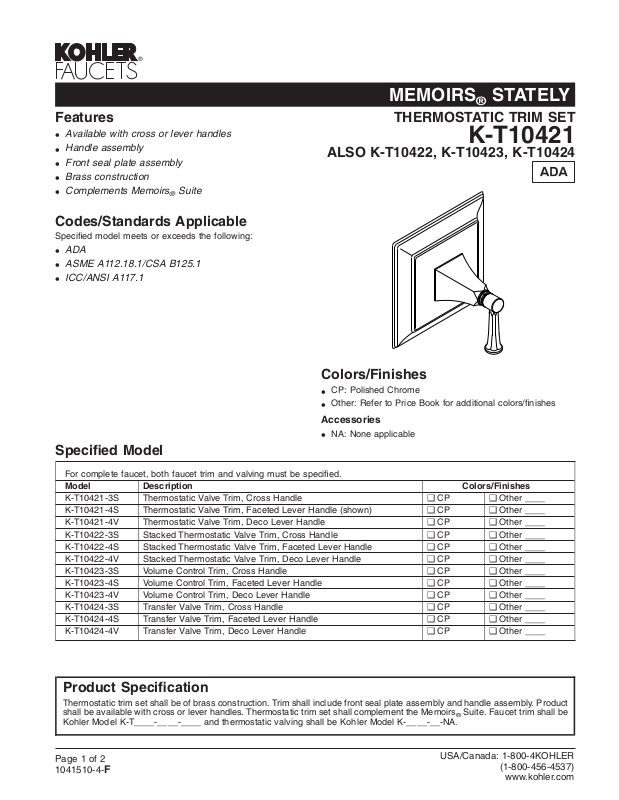

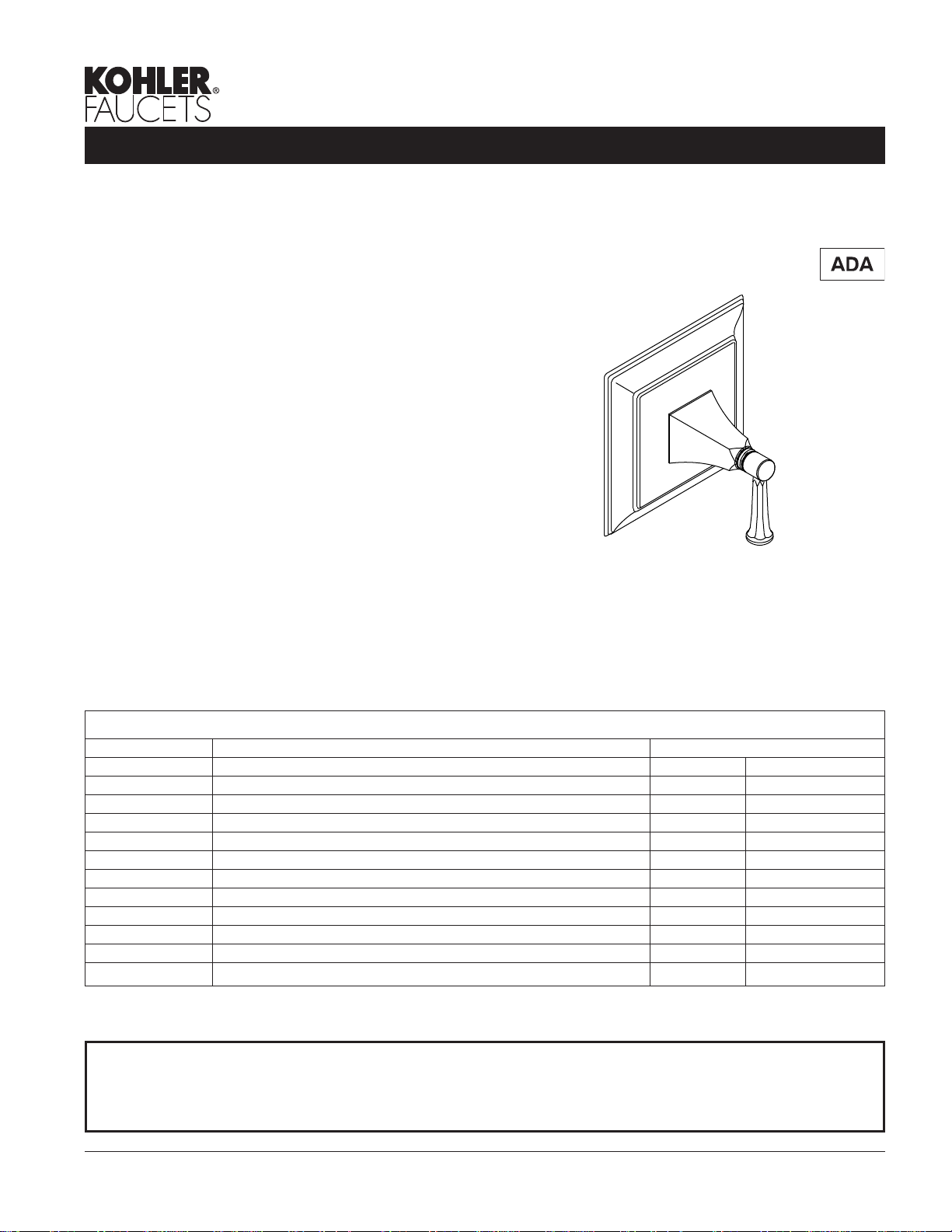

MEMOIRS®STATELY
Features
Available with cross or lever handles
•
Handle assembly
•
Front seal plate assembly
•
Brass construction
•
Complements Memoirs
•
®
Suite
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ASME A112.18.1/CSA B125.1
•
ICC/ANSI A117.1
•
Specified Model
THERMOSTATIC TRIM SET
K-T10421
ALSO K-T10422, K-T10423, K-T10424
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
NA: None applicable
•
For complete faucet, both faucet trim and valving must be specified.
Model Description Colors/Finishes
K-T10421-3S Thermostatic Valve Trim, Cross Handle ❑ CP ❑ Other ____
K-T10421-4S Thermostatic Valve Trim, Faceted Lever Handle (shown) ❑ CP ❑ Other ____
K-T10421-4V Thermostatic Valve Trim, Deco Lever Handle ❑ CP ❑ Other ____
K-T10422-3S Stacked Thermostatic Valve Trim, Cross Handle ❑ CP ❑ Other ____
K-T10422-4S Stacked Thermostatic Valve Trim, Faceted Lever Handle ❑ CP ❑ Other ____
K-T10422-4V Stacked Thermostatic Valve Trim, Deco Lever Handle ❑ CP ❑ Other ____
K-T10423-3S Volume Control Trim, Cross Handle ❑ CP ❑ Other ____
K-T10423-4S Volume Control Trim, Faceted Lever Handle ❑ CP ❑ Other ____
K-T10423-4V Volume Control Trim, Deco Lever Handle ❑ CP ❑ Other ____
K-T10424-3S Transfer Valve Trim, Cross Handle ❑ CP ❑ Other ____
K-T10424-4S Transfer Valve Trim, Faceted Lever Handle ❑ CP ❑ Other ____
K-T10424-4V Transfer Valve Trim, Deco Lever Handle ❑ CP ❑ Other ____
Product Specification
Thermostatic trim set shall be of brass construction. Trim shall include front seal plate assembly and handle assembly. Product
shall be available with cross or lever handles. Thermostatic trim set shall complement the Memoirs
Kohler Model K-T____-____-____ and thermostatic valving shall be Kohler Model K-____-__-NA.
Page 1 of 2
1041510-4-
F
Suite. Faucet trim shall be
®
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
MEMOIRS®STATELY
Required Accessories
K-2972-KS (replaces K-679-KS) 1/2″ Thermostatic valve ❑ NA
K-2973-KS (replaces K-680-KS) 1/2″ Stacked thermostatic valve ❑ NA
K-2974-K (replaces K-681-K) 1/2″ Volume control ❑ NA
K-2975-KS (replaces K-669-KS) 3/4″ Thermostatic valve ❑ NA
K-2976-KS (replaces K-670-KS) 3/4″ Stacked thermostatic valve ❑ NA
K-2977-K (replaces K-671-K) 3/4″ Volume control ❑ NA
K-728-K 3/4″ Transfer valve ❑ NA
K-737-K 3/4″ Diverter valve ❑ NA
Installation Notes
Install this product according to the installation guide.
C
L of Valve Inlet
3-3/4" (95 mm)
Thick Wall
2-7/16" (62 mm)
Thin Wall
C
L of Valve Inlet
3-3/4" (95 mm)
Thick Wall
2-7/16" (62 mm)
Thin Wall
K-T10421
3-1/8"
(80 mm)
6" (152 mm)
6" (152 mm)
8-3/4"
(222 mm)
2-7/8"
(73 mm)
Lever
C
3-3/4" (95 mm)
Thick Wall
2-7/16" (62 mm)
Thin Wall
2-3/4"
(70 mm)
Lever
L of Valve Inlet
3"
(76 mm)
Cross
4-1/2"
(114 mm)
K-T10422

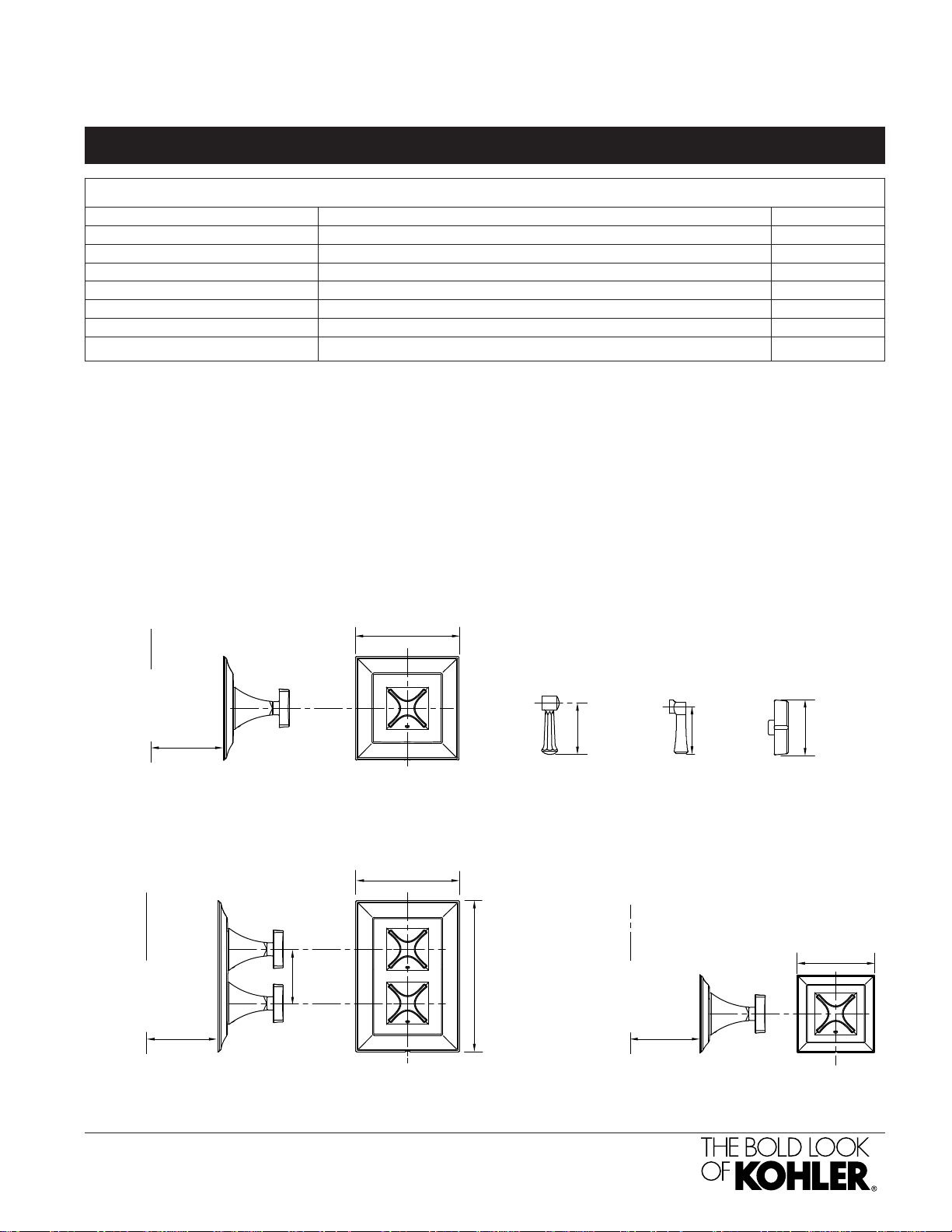

Product Diagram
MEMOIRS®STATELY THERMOSTATIC TRIM SET
Page2of2
1041510-4-
F
K-T10423/24
