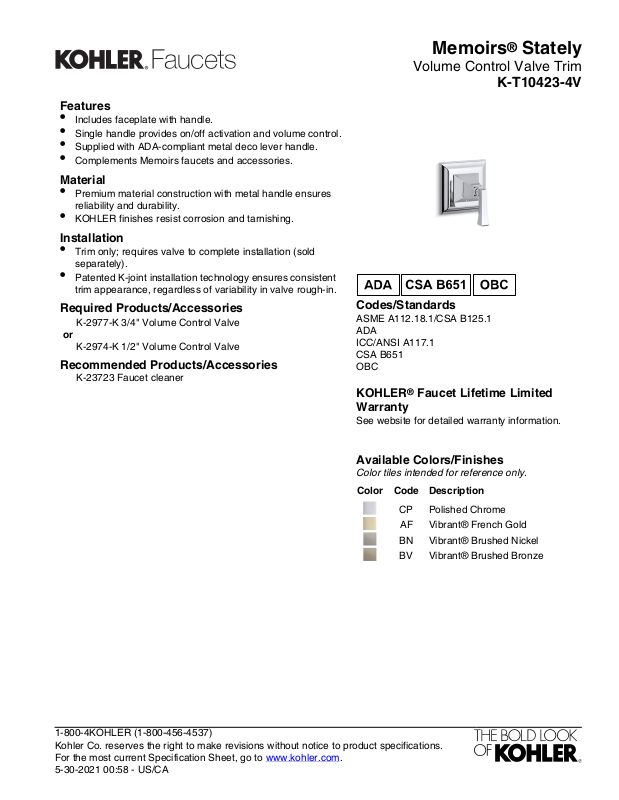

Page 1
Memoirs® Stately
Features
•
Includes faceplate with handle.
•
Single handle provides on/off activation and volume control.
•
Supplied with ADA-compliant metal deco lever handle.
•
Complements Memoirs faucets and accessories.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
•
Patented K-joint installation technology ensures consistent
trim appearance, regardless of variability in valve rough-in.
Required Products/Accessories
K-2977-K 3/4" Volume Control Valve
or
K-2974-K 1/2" Volume Control Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
AF Vibrant® French Gold
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
Volume Control Valve Trim
K-T10423-4V
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 00:58 - US/CA
Page 2
Memoirs® Stately
4-1/2"
(114 mm)
2-3/4"
(70 mm)
3-15/16" (100 mm) 4-1/2" (114 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
Volume Control Valve Trim
K-T10423-4V
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 00:58 - US/CA
