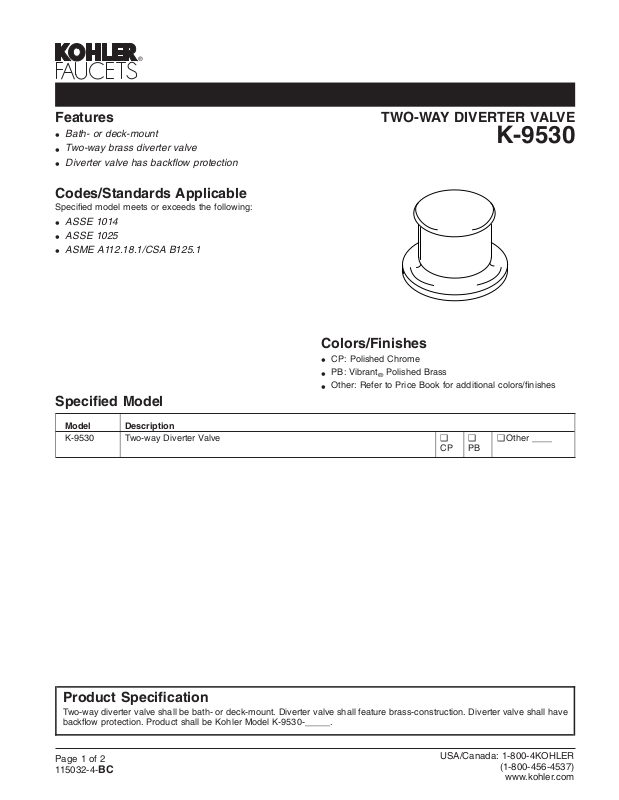

Features
Bath- or deck-mount
•
Two-way brass diverter valve
•
Diverter valve has backflow protection
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASSE 1014
•
ASSE 1025
•
ASME A112.18.1/CSA B125.1
•
Specified Model
TWO-WAY DIVERTER VALVE
K-9530
Colors/Finishes
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description
K-9530 Two-way Diverter Valve ❑
CP❑PB
❑ Other ____
Product Specification
Two-way diverter valve shall be bath- or deck-mount. Diverter valve shall feature brass-construction. Diverter valve shall have
backflow protection. Product shall be Kohler Model K-9530-_____.
Page 1 of 2
115032-4-
BC
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
Installation Notes
Install this product according to the installation guide.
Diverter valve has backflow protection.
1/2" Nominal Sweat (5/8" OD)
3/4" NPSM Thread Outlet for Optional Bath
TWO-WAY DIVERTER VALVE
Page2of2
115032-4-
BC
Ø 1-1/2" (38 mm)
Hole for Diverter
3"
(76 mm)
Ø 1-5/16"
(33 mm)

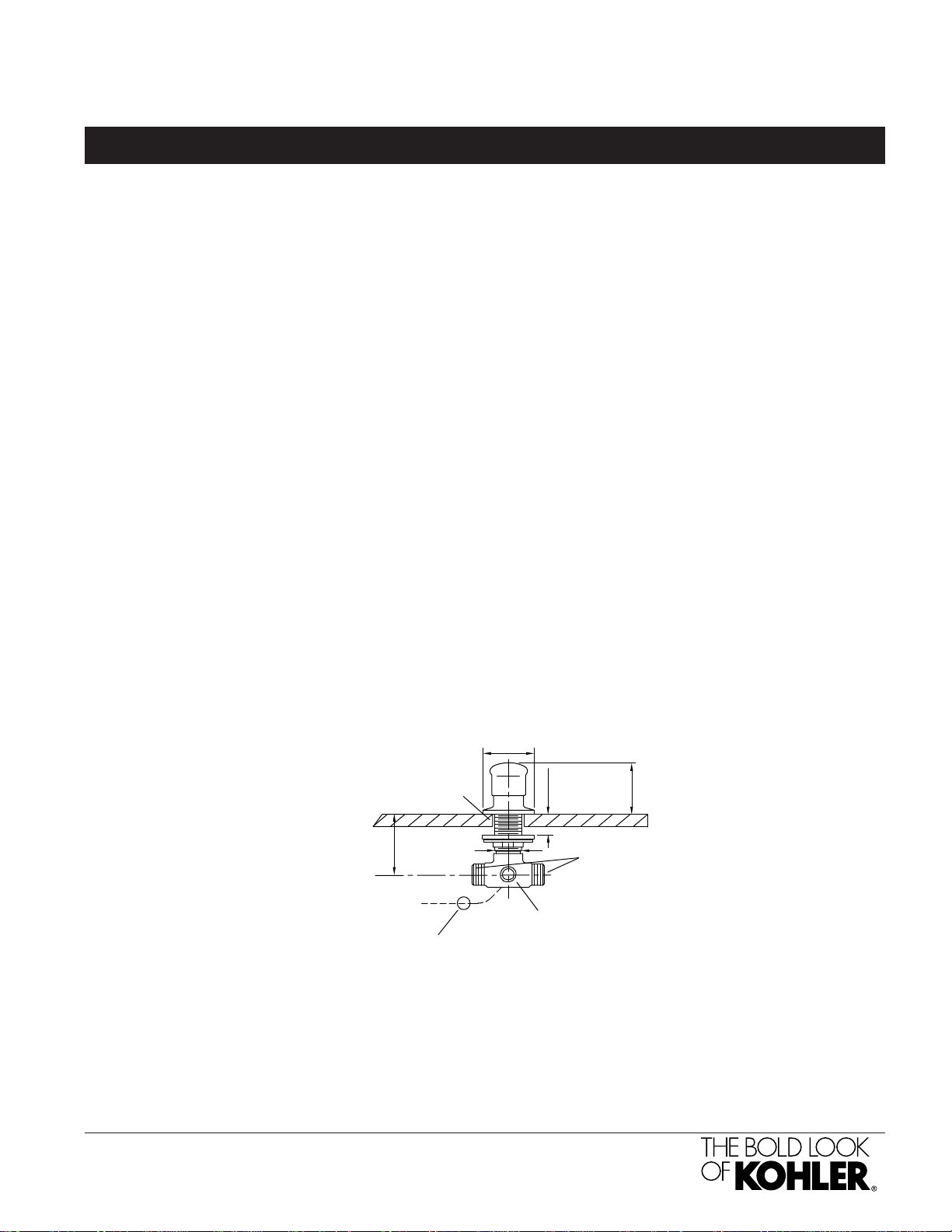

Product Diagram
Ø 2-1/2"
(64 mm)
1-1/4"
(32 mm)
Max
1/2" Nominal Sweat (5/8" OD)
3/4" NPSM Thread Inlet
3/8" Nominal Sweat (1/2" OD)
1/2" NPSM Thread
2-3/8"
(60 mm)
