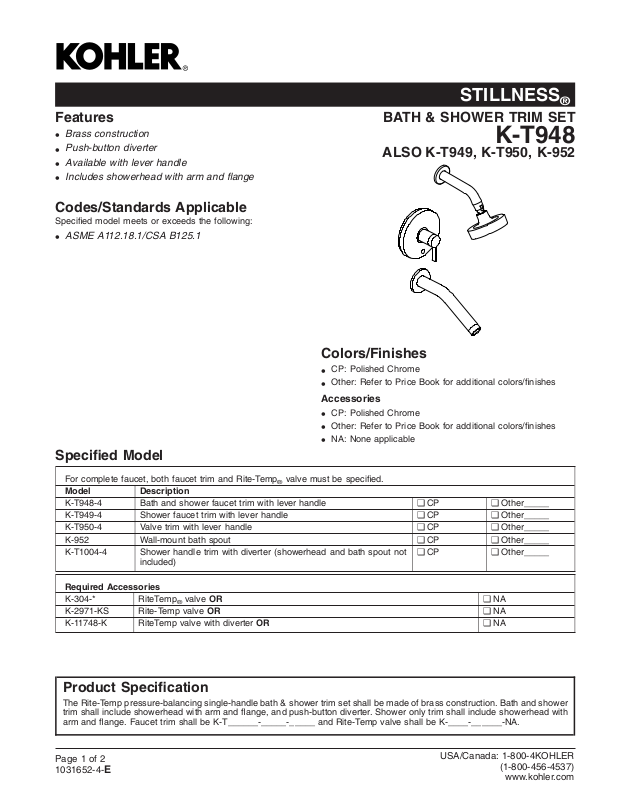

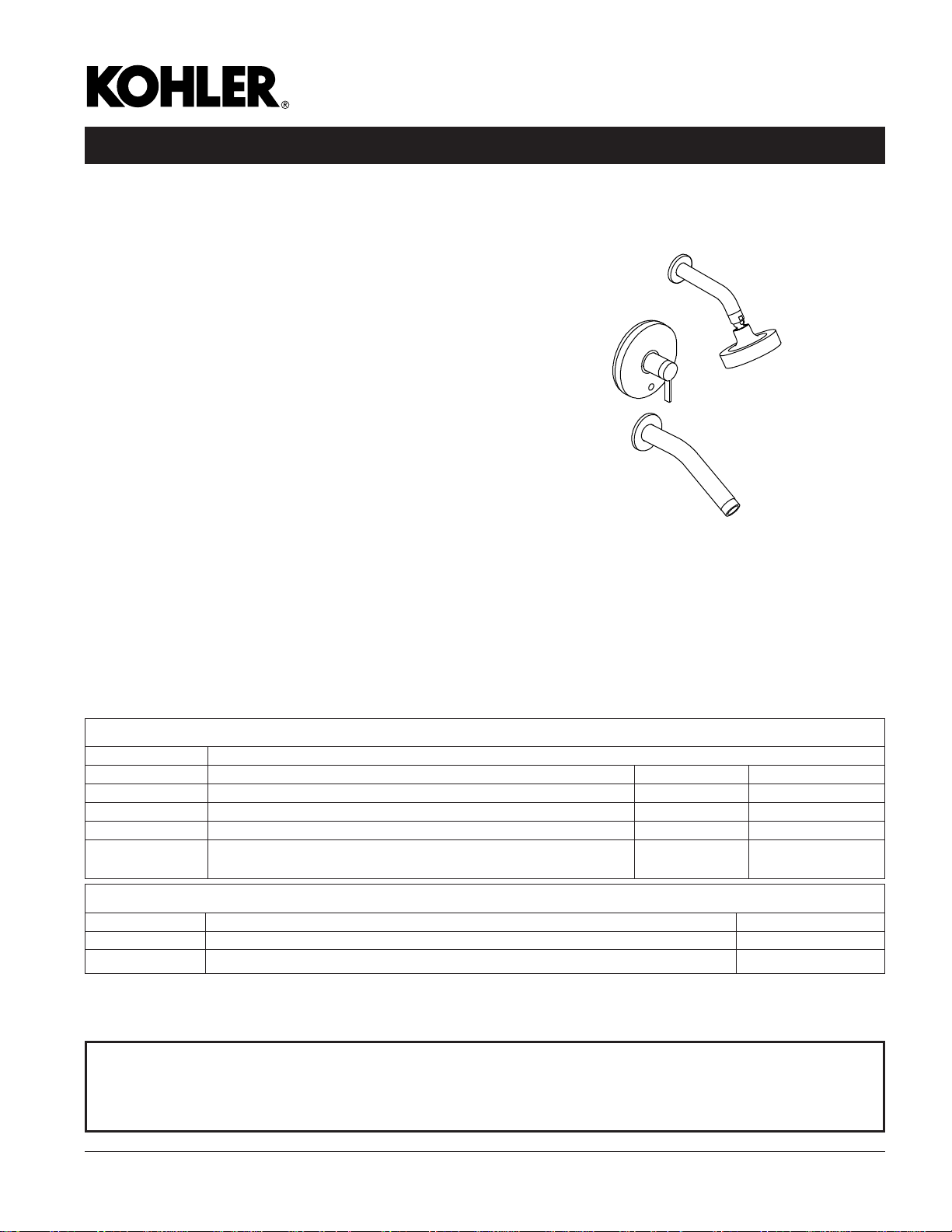

STILLNESS
®
Features
Brass construction
•
Push-button diverter
•
Available with lever handle
•
Includes showerhead with arm and flange
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Specified Model
BATH & SHOWER TRIM SET
K-T948
ALSO K-T949, K-T950, K-952
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
NA: None applicable
•
For complete faucet, both faucet trim and Rite-Temp®valve must be specified.
Model Description
K-T948-4 Bath and shower faucet trim with lever handle ❑ CP ❑ Other_____
K-T949-4 Shower faucet trim with lever handle ❑ CP ❑ Other_____
K-T950-4 Valve trim with lever handle ❑ CP ❑ Other_____
K-952 Wall-mount bath spout ❑ CP ❑ Other_____
K-T1004-4 Shower handle trim with diverter (showerhead and bath spout not
Required Accessories
K-304-* RiteTemp
K-2971-KS Rite-Temp valve OR ❑ NA
K-11748-K RiteTemp valve with diverter OR ❑ NA
included)
valve OR ❑ NA
®
❑ CP ❑ Other_____
Product Specification
The Rite-Temp pressure-balancing single-handle bath & shower trim set shall be made of brass construction. Bath and shower
trim shall include showerhead with arm and flange, and push-button diverter. Shower only trim shall include showerhead with
arm and flange. Faucet trim shall be K-T______-_____-_____ and Rite-Temp valve shall be K-____-______-NA.
Page 1 of 2
1031652-4-
E
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
STILLNESS
Required Accessories
K-11748-KS RiteTemp valve with diverter and stops ❑ NA
* For a complete listing of all the RiteTemp valves, refer to the K-304-* Specification Sheet or Roughing-In Sheet.
Optional Accessories
88526 HiFlow Rite-Temp
1016154 Deep roughing-in kit for Rite-Temp
®
thin wall installation kit ❑ CP ❑ Other_____
®
valve – lever or cross handle designs ❑ NA
®
Installation Notes
Install this product according to the installation guide.
NOTICE: Risk of product damage. Long screws, for
installing trim, can damage the K-2971-KS valve. Consult the
trim installation guide to verify if the thin wall installation kit
(88526) is needed.
Install this product according to the installation guide
Avoid cross-flow conditions. Do not install shut-off device on
either valve outlet.
Cap shower outlet if deck-mount spout, diverter, or
handshower is connected to spout outlet.
Install straight pipe or tube drop of 7″ (178 mm) to 18″
(457 mm) with single elbow between valve and wall-mount
spout.

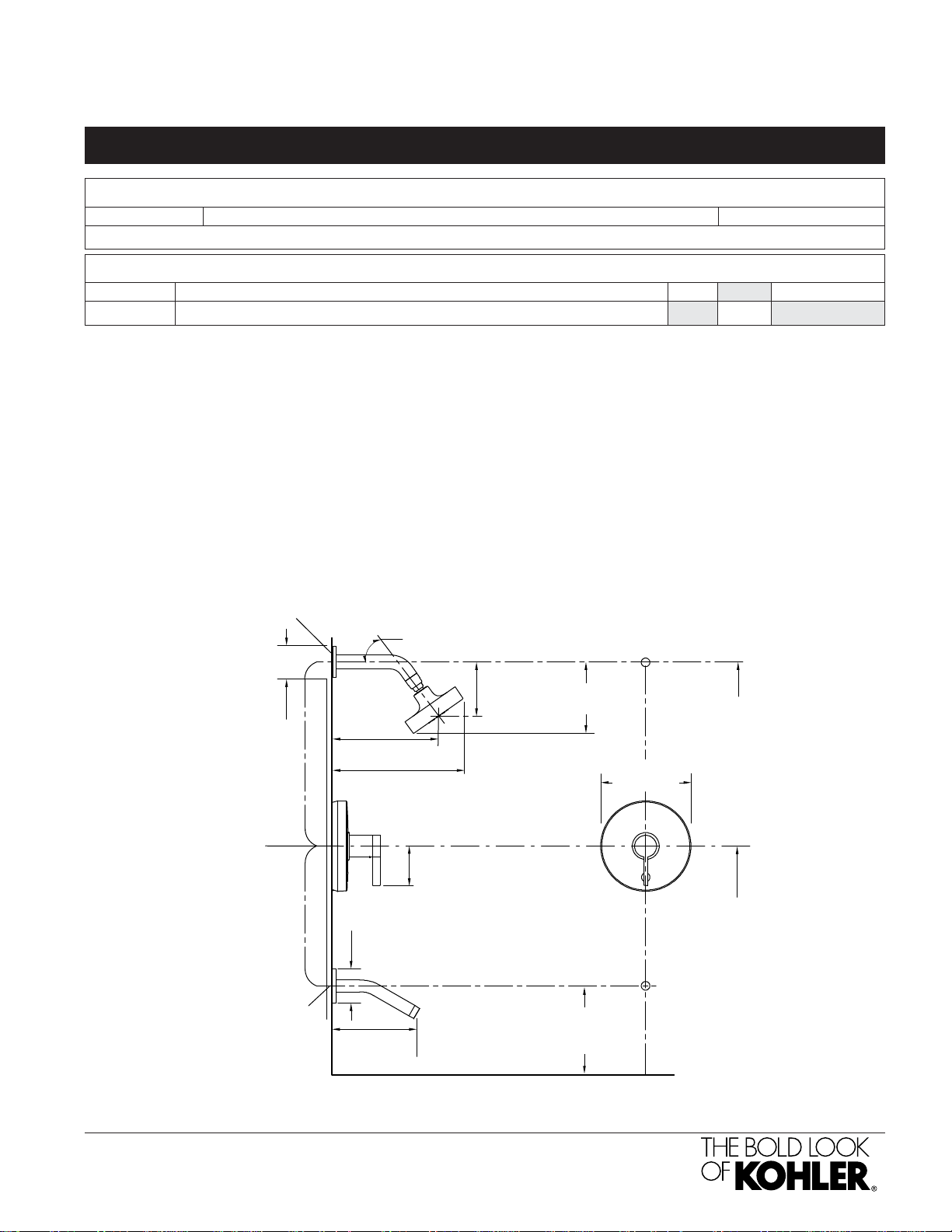

1/2" - 14 NPT
Ø 2-3/4"
(70 mm)
1/2" - 14 NPT
55˚
9-1/2" (241 mm)
11-5/8" (295 mm)
2-7/8" (73 mm)
Ø 2-1/2"
(64 mm)
8-3/4"
(222 mm)
4-7/8"
(124 mm)
6-3/8"
(162 mm)
Ø 6-3/8"
(162 mm)
10" (254 mm)
To Spout
(Bath Only)
5-1/2"
(140 mm) Min
to Top of Rim
72" (1829 mm) 78" (1981 mm)
To Floor
(Typical)
48" (1219 mm)
To Floor
(Shower Only)
STILLNESS®BATH & SHOWER TRIM SET
Page2of2
1031652-4-
E
