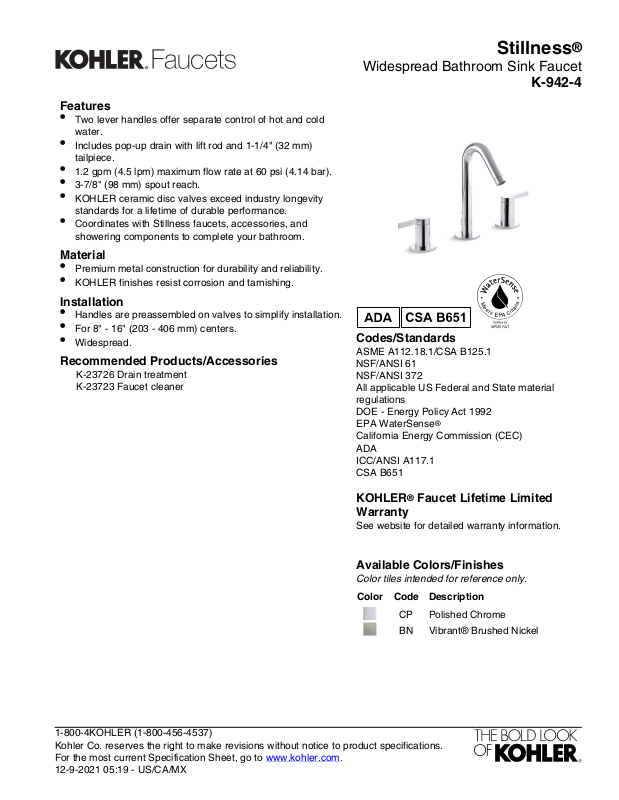

Page 1
Stillness
Features
•
Two lever handles offer separate control of hot and cold
water.
•
Includes pop-up drain with lift rod and 1-1/4" (32 mm)
tailpiece.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
•
3-7/8" (98 mm) spout reach.
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
Coordinates with Stillness faucets, accessories, and
showering components to complete your bathroom.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Handles are preassembled on valves to simplify installation.
•
For 8" - 16" (203 - 406 mm) centers.
•
Widespread.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
BN Vibrant® Brushed Nickel
®
Widespread Bathroom Sink Faucet
K-942-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-9-2021 05:19 - US/CA/MX
Page 2
Stillness
7-1/4"
(184 mm)
9/16"
(14 mm)
Ø 1-7/8"
(48 mm)
3-7/8"
(98 mm)
4-1/2"
(114 mm)
7-1/4"
(184 mm)
Ø 1-1/8"
Ø 9/16"
Ø 1-7/8"
(48 mm)
2-5/16"
(59 mm)
2-1/8"
(54 mm)
16" (406 mm) Max
8" (203 mm) Min
Pop-Up Drain
1-1/4" OD
4" (102 mm)
2-5/8"
(67 mm)
Ø 2-1/4"
(5.7 cm)
1-3/8"
(35 mm) Max
Less Dished
Washer
5/8" (16 mm)
With Dished
Washer
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 1.2 gal/min (4.5 l/min)
Pressure: 60 psi (4.1 bar)
Drain included: Yes
Spout:
Spout reach: 3-7/8" (98 mm)
Notes
Install this product according to the installation
guide.
For counter-tops 5/8" (16 mm) thick or less,
install using the dished washer (included).
ADA compliant for handles only.
ADA, CSA B651 compliant when installed to
the specific requirements of these regulations.
®
Widespread Bathroom Sink Faucet
K-942-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-9-2021 05:19 - US/CA/MX
