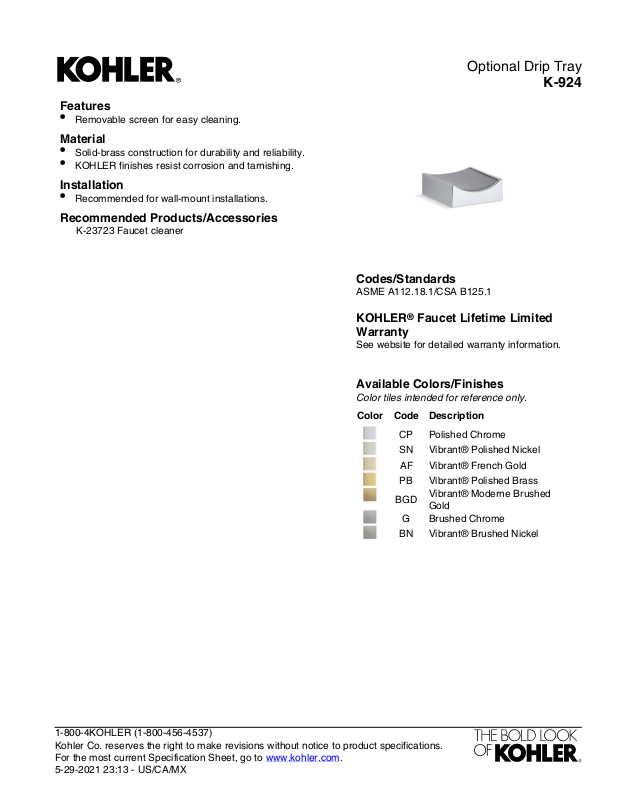

Page 1
Features
•
Removable screen for easy cleaning.
Material
•
Solid-brass construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Recommended for wall-mount installations.
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
AF Vibrant® French Gold
PB Vibrant® Polished Brass
BGD
Vibrant® Moderne Brushed
Gold
G Brushed Chrome
BN Vibrant® Brushed Nickel
Optional Drip Tray
K-924
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 23:13 - US/CA/MX
Page 2
Optional Drip Tray
1-1/8" (29 mm)
6-1/2"
(165 mm)
(38 mm)
1-1/2"
(241 mm)
- 9-1/2"
(194 mm)
7-5/8"
Top of
Bathing Fixture
Finished Wall
3-5/8" (92 mm)
Drip Tray
Outlet
8-1/2"
(216 mm)
3-1/4" (83 mm) Min
4-3/4" (121 mm) Max
2-1/8" (54 mm) Min
3-5/8" (92 mm) Max
3-1/16" (78 mm) Max
2-15/16" (75 mm) Min
16" (406 mm)
14" (356 mm) -
Bathing Fixture
Top of
9" (229 mm)
4-1/2"
(114 mm)
(38 mm)
1-1/2"
(140 mm)
5-1/2"
3" (76 mm)
2-1/2"
(64 mm)
7/16"
(11 mm)
4-1/4"
(108 mm)
L of Bath Filler
C
Technical Information
All product dimensions are nominal.
Material: Brass
Notes
Install this product according to the installation
guide.
Drip tray (K-924) is an optional accessory
available for wall-mount installation only.
K-924
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 23:13 - US/CA/MX
