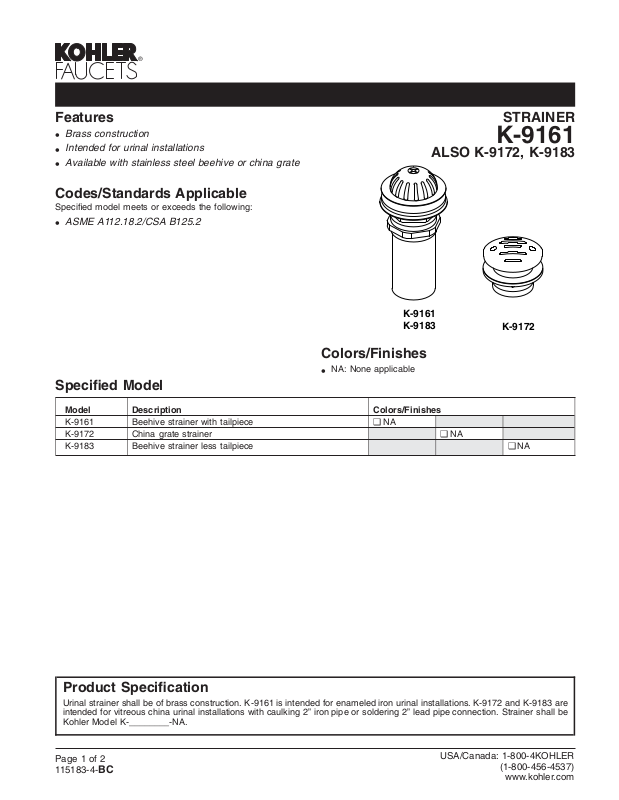

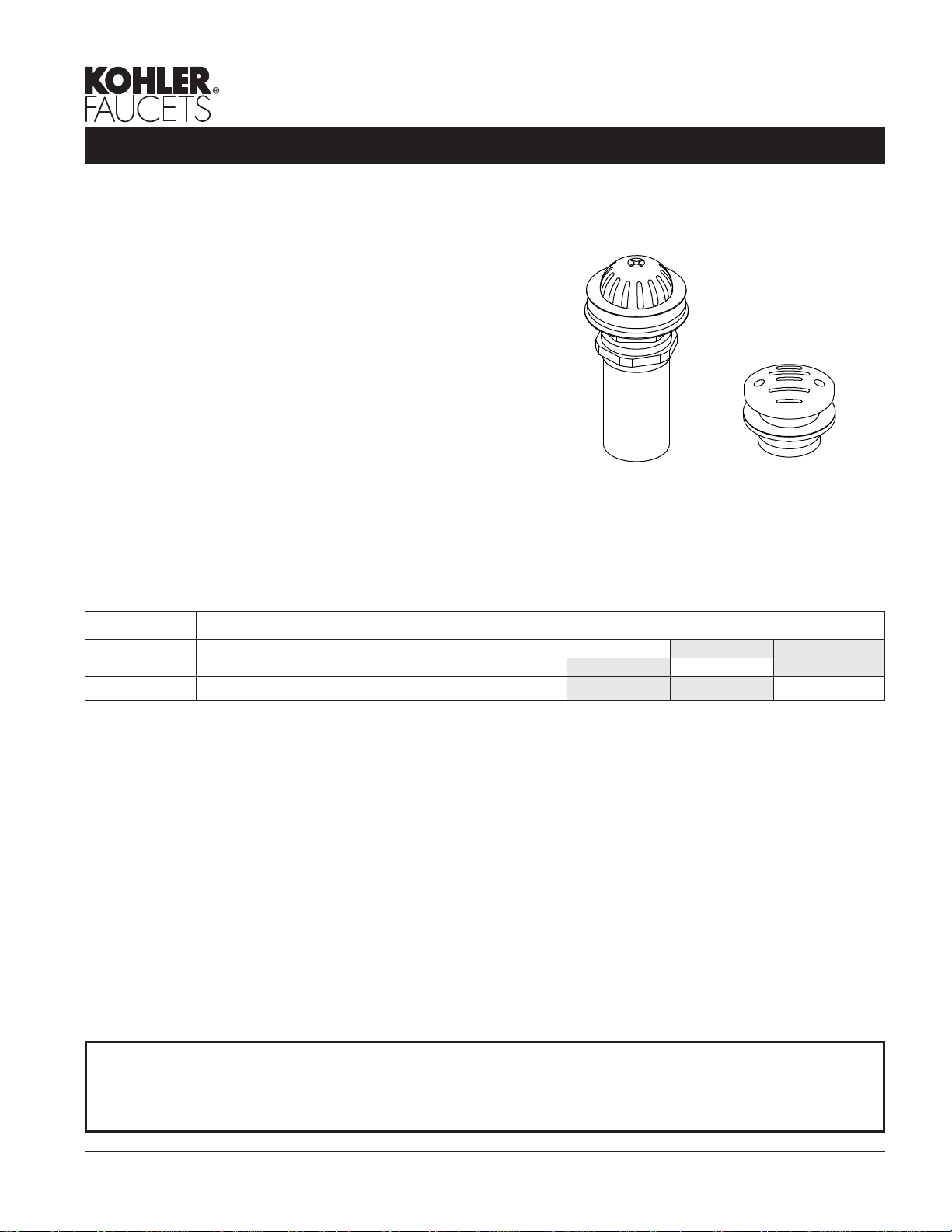

Features
Brass construction
•
Intended for urinal installations
•
Available with stainless steel beehive or china grate
•
ALSO K-9172, K-9183
K-9161
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.2/CSA B125.2
•
K-9161
K-9183
K-9172
Colors/Finishes
NA: None applicable
•
Specified Model
Model Description Colors/Finishes
K-9161 Beehive strainer with tailpiece ❑ NA
K-9172 China grate strainer ❑ NA
K-9183 Beehive strainer less tailpiece ❑ NA
STRAINER
Product Specification
Urinal strainer shall be of brass construction. K-9161 is intended for enameled iron urinal installations. K-9172 and K-9183 are
intended for vitreous china urinal installations with caulking 2” iron pipe or soldering 2” lead pipe connection. Strainer shall be
Kohler Model K-________-NA.
Page 1 of 2
115183-4-
BC
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
Installation Notes
Install this product according to the installation notes.
1-3/16"
(30 mm)
1-15/16"
(49 mm)
Ø 1-15/16"
1-1/2" OD
Tailpiece
Ø 3"
(76 mm)
Ø 2-3/16"
(56 mm)
K-9161
7/8"
(22 mm)
Max
5-11/16"
(144 mm)
Ø 4-3/8"
(111 mm)
1-1/16"
(27 mm)
2-1/8"
(54 mm)
2-1/2" ID
Ø 3-1/16"
K-9172

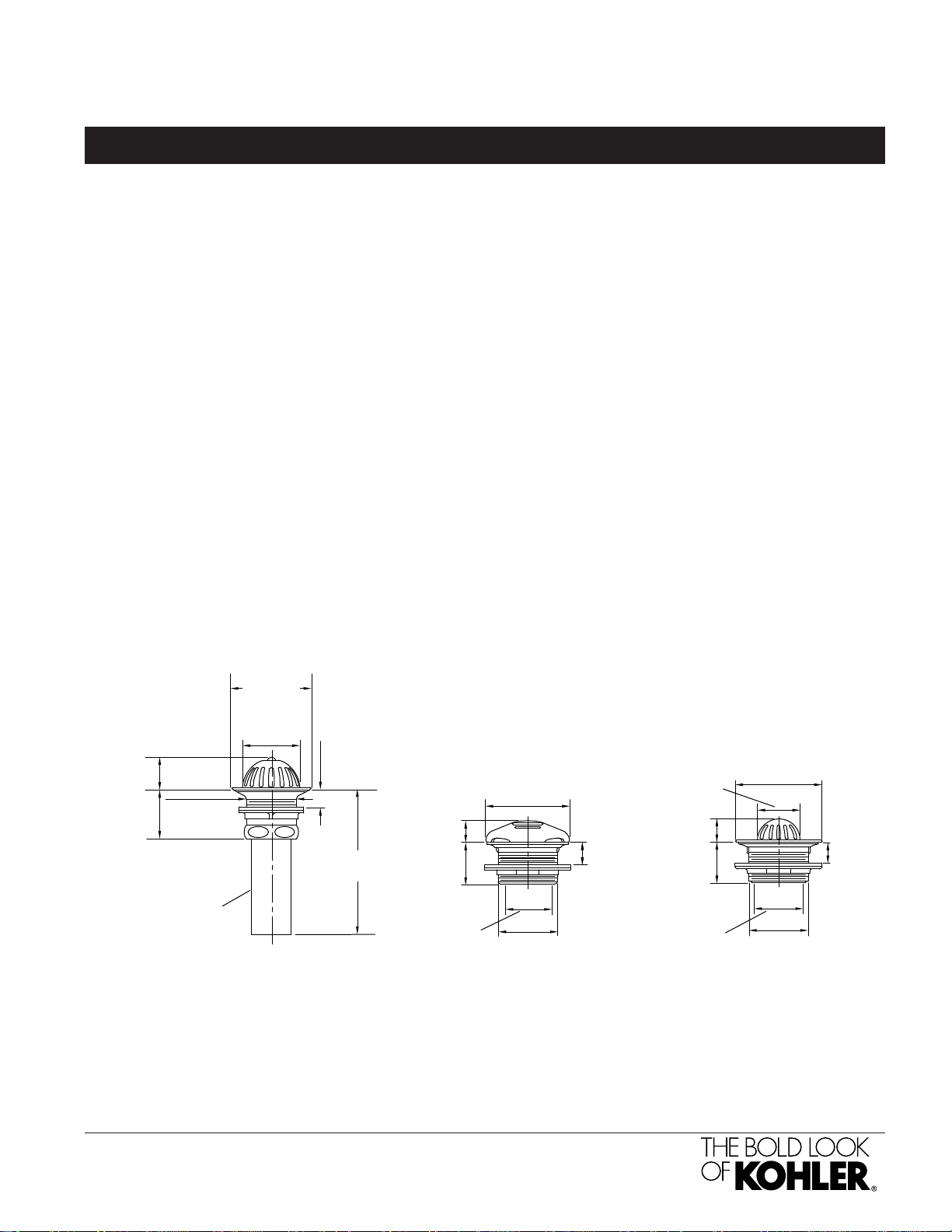

Product Diagram
1-5/8"
(41 mm)
Max
Ø 2-1/4"
(57 mm)
1-1/8"
(29 mm)
2-1/8"
(54 mm)
2-1/2" ID
4-3/8"
(111 mm)
1-5/8"
(41 mm)
Max
Ø 3-1/16"
K-9183
STRAINER
Page2of2
115183-4-
BC
