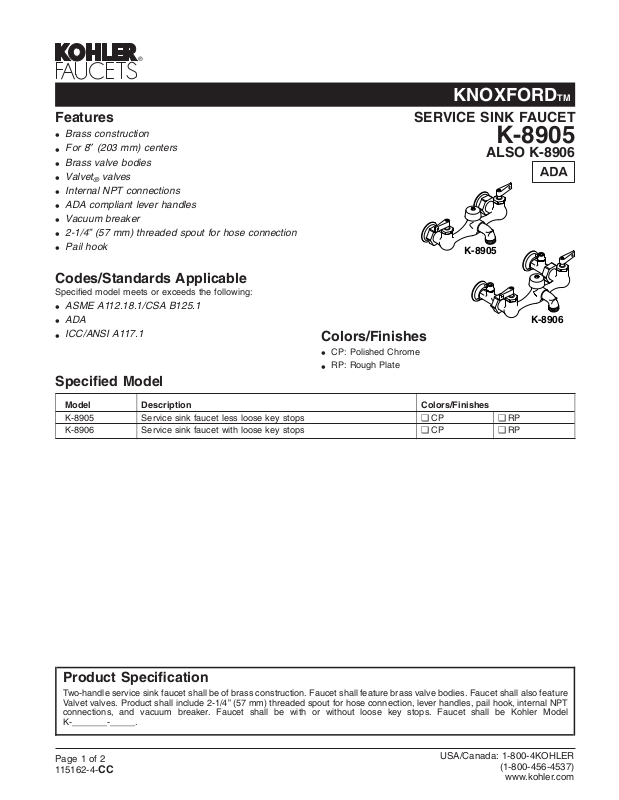

KNOXFORDTM
Features
Brass construction
•
For 8″ (203 mm) centers
•
Brass valve bodies
•
Valvet
•
Internal NPT connections
•
ADA compliant lever handles
•
Vacuum breaker
•
2-1/4” (57 mm) threaded spout for hose connection
•
Pail hook
•
valves
®
SERVICE SINK FAUCET
ALSO K-8906
K-8905
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
ADA
•
ICC/ANSI A117.1
•
Colors/Finishes
CP: Polished Chrome
•
RP: Rough Plate
•
Specified Model
Model Description Colors/Finishes
K-8905 Service sink faucet less loose key stops ❑ CP ❑ RP
K-8906 Service sink faucet with loose key stops ❑ CP ❑ RP
K-8905
K-8906
Product Specification
Two-handle service sink faucet shall be of brass construction. Faucet shall feature brass valve bodies. Faucet shall also feature
Valvet valves. Product shall include 2-1/4” (57 mm) threaded spout for hose connection, lever handles, pail hook, internal NPT
connections, and vacuum breaker. Faucet shall be with or without loose key stops. Faucet shall be Kohler Model
K-_______-_____.
Page 1 of 2
115162-4-
CC
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
KNOXFORDTM
Installation Notes
Install this product according to the installation guide.
Product complies with ASME A112.18.1/CSA B125.1. All
dimensions are nominal.
4"
(102 mm)
4"
(102 mm)
4"
(102 mm)
4"
(102 mm)
1-7/8" (48 mm)
Ø 2-5/16"
(59 mm)
1-7/8" (48 mm)
3/4"-11-1/2 NH
K-8905
3/4"-11-1/2 NH
Ø 2-5/16"
(59 mm)
K-8906
1-1/4"
(32 mm)
1-1/4"
(32 mm)
2-1/4"
(57 mm)
2-1/4"
(57 mm)
2-5/8"
(67 mm)
4"
(102 mm)
1/2" NPT
1/2" NPT
KNOXFORDTM SERVICE SINK FAUCET
Page2of2
115162-4-
CC
Product Diagram
