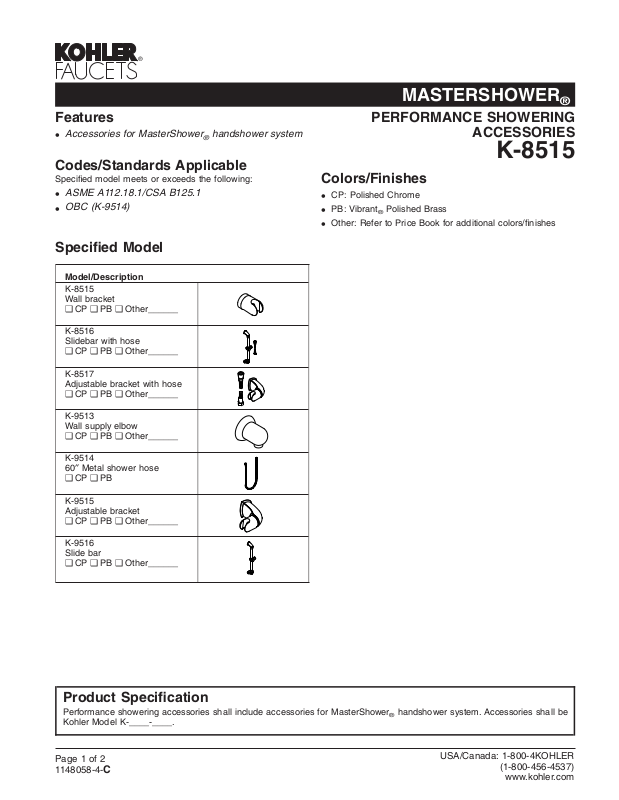

MASTERSHOWER
®
Features
Accessories for MasterShower
•
handshower system
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
OBC (K-9514)
•

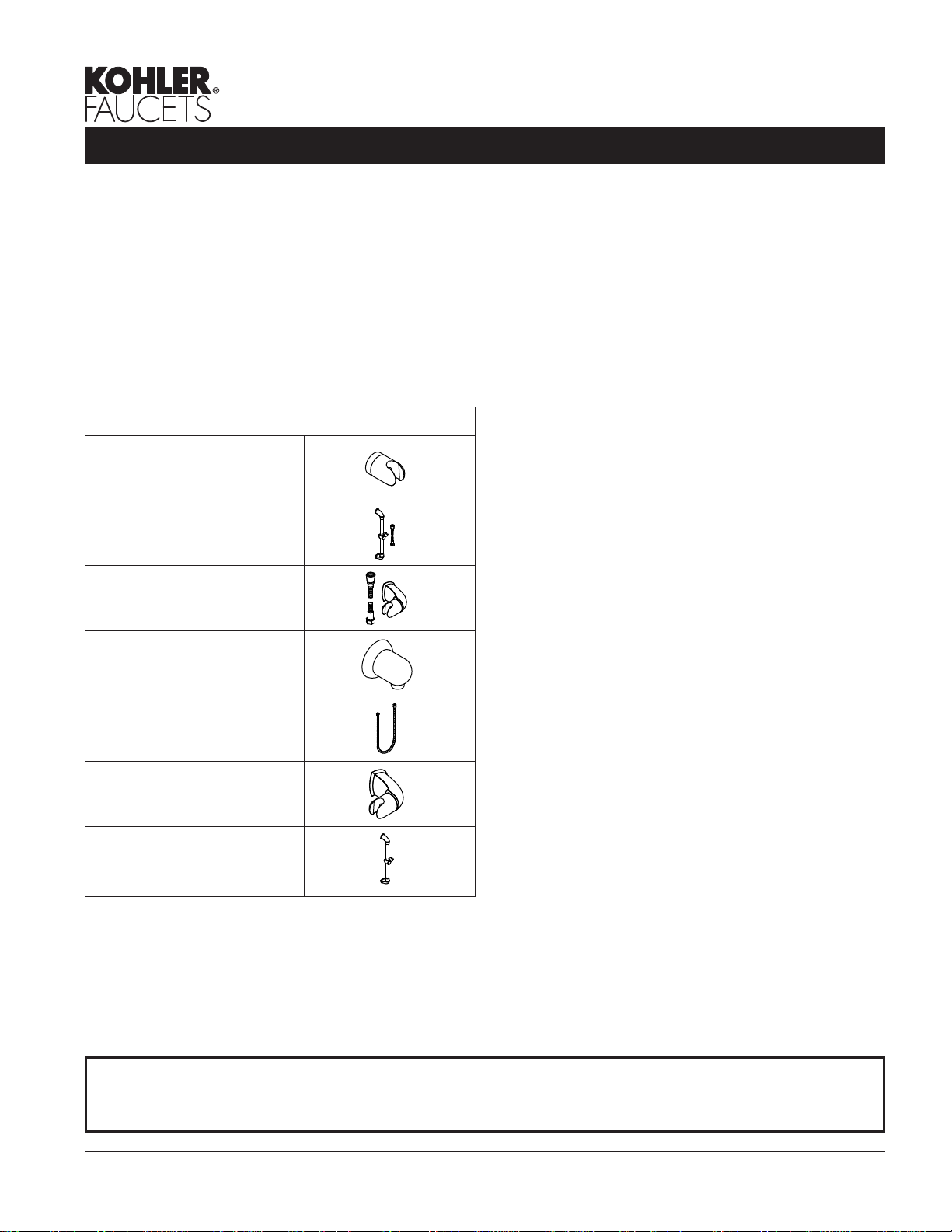

Specified Model
Model/Description
K-8515
Wall bracket
❑ CP ❑ PB ❑ Other______
K-8516
Slidebar with hose
❑ CP ❑ PB ❑ Other______
K-8517
Adjustable bracket with hose
❑ CP ❑ PB ❑ Other______
PERFORMANCE SHOWERING
ACCESSORIES
K-8515
Colors/Finishes
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
K-9513
Wall supply elbow
❑ CP ❑ PB ❑ Other______
K-9514
60″ Metal shower hose
❑ CP ❑ PB
K-9515
Adjustable bracket
❑ CP ❑ PB ❑ Other______
K-9516
Slide bar
❑ CP ❑ PB ❑ Other______
Product Specification
Performance showering accessories shall include accessories for MasterShower®handshower system. Accessories shall be
Kohler Model K-____-____.
Page 1 of 2
1148058-4-
USA/Canada: 1-800-4KOHLER
C
(1-800-456-4537)
www.kohler.com
Page 2
MASTERSHOWER
®
Installation Notes
Install this product according to the installation guide.
3/4" (19 mm)
Ø 2-7/16"
(62 mm)
1/2" NPT
Ø 1-1/2"
(38 mm)
3-1/16"
(78 mm)
1-3/8"
(35 mm)
K-9513
2-5/16"
(59 mm)
K-8515
G1/2-14
4-1/8"
(105 mm)
1-7/8"
(48 mm)
3-7/16"
(87 mm)
K-9515
60"
(1524 mm)
Overall
Length
K-8517
K-9514
K-8516
3-7/16"
(87 mm)
25"
(635 mm)
K-9516

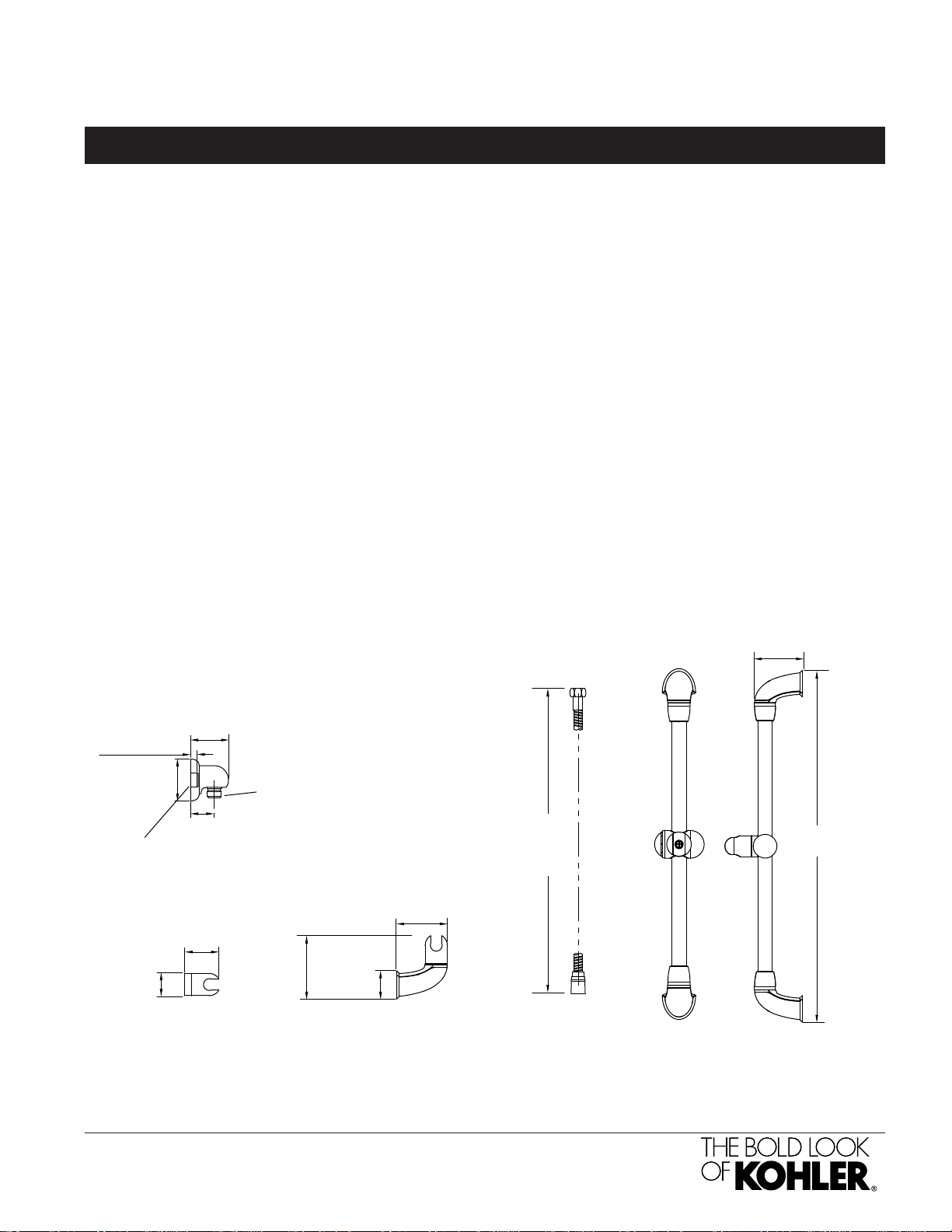

Product Diagram
MASTERSHOWER®PERFORMANCE SHOWERING ACCESSORIES
Page2of2
1148058-4-
