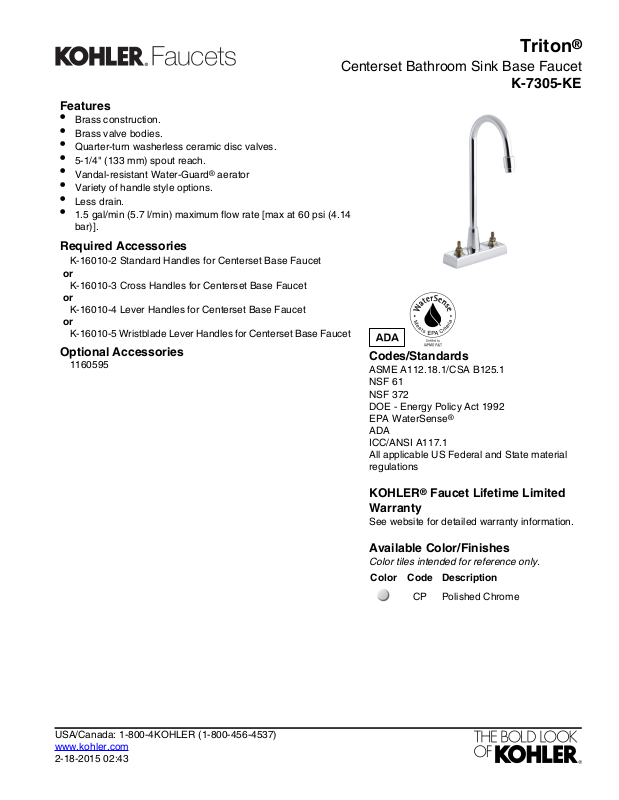

Page 1
Features
•
Brass construction.
•
Brass valve bodies.
•
Quarter-turn washerless ceramic disc valves.
•
5-1/4" (133 mm) spout reach.
•
Vandal-resistant Water-Guard® aerator
•
Variety of handle style options.
•
Less drain.
•
1.5 gal/min (5.7 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Required Accessories
K-16010-2 Standard Handles for Centerset Base Faucet
or
K-16010-3 Cross Handles for Centerset Base Faucet
or
K-16010-4 Lever Handles for Centerset Base Faucet
or
K-16010-5 Wristblade Lever Handles for Centerset Base Faucet
Triton
®
Centerset Bathroom Sink Base Faucet
K-7305-KE
Optional Accessories
1160595
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:43
Page 2
2-3/4"
Triton
®
Centerset Bathroom Sink Base Faucet
K-7305-KE

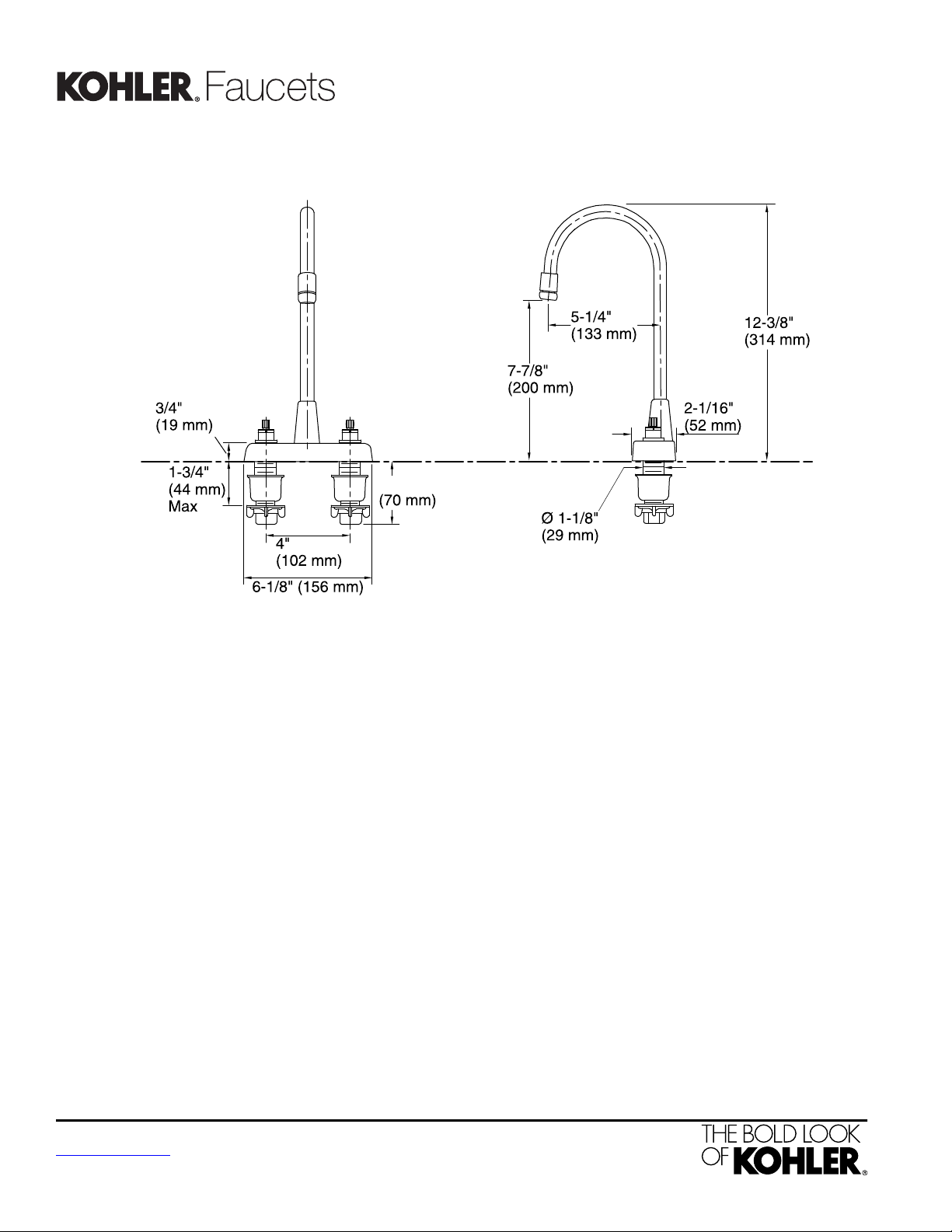

Technical Information
All product dimensions are nominal.
5-1/4" (133 mm)Spout reach:
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:43
