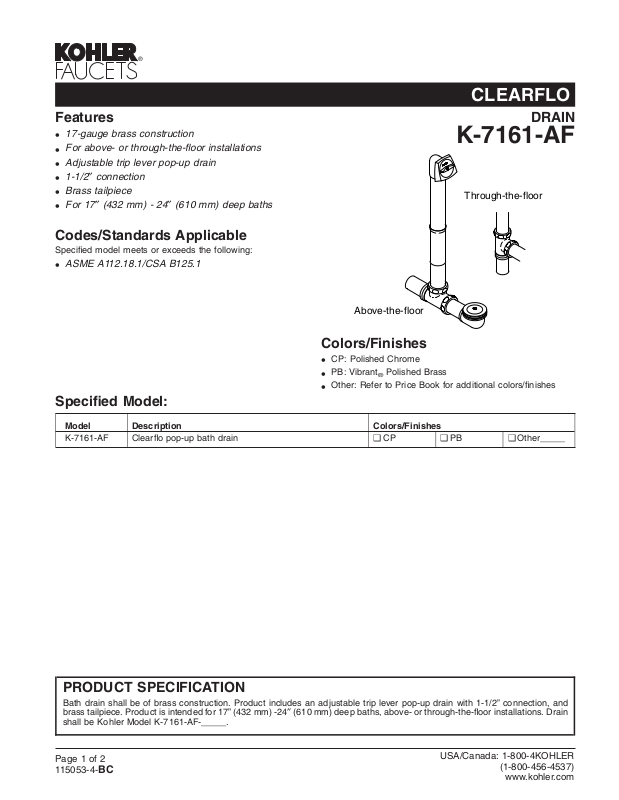

CLEARFLO
Features
17-gauge brass construction
•
For above- or through-the-floor installations
•
Adjustable trip lever pop-up drain
•
1-1/2″ connection
•
Brass tailpiece
•
For 17″ (432 mm) - 24″ (610 mm) deep baths
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Specified Model:
K-7161-AF
Through-the-floor
Above-the-floor
Colors/Finishes
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
DRAIN
Model Description Colors/Finishes
K-7161-AF Clearflo pop-up bath drain ❑ CP ❑ PB ❑ Other_____
PRODUCT SPECIFICATION
Bath drain shall be of brass construction. Product includes an adjustable trip lever pop-up drain with 1-1/2” connection, and
brass tailpiece. Product is intended for 17” (432 mm) -24″ (610 mm) deep baths, above- or through-the-floor installations. Drain
shall be Kohler Model K-7161-AF-_____.
Page 1 of 2
115053-4-
BC
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
CLEARFLO
Installation Notes
Install this product according to the installation guide.
17" (432 mm) Bath = 14-3/4" (375 mm)
24" (610 mm) Bath = 21-1/2" (546 mm)
CLEARFLO DRAIN
Page2of2
115053-4-
BC
1-1/2" NPT
1-1/2" OD
Product Diagram
7"
(178 mm)
2-7/8" (73 mm)
3" (76 mm)
