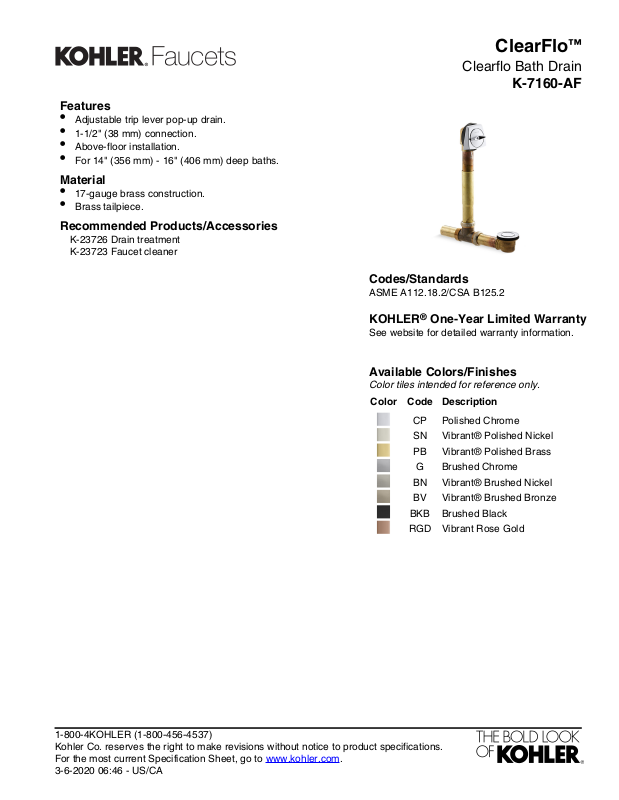

Page 1
Features
•
Adjustable trip lever pop-up drain.
•
1-1/2" (38 mm) connection.
•
Above-floor installation.
•
For 14" (356 mm) - 16" (406 mm) deep baths.
Material
•
17-gauge brass construction.
•
Brass tailpiece.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
ClearFlo
™
Clearflo Bath Drain
K-7160-AF
Codes/Standards
ASME A112.18.2/CSA B125.2
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Polished BrassPB
Brushed ChromeG
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Brushed BlackBKB
Vibrant Rose GoldRGD
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-6-2020 06:46 - US/CA
Page 2

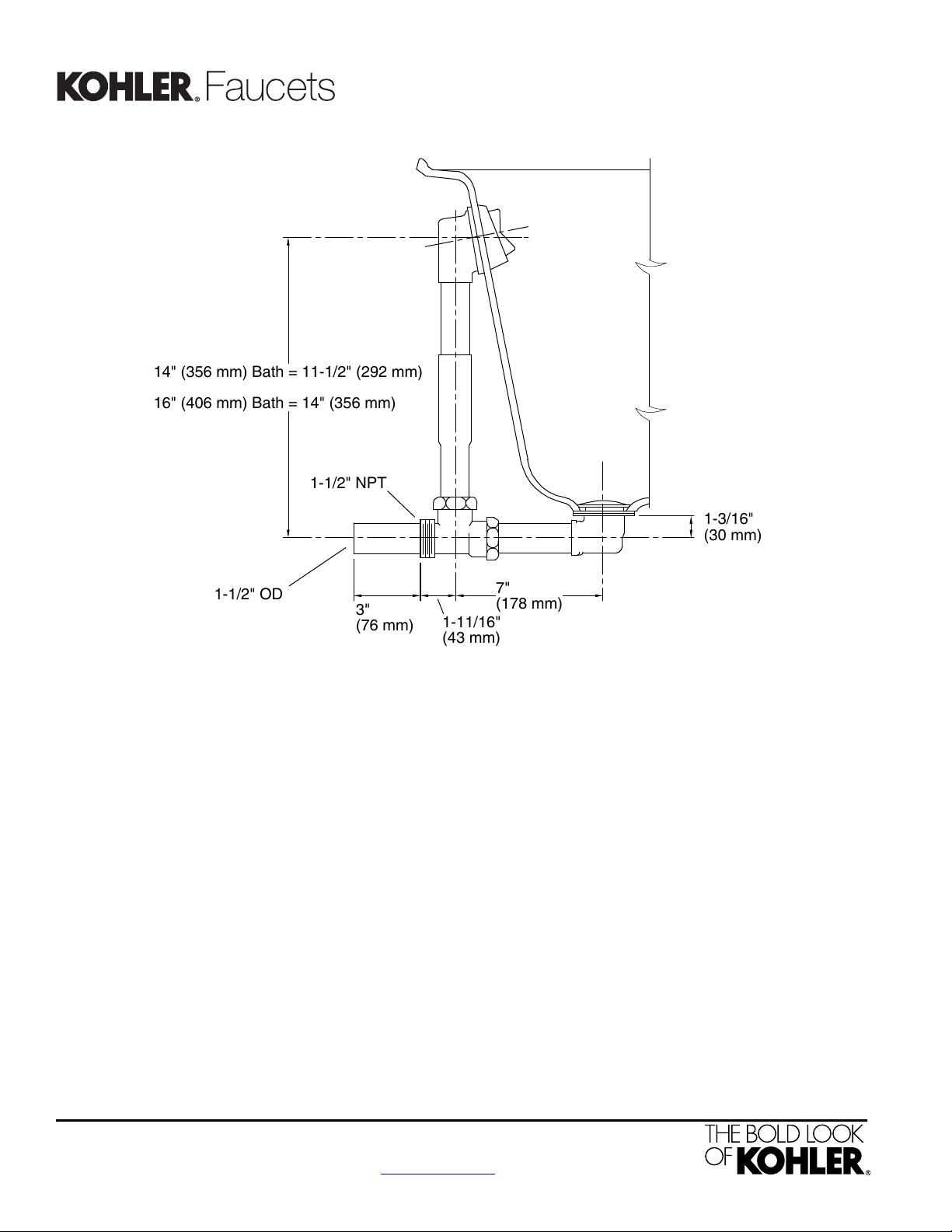

1-1/2" OD
1-1/2" NPT
7"
(178 mm)
14" (356 mm) Bath = 11-1/2" (292 mm)
16" (406 mm) Bath = 14" (356 mm)
3"
(76 mm)
1-11/16"
(43 mm)
1-3/16"
(30 mm)
ClearFlo
™
Clearflo Bath Drain
K-7160-AF
Technical Information
All product dimensions are nominal.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-6-2020 06:46 - US/CA
Notes
Install this product according to the installation
guide.
