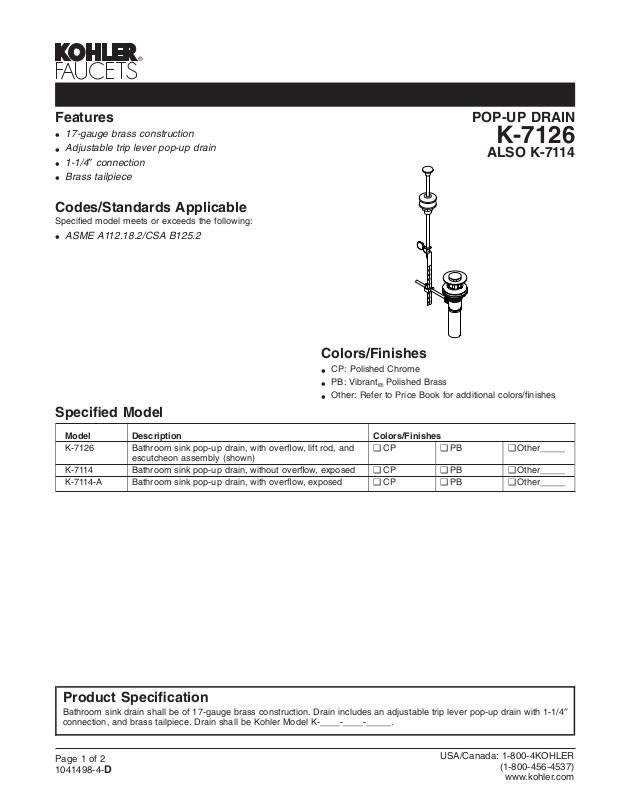

Page 1
Features
17-gauge brass construction
•
Adjustable trip lever pop-up drain
•
1-1/4″ connection
•
Brass tailpiece
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.2/CSA B125.2
•
Specified Model
POP-UP DRAIN
K-7126
ALSO K-7114
Colors/Finishes
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-7126 Bathroom sink pop-up drain, with overflow, lift rod, and
escutcheon assembly (shown)
K-7114 Bathroom sink pop-up drain, without overflow, exposed ❑ CP ❑ PB ❑ Other_____
K-7114-A Bathroom sink pop-up drain, with overflow, exposed ❑ CP ❑ PB ❑ Other_____
❑ CP ❑ PB ❑ Other_____
Product Specification
Bathroom sink drain shall be of 17-gauge brass construction. Drain includes an adjustable trip lever pop-up drain with 1-1/4″
connection, and brass tailpiece. Drain shall be Kohler Model K-____-____-_____.
Page 1 of 2
1041498-4-
USA/Canada: 1-800-4KOHLER
D
(1-800-456-4537)
www.kohler.com
Page 2
Installation Notes
Install this product according to the installation guide.
Ø 1-5/8"
(41 mm)
POP-UP DRAIN
Page2of2
1041498-4-
D
2-5/8"
(67 mm)
4"
(102 mm)
Ø 5/8"
(16 mm)
Ø 2-1/8"
(54 mm)
1-1/4" OD
Pop-Up Drain
Product Diagram
1" (25 mm) Max
