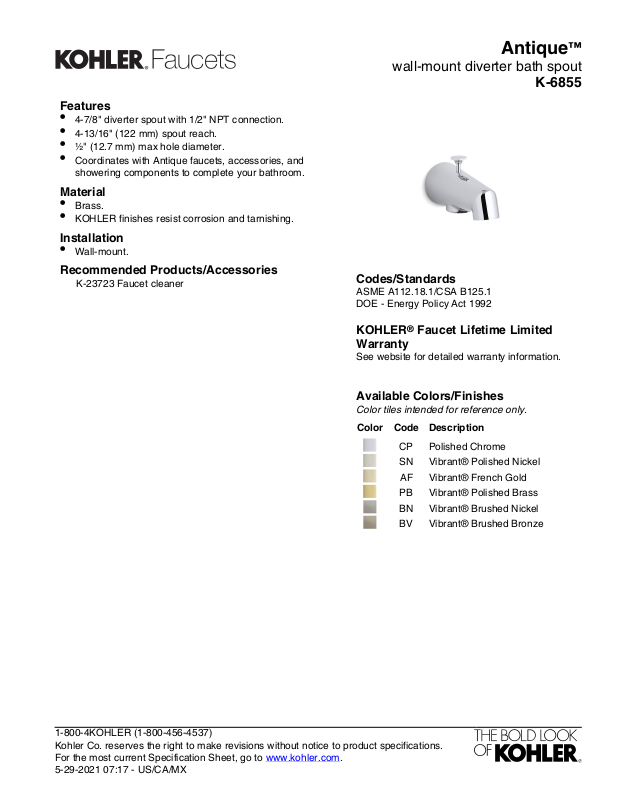

Page 1
Antique
Features
•
4-7/8" diverter spout with 1/2" NPT connection.
•
4-13/16" (122 mm) spout reach.
•
½" (12.7 mm) max hole diameter.
•
Coordinates with Antique faucets, accessories, and
showering components to complete your bathroom.
Material
•
Brass.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Wall-mount.
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
AF Vibrant® French Gold
PB Vibrant® Polished Brass
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
™
wall-mount diverter bath spout
K-6855
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 07:17 - US/CA/MX
Page 2
Antique
Threaded Spout:
Extend 1/2" NPT pipe 7/16"
(11 mm) from finished wall.
4-13/16" (122 mm)
2-7/16" (67 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Notes
Install this product according to the installation
guide.
™
wall-mount diverter bath spout
K-6855
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 07:17 - US/CA/MX
