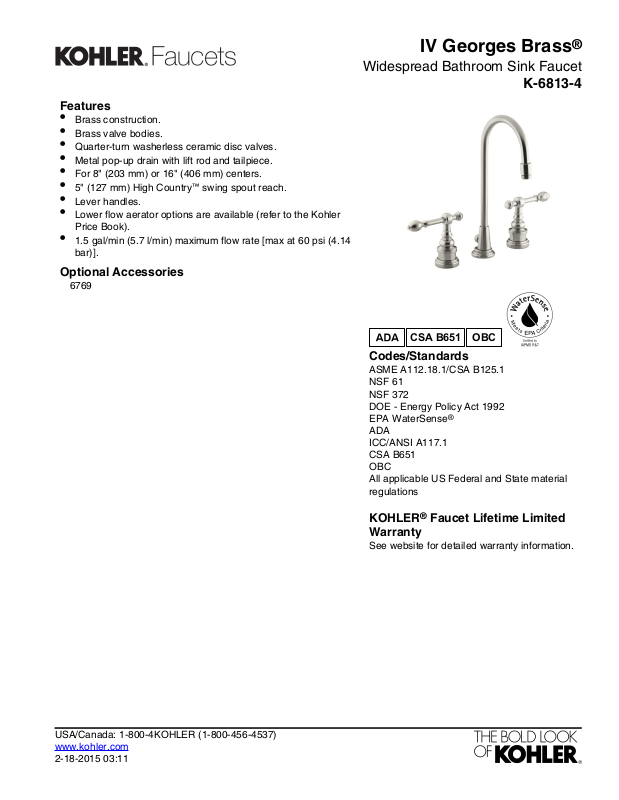

Page 1
Features
CSA B651
OBC
•
Brass construction.
•
Brass valve bodies.
•
Quarter-turn washerless ceramic disc valves.
•
Metal pop-up drain with lift rod and tailpiece.
•
For 8" (203 mm) or 16" (406 mm) centers.
•
5" (127 mm) High Country™ swing spout reach.
•
Lever handles.
•
Lower flow aerator options are available (refer to the Kohler
Price Book).
•
1.5 gal/min (5.7 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Optional Accessories
6769
IV Georges Brass
®
Widespread Bathroom Sink Faucet
K-6813-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
CSA B651
OBC
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:11
Page 2

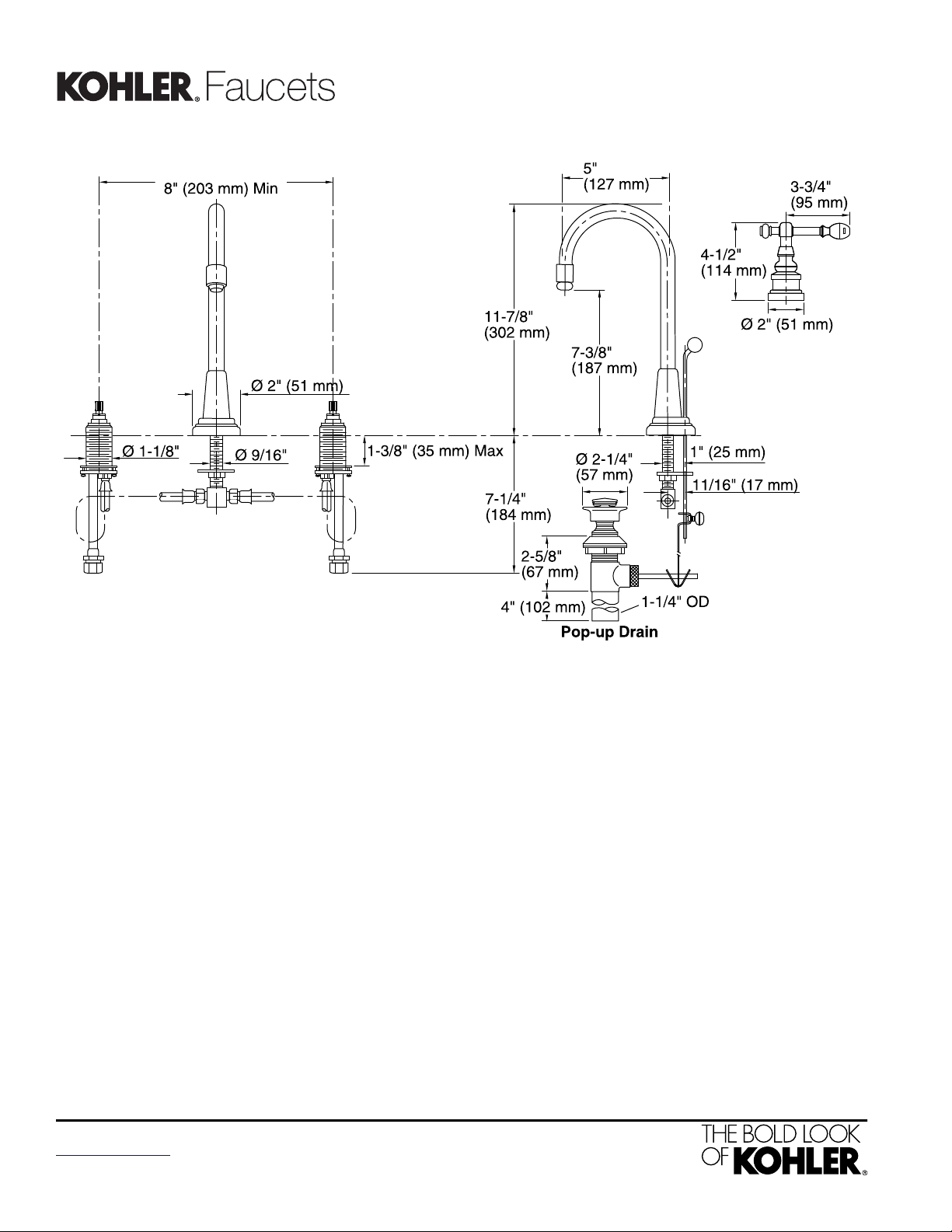

16" (406 mm) Max
IV Georges Brass
®
Widespread Bathroom Sink Faucet
K-6813-4
Technical Information
All product dimensions are nominal.
5" (127 mm)Spout reach:
YESDrain included:
included:
YESDrain tailpiece
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:11
