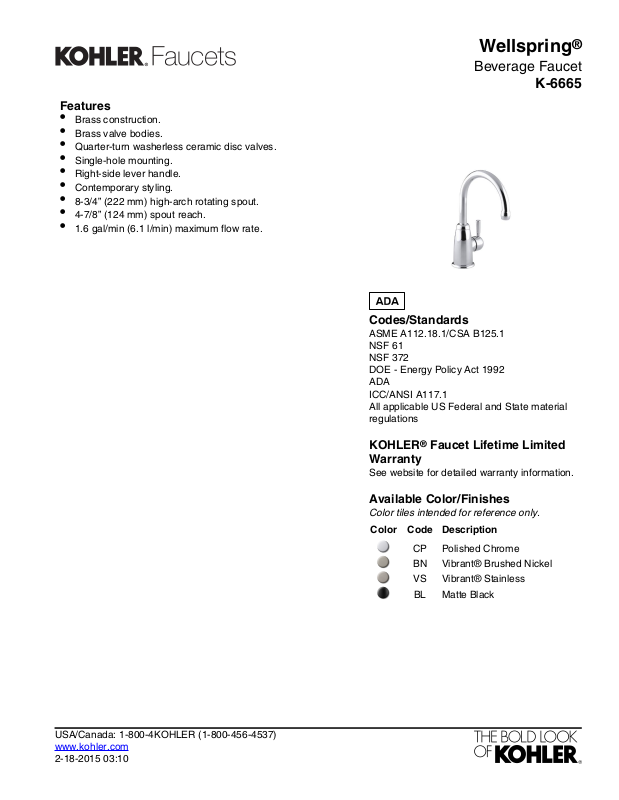

Page 1
Features
•
Brass construction.
•
Brass valve bodies.
•
Quarter-turn washerless ceramic disc valves.
•
Single-hole mounting.
•
Right-side lever handle.
•
Contemporary styling.
•
8-3/4” (222 mm) high-arch rotating spout.
•
4-7/8” (124 mm) spout reach.
•
1.6 gal/min (6.1 l/min) maximum flow rate.
Wellspring
Beverage Faucet
K-6665
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
ADA
ICC/ANSI A117.1
All applicable US Federal and State material
regulations
®
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:10
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
Vibrant® StainlessVS
Matte BlackBL

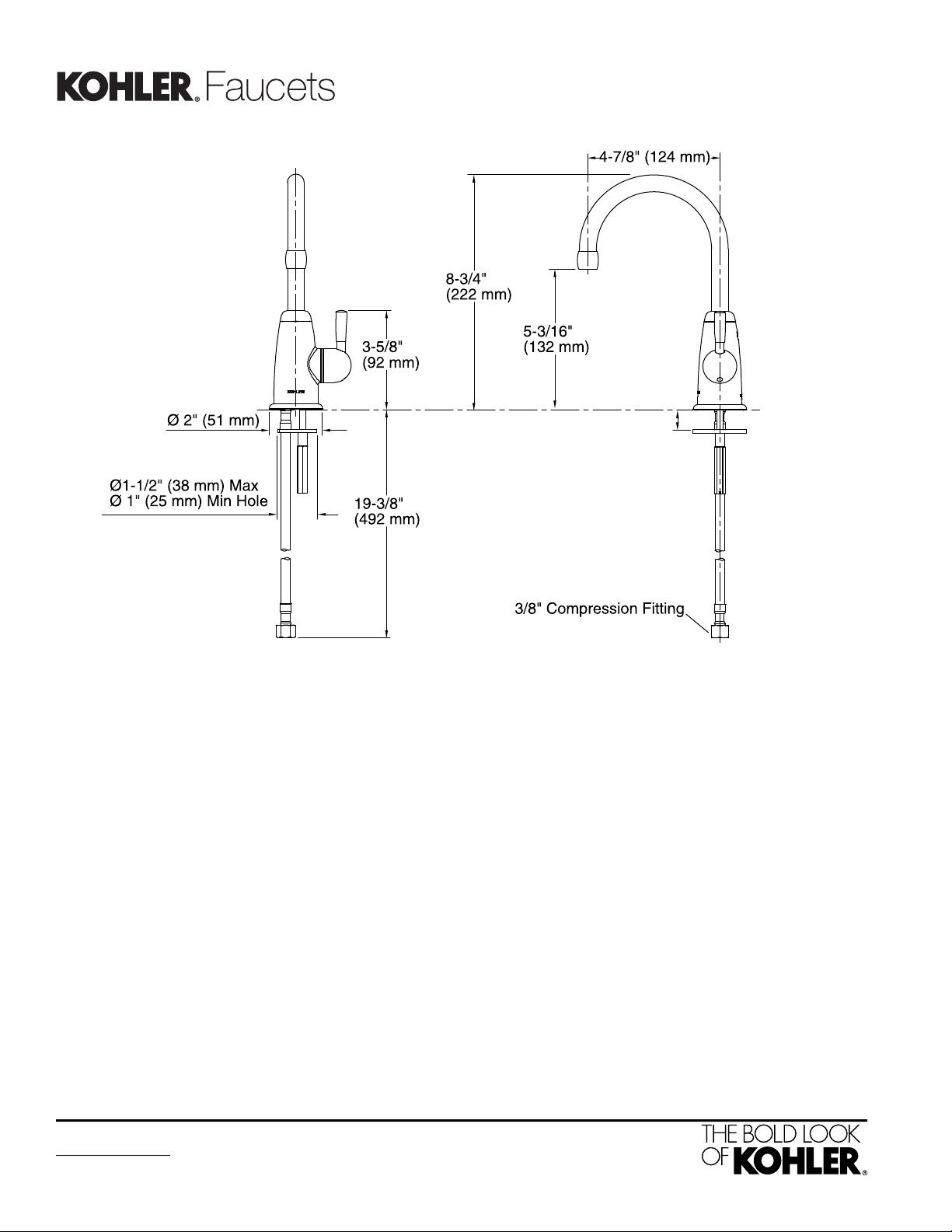

Page 2
1-5/8" (41 mm) Max
Wellspring
®
Beverage Faucet
K-6665
Technical Information
All product dimensions are nominal.
4-7/8" (124 mm)Spout reach:
Faucet:
1.6 gal/min (6.1 l/min)Flow rate:
Notes
Install this product according to the installation
guide.
NOTICE: Do not use this product with instant hot
water systems or reverse osmosis (RO) filtration
systems. Product damage will result.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:10
