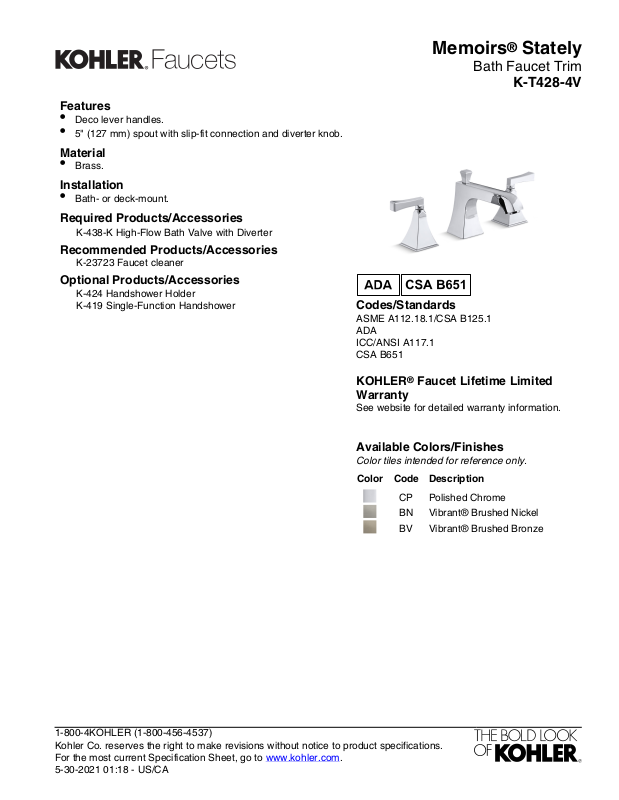

Page 1
Memoirs® Stately
Features
•
Deco lever handles.
•
5" (127 mm) spout with slip-fit connection and diverter knob.
Material
•
Brass.
Installation
•
Bath- or deck-mount.
Required Products/Accessories
K-438-K High-Flow Bath Valve with Diverter
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-424 Handshower Holder
K-419 Single-Function Handshower
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
Bath Faucet Trim
K-T428-4V
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 01:18 - US/CA
Page 2
Memoirs® Stately
2-7/16"
(62 mm)
2-3/4"
(70 mm)
2-7/16"
(62 mm)
6-5/16"
(160 mm)
4-13/16"
(123 mm)
3"
(76 mm)
2-1/2"
(64 mm)
Max
6-3/16"
(157 mm)
4-3/8"
(111 mm)
2-7/16"
(62 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
ADA, CSA B651 compliant when installed to
the specific requirements of these regulations.
Bath Faucet Trim
K-T428-4V
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 01:18 - US/CA
