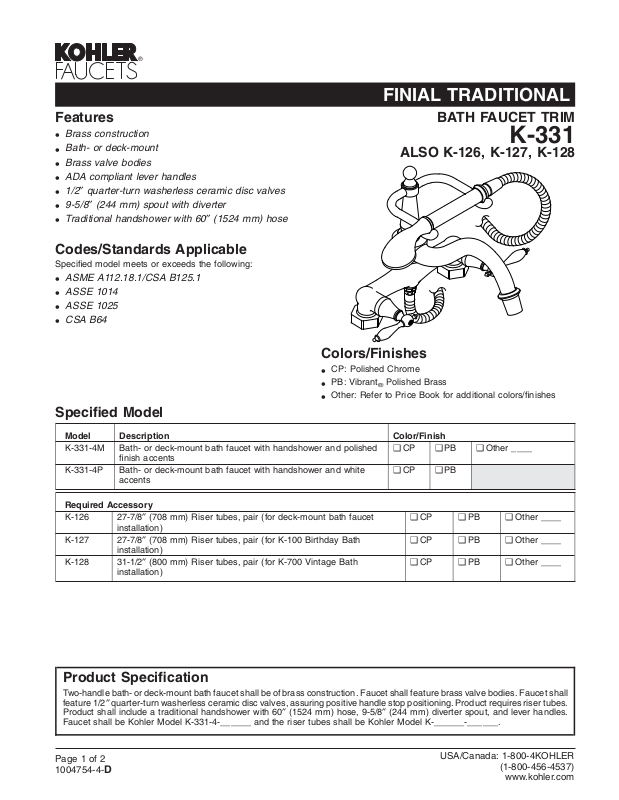

Page 1
FINIAL TRADITIONAL
Features
Brass construction
•
Bath- or deck-mount
•
Brass valve bodies
•
ADA compliant lever handles
•
1/2″ quarter-turn washerless ceramic disc valves
•
9-5/8″ (244 mm) spout with diverter
•
Traditional handshower with 60″ (1524 mm) hose
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
ASSE 1014
•
ASSE 1025
•
CSA B64
•
Specified Model
BATH FAUCET TRIM
K-331
ALSO K-126, K-127, K-128
Colors/Finishes
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Color/Finish
K-331-4M Bath- or deck-mount bath faucet with handshower and polished
finish accents
K-331-4P Bath- or deck-mount bath faucet with handshower and white
accents
Required Accessory
K-126 27-7/8″ (708 mm) Riser tubes, pair (for deck-mount bath faucet
installation)
K-127 27-7/8″ (708 mm) Riser tubes, pair (for K-100 Birthday Bath
installation)
K-128 31-1/2″ (800 mm) Riser tubes, pair (for K-700 Vintage Bath
installation)
❑ CP ❑ PB ❑ Other ____
❑ CP ❑ PB
❑ CP ❑ PB ❑ Other ____
❑ CP ❑ PB ❑ Other ____
❑ CP ❑ PB ❑ Other ____
Product Specification
Two-handle bath- or deck-mount bath faucet shall be of brass construction. Faucet shall feature brass valve bodies. Faucet shall
feature 1/2″ quarter-turn washerless ceramic disc valves, assuring positive handle stop positioning. Product requires riser tubes.
Product shall include a traditional handshower with 60″ (1524 mm) hose, 9-5/8″ (244 mm) diverter spout, and lever handles.
Faucet shall be Kohler Model K-331-4-______ and the riser tubes shall be Kohler Model K-______-______.
Page 1 of 2
1004754-4-
USA/Canada: 1-800-4KOHLER
D
(1-800-456-4537)
www.kohler.com
Page 2
FINIAL TRADITIONAL
Technical Information
Mexico products have an M after the first sequence of
numbers (such as K-12345M).
Applicable components:
Lever handles with
polished finish accents*
Lever handles with white
accents*
Riser tubes for
deck-mount
Riser tubes for Birthday
bath
Riser tubes for Vintage
bath
*Requires riser tubes.
TM
TM
K-331-4M
K-331-4P
K-126
K-127
K-128
Installation Notes
Install this product according to the installation guide.
4"
(102 mm)
1/2" NPT
3-13/16"
(97 mm)
Ø 2-1/4"
(57 mm)
8-15/16"
(227 mm)
5-5/8"
(143 mm)
K-126, K-127 =
27-7/8" (708 mm)
K-128=
31-1/2" (800 mm)
9-5/8"
(244 mm)
1-13/16"
(46 mm)
2-3/8"
(60 mm)
Bath drain to faucet = X
K-100, X= 5-7/8" (149 mm)
K-700, K-702, X=6-3/8" (162 mm)
K-710, K-711, K-712, K-726,
X= 4-3/8" (111 mm)
X
FINIAL TRADITIONAL BATH FAUCET TRIM
Page2of2
1004754-4-
D
