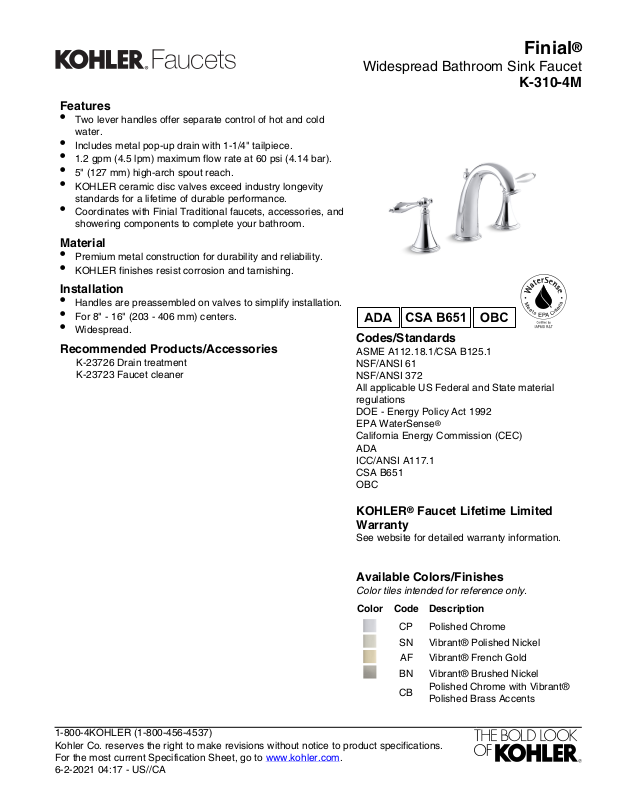

Page 1
Finial
Features
•
Two lever handles offer separate control of hot and cold
water.
•
Includes metal pop-up drain with 1-1/4" tailpiece.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
•
5" (127 mm) high-arch spout reach.
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
Coordinates with Finial Traditional faucets, accessories, and
showering components to complete your bathroom.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Handles are preassembled on valves to simplify installation.
•
For 8" - 16" (203 - 406 mm) centers.
•
Widespread.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
AF Vibrant® French Gold
BN Vibrant® Brushed Nickel
CB
Polished Chrome with Vibrant®
Polished Brass Accents
®
Widespread Bathroom Sink Faucet
K-310-4M
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-2-2021 04:17 - US//CA
Page 2
Finial
Pop-up Drain
1-1/4" OD
2-5/8"
(67 mm)
4" (102 mm)
Ø 2-1/4"
(57 mm)
7-1/4"
(184 mm)
3-7/8"
(98 mm)
Ø 2-1/4"
(57 mm)
3-1/4"
(83 mm)
3/4" (19 mm)
4-1/4"
(108 mm)
6-1/4"
(159 mm)
1-3/8" (35 mm) Max
5"
(127 mm)
6-3/8"
(162 mm)
Ø 7/8"
Ø 1-1/8"
Ø 2-1/4" (57 mm)
16" (406 mm) Max
8" (203 mm) Min
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 1.2 gal/min (4.5 l/min)
Pressure: 60 psi (4.1 bar)
Drain included: Yes
Spout:
Spout reach: 5" (127 mm)
Notes
Install this product according to the installation
guide.
ADA compliant for handles only.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
®
Widespread Bathroom Sink Faucet
K-310-4M
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-2-2021 04:17 - US//CA
