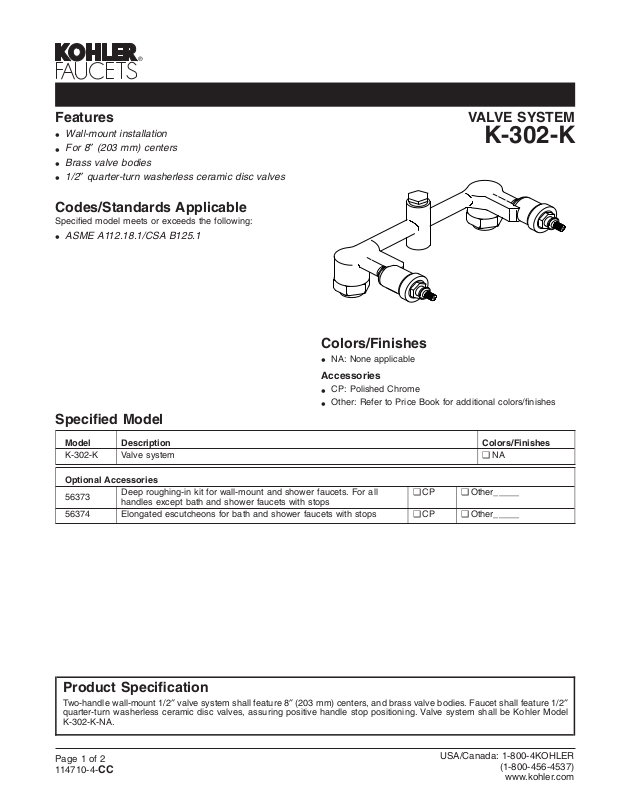

Page 1
Features
Wall-mount installation
•
For 8″ (203 mm) centers
•
Brass valve bodies
•
1/2″ quarter-turn washerless ceramic disc valves
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Specified Model
VALVE SYSTEM
K-302-K
Colors/Finishes
NA: None applicable
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-302-K Valve system ❑ NA
Optional Accessories
56373
56374 Elongated escutcheons for bath and shower faucets with stops ❑ CP ❑ Other_____
Deep roughing-in kit for wall-mount and shower faucets. For all
handles except bath and shower faucets with stops
❑ CP ❑ Other_____
Product Specification
Two-handle wall-mount 1/2″ valve system shall feature 8″ (203 mm) centers, and brass valve bodies. Faucet shall feature 1/2″
quarter-turn washerless ceramic disc valves, assuring positive handle stop positioning. Valve system shall be Kohler Model
K-302-K-NA.
Page 1 of 2
114710-4-
CC
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
Installation Notes
Install this product according to the installation guide.
VALVE SYSTEM
Page2of2
114710-4-
CC
2-1/4" (57 mm)
Min
3" (76 mm)
Max
1/2" Hot
Product Diagram
4"
(102 mm)
1/2" NPT
4"
(102 mm)
1/2" NPT
1/2" Cold
