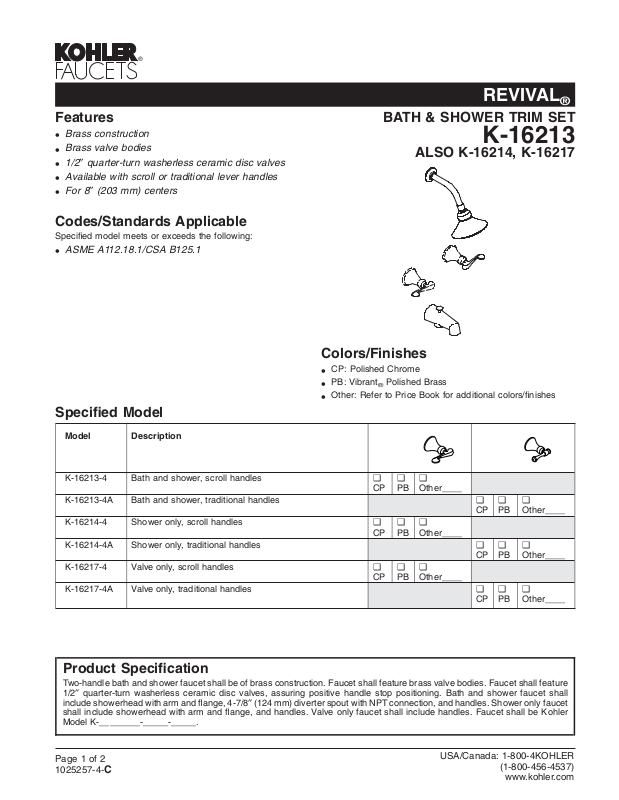

Page 1
REVIVAL
®
Features
Brass construction
•
Brass valve bodies
•
1/2″ quarter-turn washerless ceramic disc valves
•
Available with scroll or traditional lever handles
•
For 8″ (203 mm) centers
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Specified Model
BATH & SHOWER TRIM SET
K-16213
ALSO K-16214, K-16217
Colors/Finishes
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description
K-16213-4 Bath and shower, scroll handles ❑CP❑PB❑
K-16213-4A Bath and shower, traditional handles ❑CP❑PB❑
K-16214-4 Shower only, scroll handles ❑CP❑PB❑
K-16214-4A Shower only, traditional handles ❑CP❑PB❑
K-16217-4 Valve only, scroll handles ❑CP❑PB❑
K-16217-4A Valve only, traditional handles ❑CP❑PB❑
Other____
Other____
Other____
Other____
Other____
Other____
Product Specification
Two-handle bath and shower faucet shall be of brass construction. Faucet shall feature brass valve bodies. Faucet shall feature
1/2″ quarter-turn washerless ceramic disc valves, assuring positive handle stop positioning. Bath and shower faucet shall
include showerhead with arm and flange, 4-7/8″ (124 mm) diverter spout with NPT connection, and handles. Shower only faucet
shall include showerhead with arm and flange, and handles. Valve only faucet shall include handles. Faucet shall be Kohler
Model K-________-_____-_____.
Page 1 of 2
1025257-4-
USA/Canada: 1-800-4KOHLER
C
(1-800-456-4537)
www.kohler.com
Page 2
REVIVAL
Optional Accessories
56373 Deep roughing-in kit for wall-mount and shower faucets. For all handles
®
except bath and shower faucets with stops
Installation Notes
Install this product according to the installation guide.
❑ CP ❑ Other _____
1/2" - 14
NPT
2-1/4"
(57 mm)
Min
3"
(76 mm)
Max
1/2" - 14
NPT
7-1/8"
(181 mm)
1/2" NPT
Hot
4-7/8" (124 mm)
6-1/2"
(165 mm)
4"
(102 mm)
1/2"
NPT
Top Of Rim
72" (1829 mm) 78" (1981 mm)
To Floor
(Typical)
4"
(102 mm)
1/2" NPT
8" (203 mm)
1/2" NPT
Cold
Typ
4" (102 mm)
Bath Only
4" (102 mm)
Product Diagram
Ø 2-1/2"
(64 mm)
Ø 2-1/2"
(64 mm)
48" (1219 mm)
To Floor
(Shower Only)
4"
(102 mm)
Scroll
4"
(102 mm)
Traditional
1"
(25 mm)
3"
(76 mm)
1"
(25 mm)
3"
(76 mm)
REVIVAL®BATH & SHOWER TRIM SET
Page2of2
1025257-4-
C
