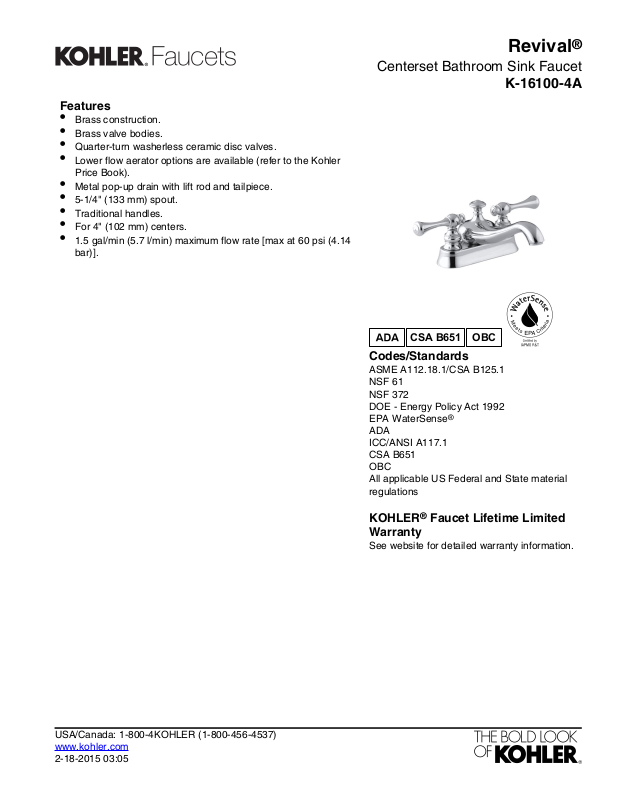

Page 1
Features
CSA B651
OBC
•
Brass construction.
•
Brass valve bodies.
•
Quarter-turn washerless ceramic disc valves.
•
Lower flow aerator options are available (refer to the Kohler
Price Book).
•
Metal pop-up drain with lift rod and tailpiece.
•
5-1/4" (133 mm) spout.
•
Traditional handles.
•
For 4" (102 mm) centers.
•
1.5 gal/min (5.7 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Revival
®
Centerset Bathroom Sink Faucet
K-16100-4A
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
CSA B651
OBC
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:05
Page 2
2-1/16"
Revival
®
Centerset Bathroom Sink Faucet
K-16100-4A

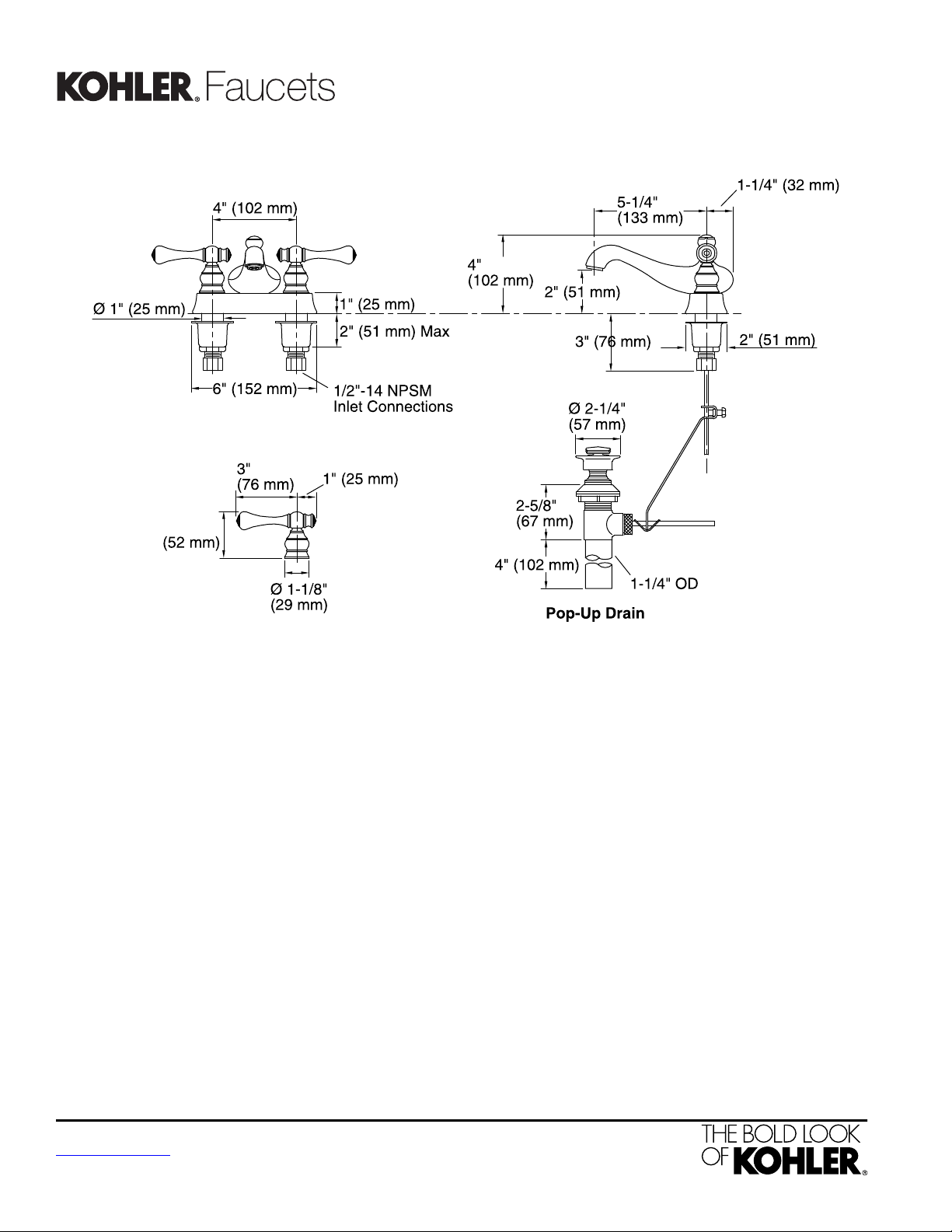

Technical Information
All product dimensions are nominal.
5-1/4" (133 mm)Spout reach:
YESDrain included:
YESDrain tailpiece
included:
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:05
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
