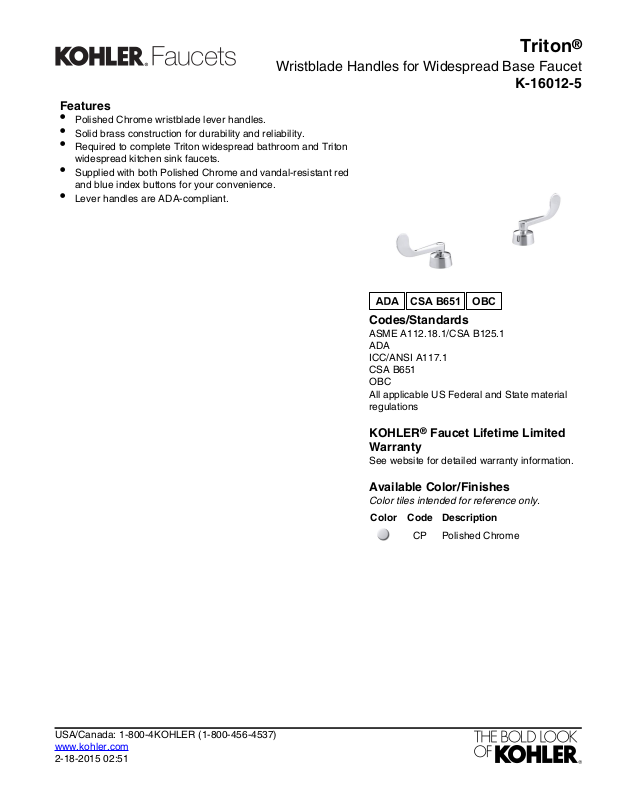

Page 1
CSA B651
OBC
Wristblade Handles for Widespread Base Faucet
Features
•
Polished Chrome wristblade lever handles.
•
Solid brass construction for durability and reliability.
•
Required to complete Triton widespread bathroom and Triton
widespread kitchen sink faucets.
•
Supplied with both Polished Chrome and vandal-resistant red
and blue index buttons for your convenience.
•
Lever handles are ADA-compliant.
Triton
K-16012-5
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:51
Page 2
4" (102 mm)
Triton
®
Wristblade Handles for Widespread Base Faucet
K-16012-5
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:51
