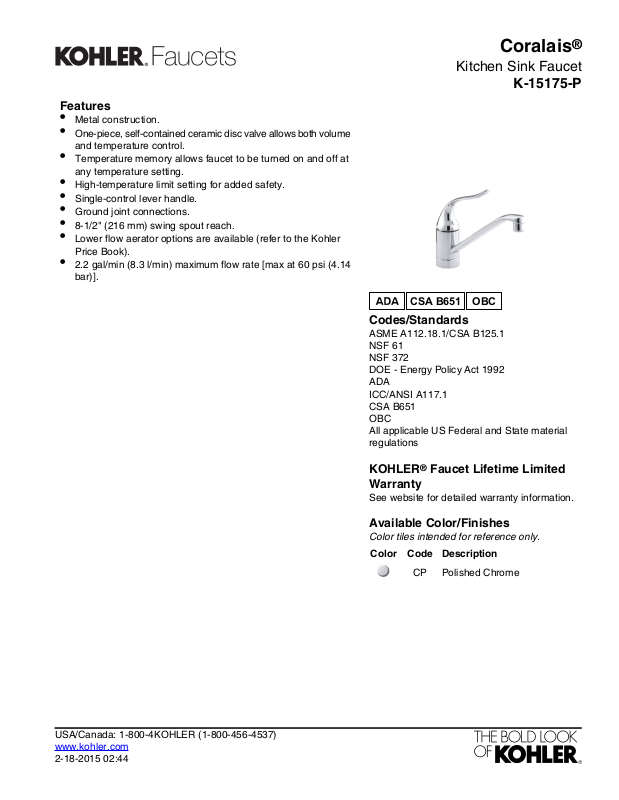

Page 1
Features
CSA B651
OBC
•
Metal construction.
•
One-piece, self-contained ceramic disc valve allows both volume
and temperature control.
•
Temperature memory allows faucet to be turned on and off at
any temperature setting.
•
High-temperature limit setting for added safety.
•
Single-control lever handle.
•
Ground joint connections.
•
8-1/2" (216 mm) swing spout reach.
•
Lower flow aerator options are available (refer to the Kohler
Price Book).
•
2.2 gal/min (8.3 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Coralais
Kitchen Sink Faucet
K-15175-P
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
ADA
ICC/ANSI A117.1
CSA B651
OBC
All applicable US Federal and State material
regulations
®
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:44
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Page 2
6-1/8"
Coralais
®
Kitchen Sink Faucet
K-15175-P

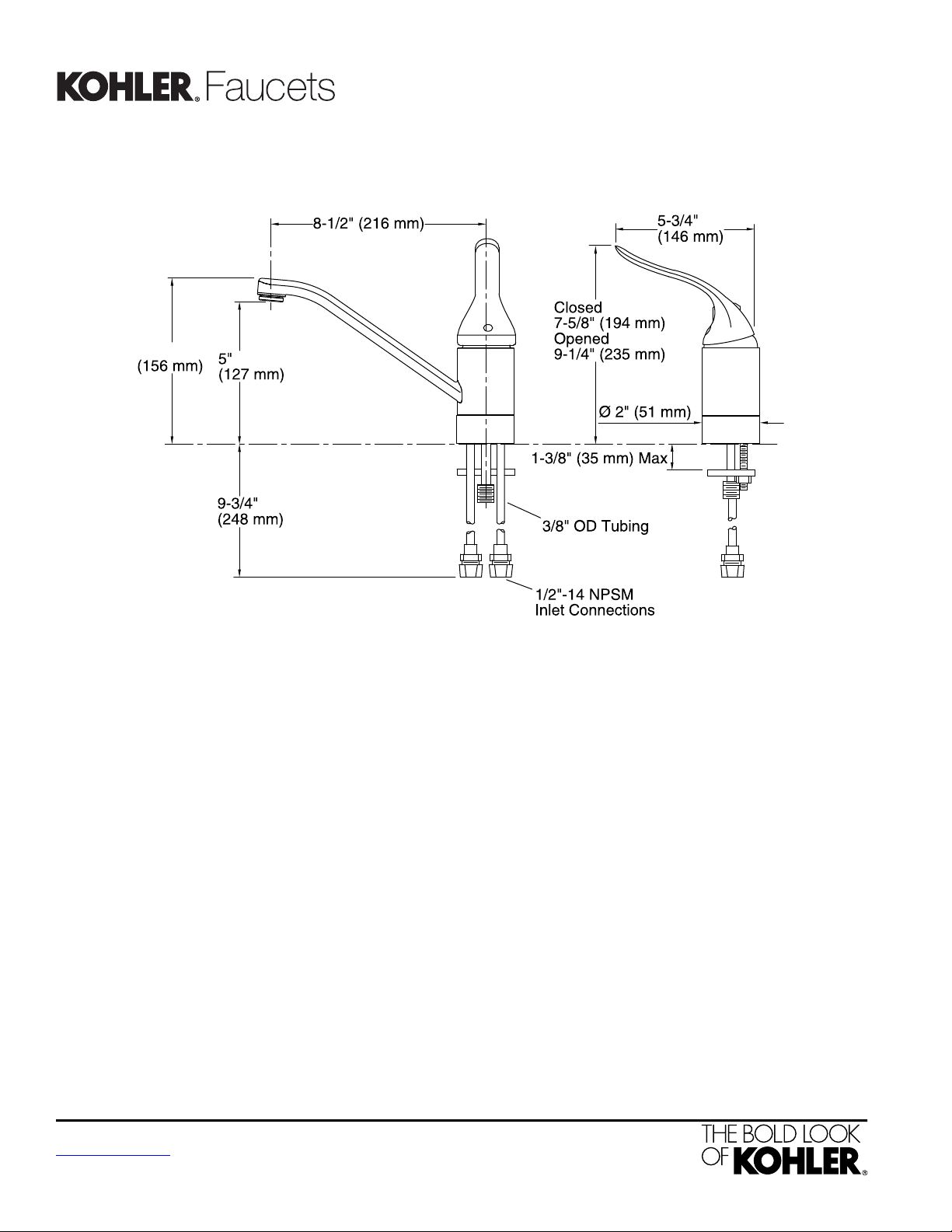

Technical Information
All product dimensions are nominal.
8-1/2" (216 mm)Spout reach:
Faucet:
2.2 gal/min (8.3 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:44
