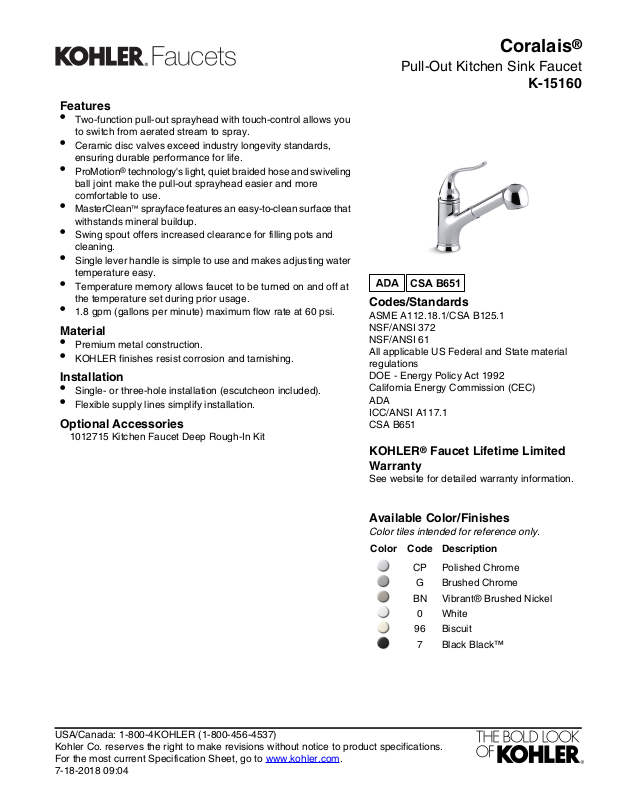

Page 1
Features
CSA B651
•
Two-function pull-out sprayhead with touch-control allows you
to switch from aerated stream to spray.
•
Ceramic disc valves exceed industry longevity standards,
ensuring durable performance for life.
•
ProMotion® technology's light, quiet braided hose and swiveling
ball joint make the pull-out sprayhead easier and more
comfortable to use.
•
MasterClean™ sprayface features an easy-to-clean surface that
withstands mineral buildup.
•
Swing spout offers increased clearance for filling pots and
cleaning.
•
Single lever handle is simple to use and makes adjusting water
temperature easy.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
1.8 gpm (gallons per minute) maximum flow rate at 60 psi.
Material
•
Premium metal construction.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Single- or three-hole installation (escutcheon included).
•
Flexible supply lines simplify installation.
Optional Accessories
1012715 Kitchen Faucet Deep Rough-In Kit
Coralais
Pull-Out Kitchen Sink Faucet
K-15160
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 372
NSF/ANSI 61
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
®
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Brushed ChromeG
Vibrant® Brushed NickelBN
White0
Biscuit96
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-18-2018 09:04
Page 2
Valve Outlet Hose
Coralais
®
Pull-Out Kitchen Sink Faucet
K-15160

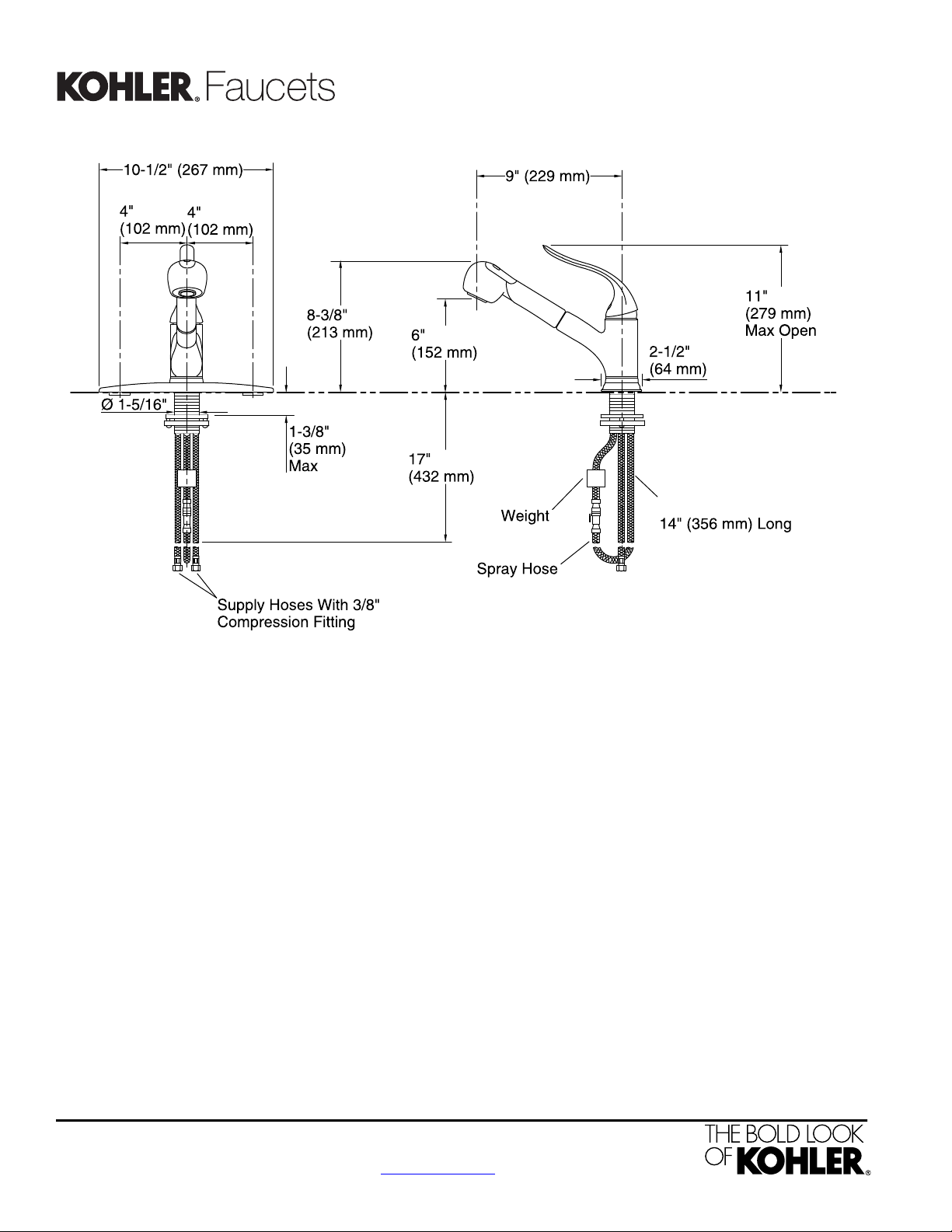

Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
All necessary parts included for both single-hole
and three-hole installation.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-18-2018 09:04
