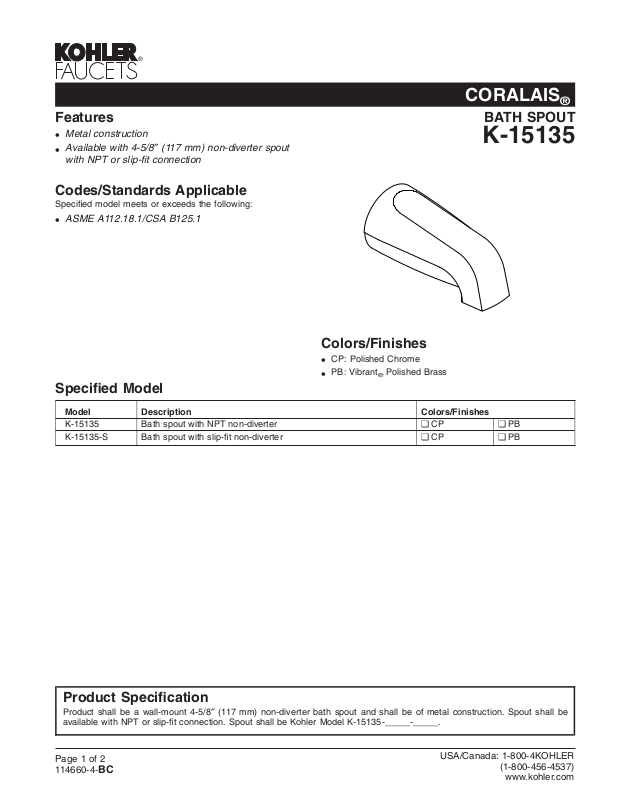

CORALAIS
®
Features
Metal construction
•
Available with 4-5/8″ (117 mm) non-diverter spout
•
with NPT or slip-fit connection
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Specified Model
Colors/Finishes
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
BATH SPOUT
K-15135
Model Description Colors/Finishes
K-15135 Bath spout with NPT non-diverter ❑ CP ❑ PB
K-15135-S Bath spout with slip-fit non-diverter ❑ CP ❑ PB
Product Specification
Product shall be a wall-mount 4-5/8″ (117 mm) non-diverter bath spout and shall be of metal construction. Spout shall be
available with NPT or slip-fit connection. Spout shall be Kohler Model K-15135-_____-_____.
Page 1 of 2
114660-4-
BC
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
CORALAIS
®
Installation Notes
Install this product according to the installation guide.
1/2" NPT Pipe or 5/8" OD Tubing
For slip-fit spout, tubing must extend
1-1/2" (38 mm) Min; 2-7/8" (73 mm)
Max beyond finished wall.
For 1/2" NPT spout, pipe must extend
3-7/8" (98 mm) beyond finished wall.
CORALAIS®BATH SPOUT
Page2of2
114660-4-
BC
Ø 2-1/2"
(64 mm)
4-5/8" (117 mm)
Product Diagram
