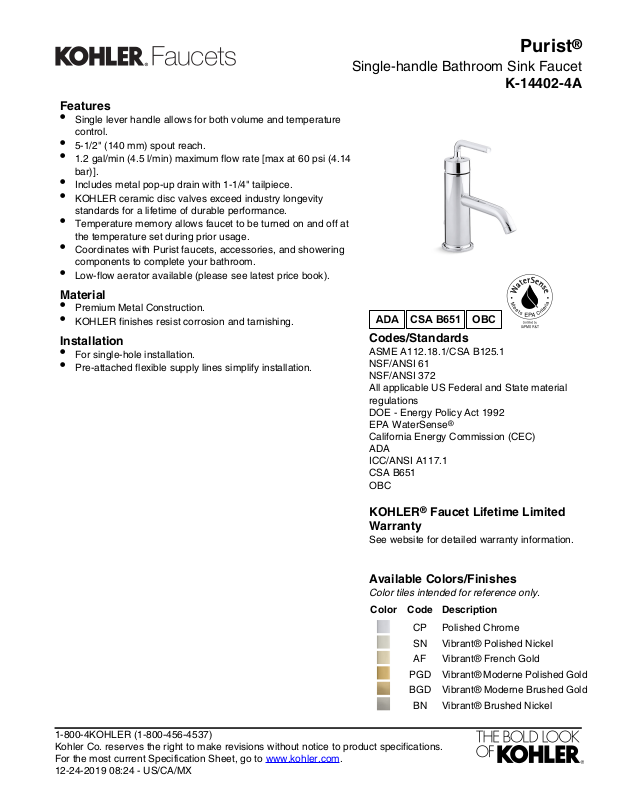

Page 1
Features
CSA B651
OBC
•
Single lever handle allows for both volume and temperature
control.
•
5-1/2" (140 mm) spout reach.
•
1.2 gal/min (4.5 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
•
Includes metal pop-up drain with 1-1/4" tailpiece.
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
Coordinates with Purist faucets, accessories, and showering
components to complete your bathroom.
•
Low-flow aerator available (please see latest price book).
Material
•
Premium Metal Construction.
•
KOHLER finishes resist corrosion and tarnishing.
Purist
®
Single-handle Bathroom Sink Faucet
K-14402-4A
Installation
•
For single-hole installation.
•
Pre-attached flexible supply lines simplify installation.
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® French GoldAF
Vibrant® Moderne Polished GoldPGD
Vibrant® Moderne Brushed GoldBGD
Vibrant® Brushed NickelBN
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-24-2019 08:24 - US/CA/MX
Page 2

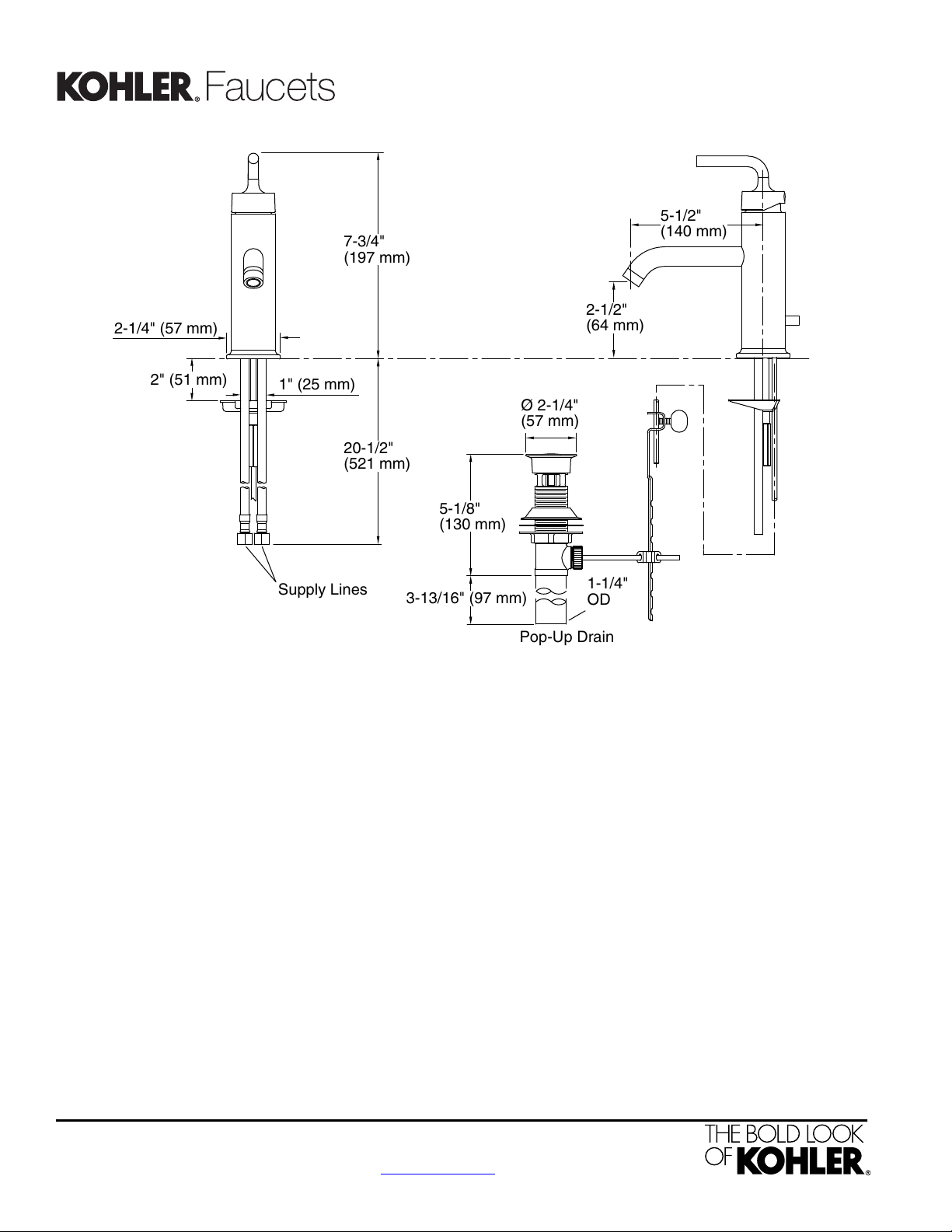

Supply Lines
7-3/4"
(197 mm)
2-1/2"
(64 mm)
5-1/2"
(140 mm)
2" (51 mm)
1" (25 mm)
20-1/2"
(521 mm)
2-1/4" (57 mm)
Pop-Up Drain
1-1/4"
OD
3-13/16" (97 mm)
5-1/8"
(130 mm)
Ø 2-1/4"
(57 mm)
Purist
®
Single-handle Bathroom Sink Faucet
K-14402-4A
Technical Information
All product dimensions are nominal.
Faucet:
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
YesDrain included:
YesDrain tailpiece
included:
Spout:
5-1/2" (140 mm)Spout reach:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-24-2019 08:24 - US/CA/MX
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
