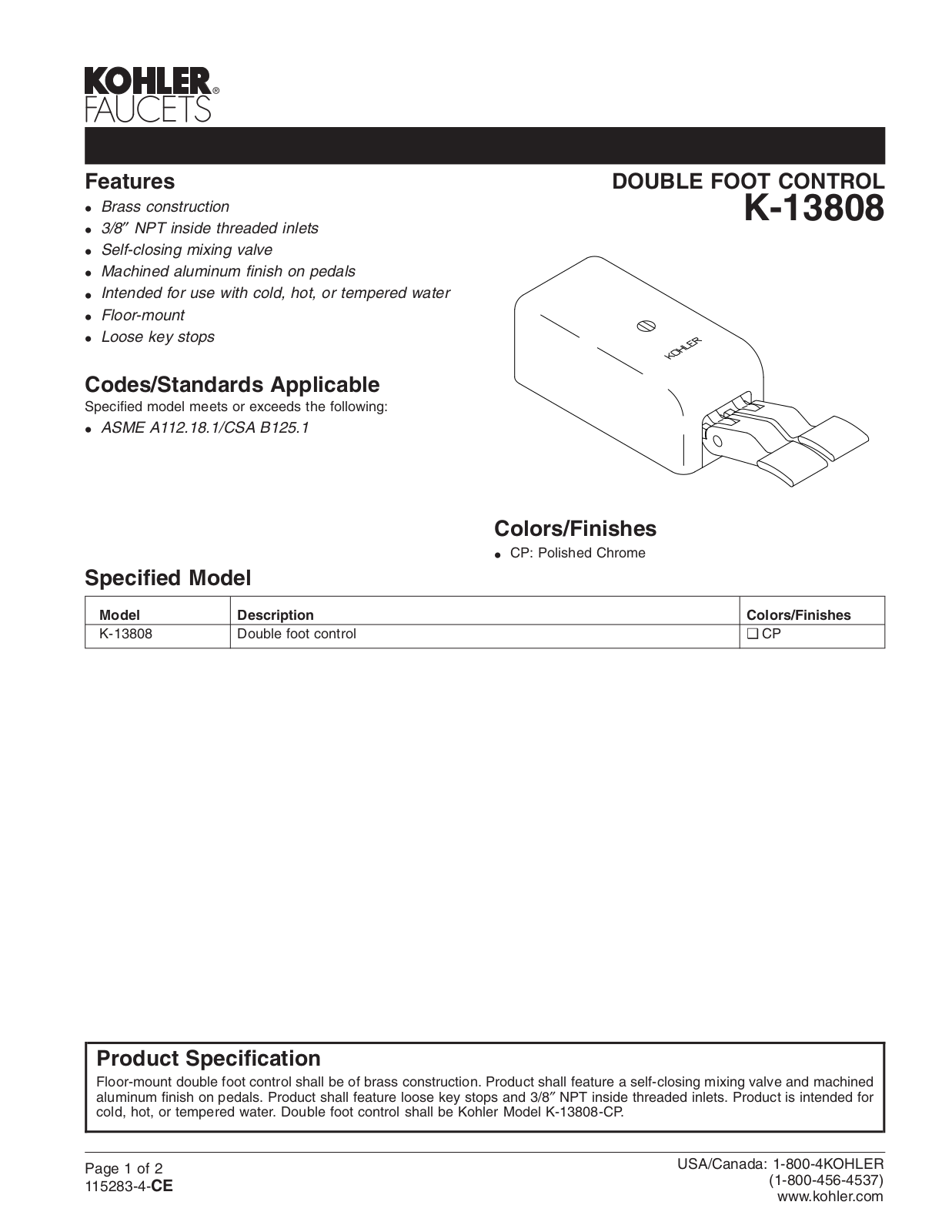

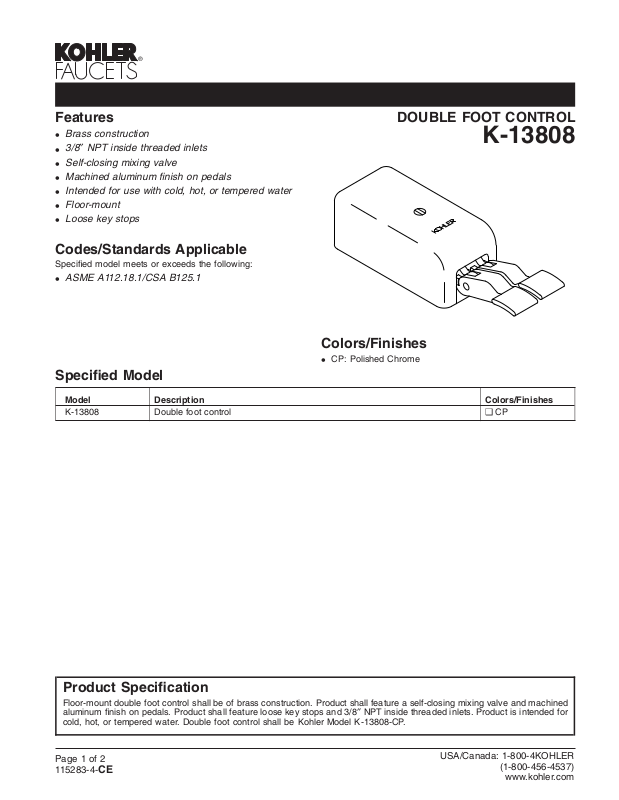

Page 1
Features
Brass construction
•
3/8″ NPT inside threaded inlets
•
Self-closing mixing valve
•
Machined aluminum finish on pedals
•
Intended for use with cold, hot, or tempered water
•
Floor-mount
•
Loose key stops
•
DOUBLE FOOT CONTROL
K-13808
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Colors/Finishes
CP: Polished Chrome
•
Specified Model
Model Description Colors/Finishes
K-13808 Double foot control ❑ CP
Product Specification
Floor-mount double foot control shall be of brass construction. Product shall feature a self-closing mixing valve and machined
aluminum finish on pedals. Product shall feature loose key stops and 3/8″ NPT inside threaded inlets. Product is intended for
cold, hot, or tempered water. Double foot control shall be Kohler Model K-13808-CP.
Page 1 of 2
115283-4-
CE
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com

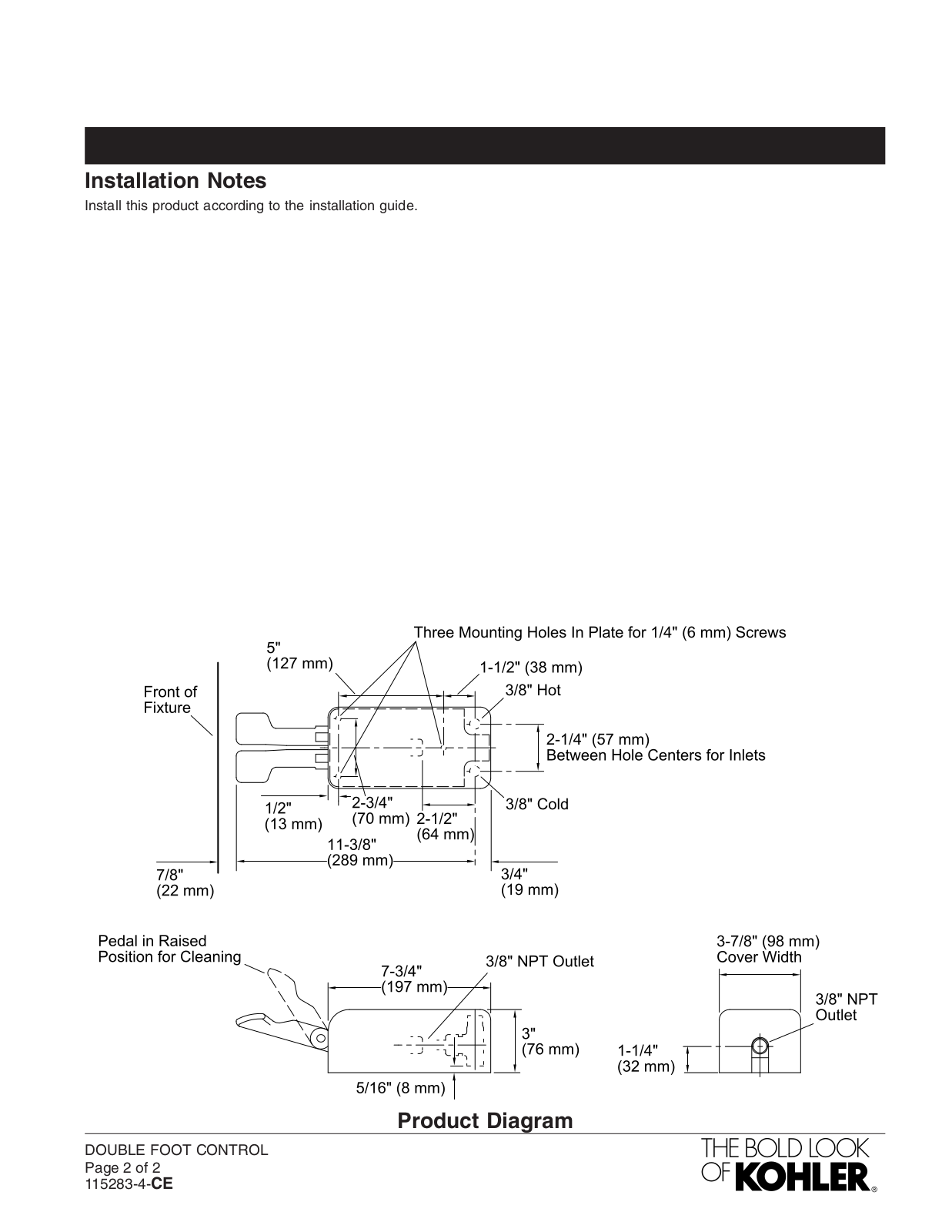

Page 2
Installation Notes
Install this product according to the installation guide.
DOUBLE FOOT CONTROL
Page2of2
115283-4-
CE
Product Diagram
