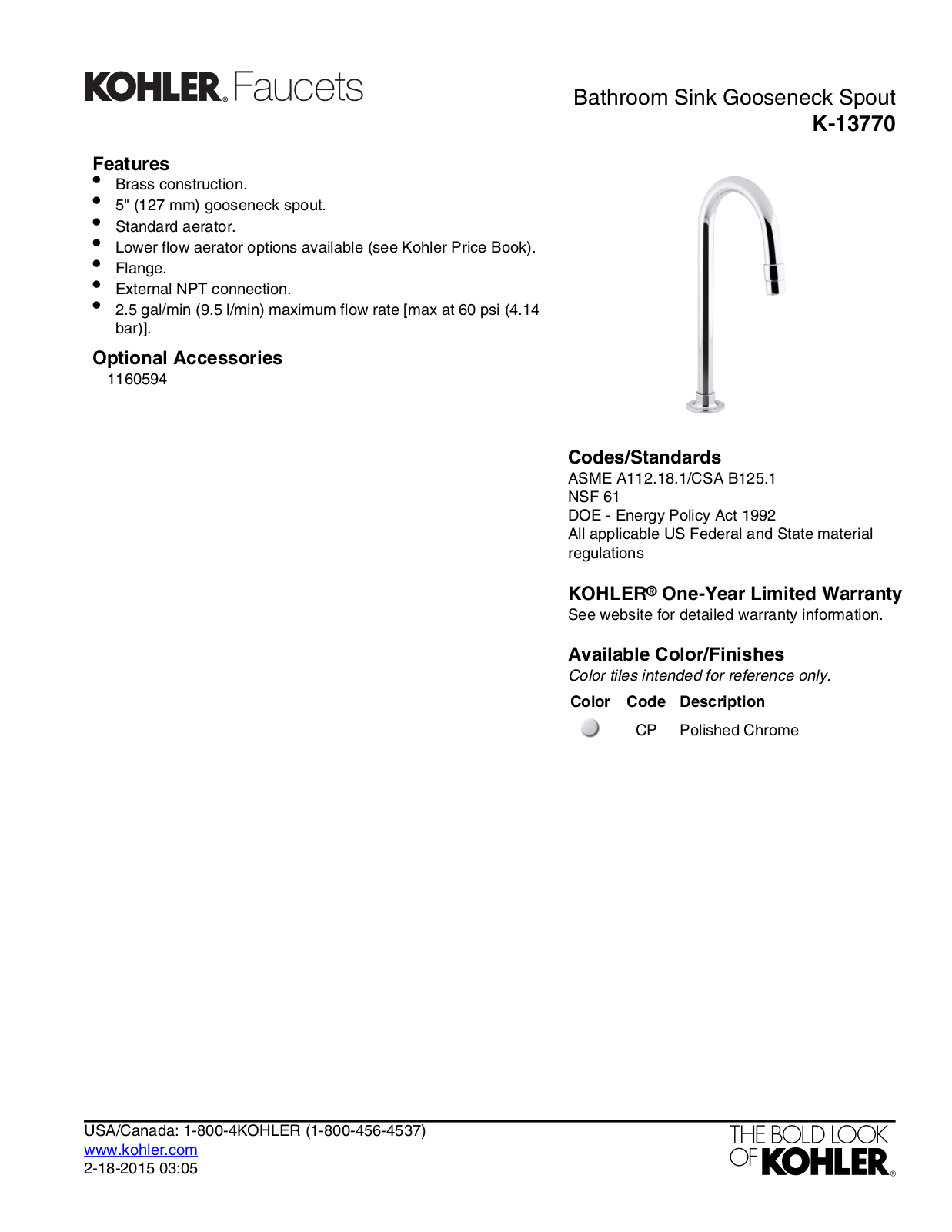

Page 1
Features
•
Brass construction.
•
5" (127 mm) gooseneck spout.
•
Standard aerator.
•
Lower flow aerator options available (see Kohler Price Book).
•
Flange.
•
External NPT connection.
•
2.5 gal/min (9.5 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Optional Accessories
1160594
Bathroom Sink Gooseneck Spout
K-13770
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
DOE - Energy Policy Act 1992
All applicable US Federal and State material
regulations
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:05

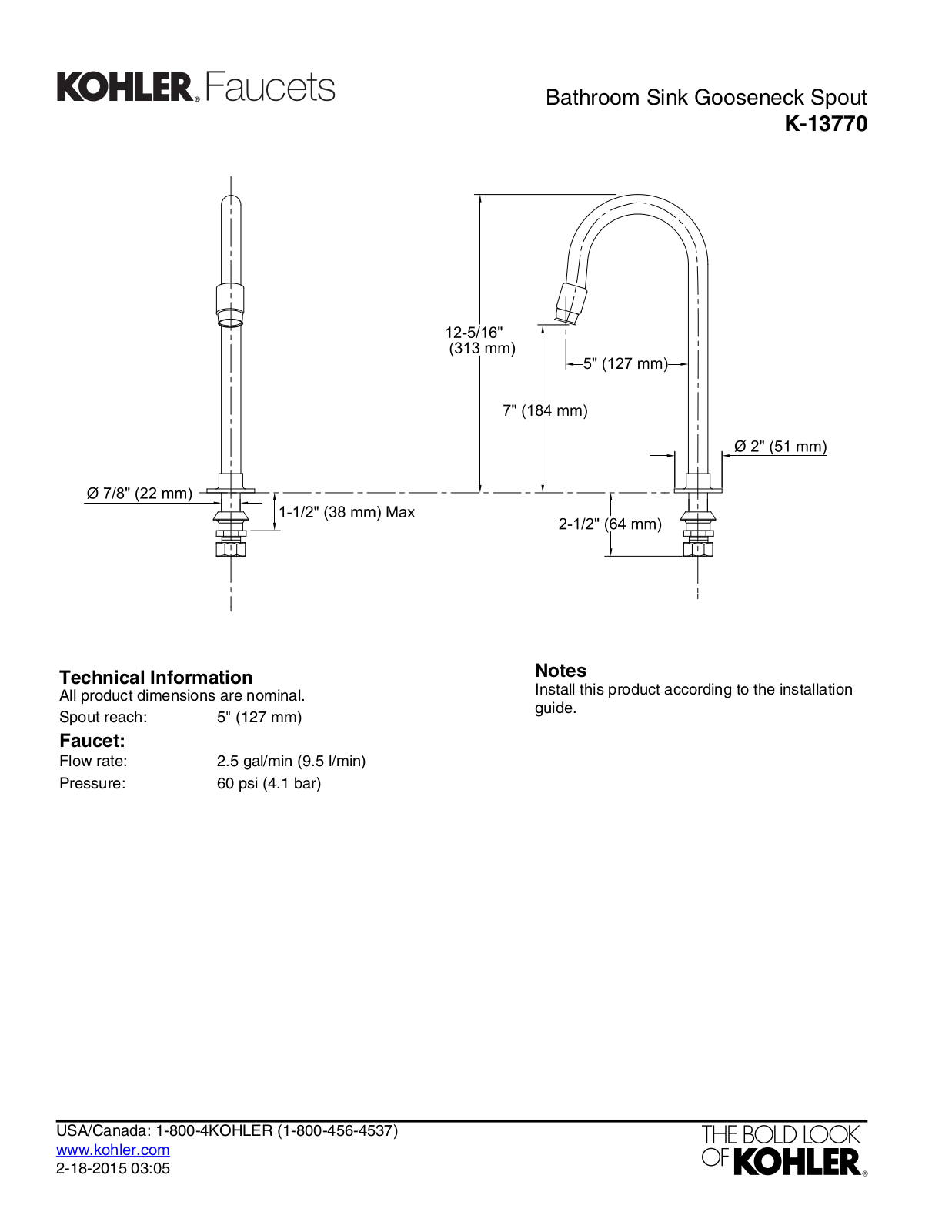

Page 2
Bathroom Sink Gooseneck Spout
K-13770
Technical Information
All product dimensions are nominal.
5" (127 mm)Spout reach:
Faucet:
2.5 gal/min (9.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:05
