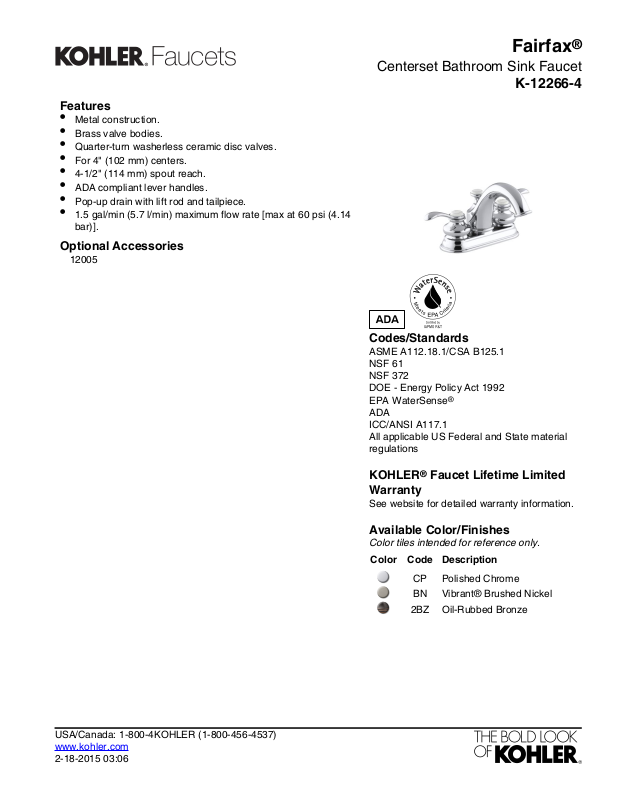

Page 1
Features
•
Metal construction.
•
Brass valve bodies.
•
Quarter-turn washerless ceramic disc valves.
•
For 4" (102 mm) centers.
•
4-1/2" (114 mm) spout reach.
•
ADA compliant lever handles.
•
Pop-up drain with lift rod and tailpiece.
•
1.5 gal/min (5.7 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Optional Accessories
12005
Fairfax
®
Centerset Bathroom Sink Faucet
K-12266-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
Oil-Rubbed Bronze2BZ
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:06
Page 2

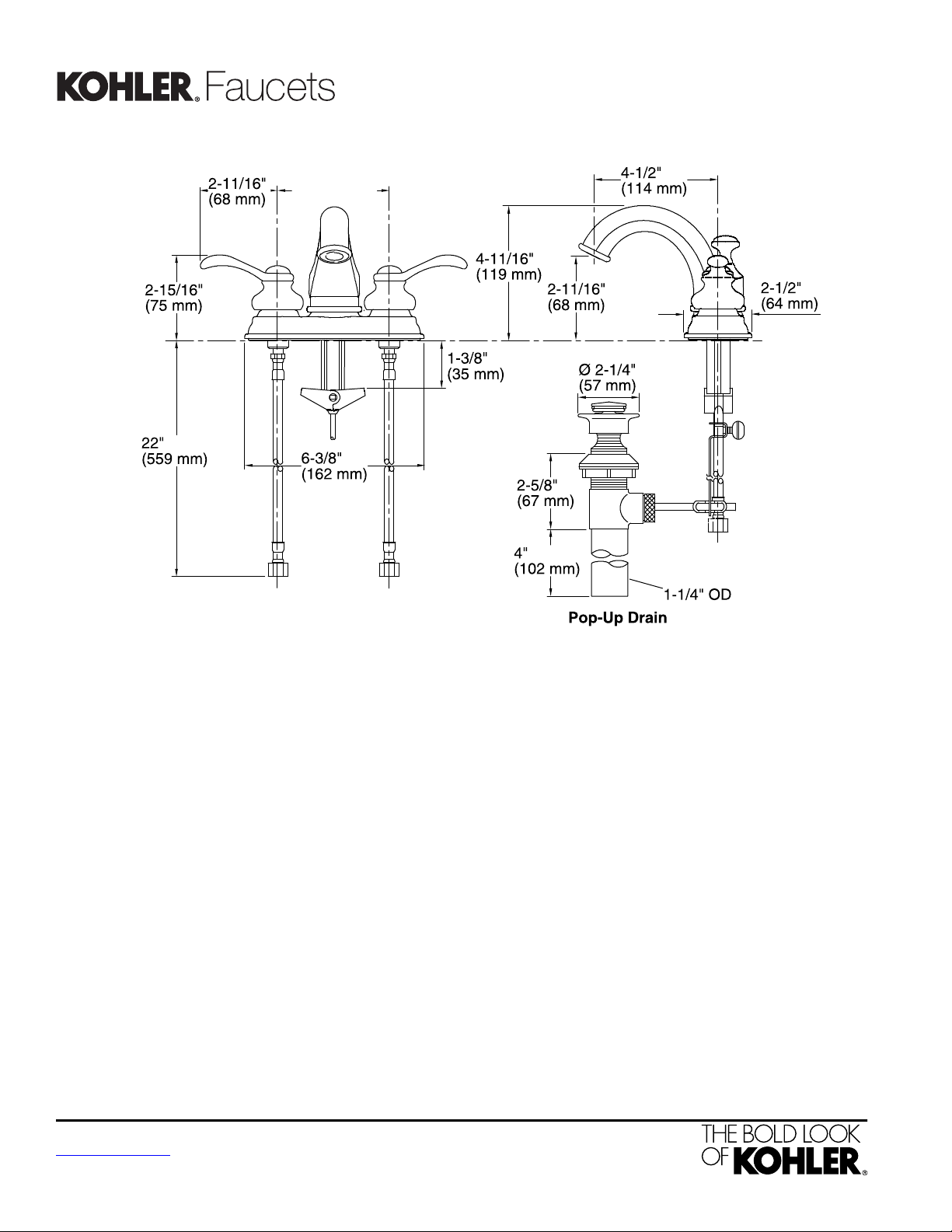

4" (102 mm)
Fairfax
®
Centerset Bathroom Sink Faucet
K-12266-4
Technical Information
All product dimensions are nominal.
4-1/2" (114 mm)Spout reach:
YESDrain included:
YESDrain tailpiece
included:
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:06
