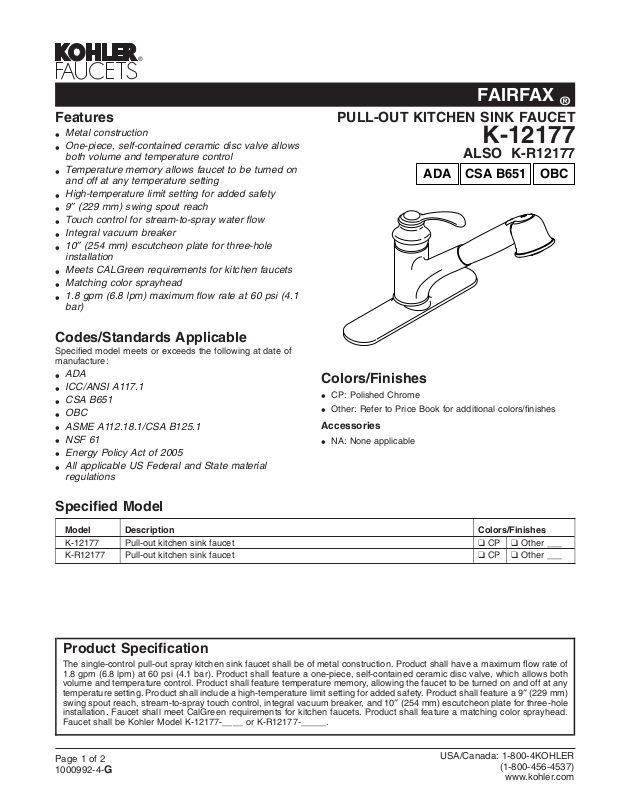

Page 1
FAIRFAX
®
Features
Metal construction
•
One-piece, self-contained ceramic disc valve allows
•
both volume and temperature control
Temperature memory allows faucet to be turned on
•
and off at any temperature setting
High-temperature limit setting for added safety
•
9″ (229 mm) swing spout reach
•
Touch control for stream-to-spray water flow
•
Integral vacuum breaker
•
10″ (254 mm) escutcheon plate for three-hole
•
installation
Meets CALGreen requirements for kitchen faucets
•
Matching color sprayhead
•
1.8 gpm (6.8 lpm) maximum flow rate at 60 psi (4.1
•
bar)
Codes/Standards Applicable
Specified model meets or exceeds the following at date of
manufacture:
ADA
•
ICC/ANSI A117.1
•
CSA B651
•
OBC
•
ASME A112.18.1/CSA B125.1
•
NSF 61
•
Energy Policy Act of 2005
•
All applicable US Federal and State material
•
regulations
PULL-OUT KITCHEN SINK FAUCET
K-12177
ALSO K-R12177
ADA CSA B651
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
NA: None applicable
•
OBC
Specified Model
Model Description Colors/Finishes
K-12177 Pull-out kitchen sink faucet ❑ CP ❑ Other ___
K-R12177 Pull-out kitchen sink faucet ❑ CP ❑ Other ___
Product Specification
The single-control pull-out spray kitchen sink faucet shall be of metal construction. Product shall have a maximum flow rate of
1.8 gpm (6.8 lpm) at 60 psi (4.1 bar). Product shall feature a one-piece, self-contained ceramic disc valve, which allows both
volume and temperature control. Product shall feature temperature memory, allowing the faucet to be turned on and off at any
temperature setting. Product shall include a high-temperature limit setting for added safety. Product shall feature a 9″ (229 mm)
swing spout reach, stream-to-spray touch control, integral vacuum breaker, and 10″ (254 mm) escutcheon plate for three-hole
installation. Faucet shall meet CalGreen requirements for kitchen faucets. Product shall feature a matching color sprayhead.
Faucet shall be Kohler Model K-12177-____ or K-R12177-_____.
Page 1 of 2
1000992-4-
G
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
FAIRFAX
Optional Accessories
1012715 Deep roughing-in kit – requires 1-7/16″ (37 mm) to 1-1/2″ (38 mm) diameter hole to
accommodate 1-1/2″ (38 mm) to 3-3/8″ (86 mm) thick installations
1055715 Low flow kit – reduces maximum flow to 1.5 gpm (5.7 lpm) at 60 psi (4.1 bar) ❑ NA
®
Installation Notes
Install this product according to the installation guide.
This product meets all plumbing codes for vacuum breaker
requirements.
ADA, ICC/ANSI A117.1, CSA B651, OBC compliant when
installed to the specific requirements of these regulations.
❑ NA
17"
(432 mm)
4"
(102 mm)
Spray
Hose
Weight
10-1/2"
(267 mm)
8-3/8"
(213 mm)
4"
(102 mm)
Supply Hoses With 3/8"
Compression Fitting
6"
(152 mm)
1-3/8"
(35 mm)
Max
Spray Hose
9" (229 mm)
8-1/4"
2-1/2"
(64 mm)
Ø 1-5/16" (33 mm)
Ø 2-1/4"
(57 mm)
Valve Outlet Hose
30" (762 mm) Long
(210 mm)
Max Open
FAIRFAX®PULL-OUT KITCHEN SINK FAUCET
Page2of2
1000992-4-
G
Product Diagram
