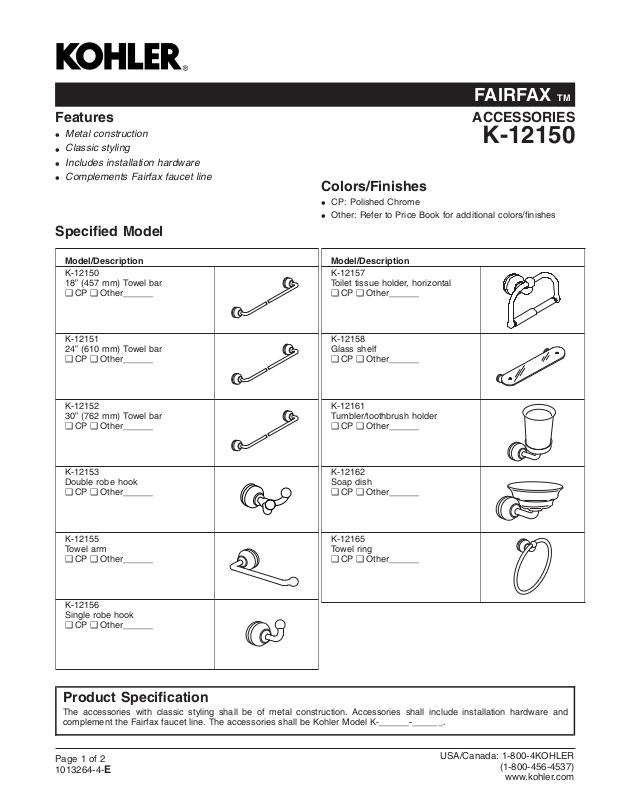

Page 1

FAIRFAX TM

Features

Metal construction

•

Classic styling

•

Includes installation hardware

•

Complements Fairfax faucet line

•

Speciﬁed Model

Model/Description

K-12150 18” (457 mm) Towel bar

❑ CP ❑ Other______

K-12151 24” (610 mm) Towel bar

❑ CP ❑ Other______

K-12152 30” (762 mm) Towel bar

❑ CP ❑ Other______

ACCESSORIES

K-12150

Colors/Finishes

CP: Polished Chrome

•

Other: Refer to Price Book for additional colors/ﬁnishes

•

Model/Description

K-12157 Toilet tissue holder, horizontal

❑ CP ❑ Other______

K-12158 Glass shelf

❑ CP ❑ Other______

K-12161 Tumbler/toothbrush holder

❑ CP ❑ Other______

K-12153 Double robe hook

❑ CP ❑ Other______

K-12155 Towel arm

❑ CP ❑ Other______

K-12156 Single robe hook

❑ CP ❑ Other______

K-12162 Soap dish

❑ CP ❑ Other______

K-12165 Towel ring

❑ CP ❑ Other______

Product Speciﬁcation

The accessories with classic styling shall be of metal construction. Accessories shall include installation hardware and complement the Fairfax faucet line. The accessories shall be Kohler Model K-______-______.

Page 1 of 2 1013264-4-

USA/Canada: 1-800-4KOHLER

(1-800-456-4537)

www.kohler.com

Page 2

FAIRFAX TM

Installation Notes

CAUTION: Risk of personal injury. Do not install

these products in any area where they are likely to be used inadvertently as a grab bar or support bar. These products are not designed or intended for use as a grab bar or support bar.

Install this product according to the installation guide.

K-12150=20-1/2" (521 mm) K-12151=26-1/2" (673 mm) K-12152=32-1/2" (826 mm)

K-12158

6-3/8" (162 mm)

K-12162

5-11/16" (144 mm)

4" (102 mm)

K-12150= K-12151=24" (610 mm)

K-12152=30" (762 mm)

17-3/4" (451 mm)

18" (457 mm)

22-1/2" (572 mm)

3-1/4" (83 mm)

1-11/16" (43 mm)

Ø 2-1/2" (64 mm)

4" (102 mm)

K-12155

3-3/4" (95 mm)

K-12165

K-12153

Ø 2-1/2" (64 mm)

7-5/8" (194 mm)

Ø 7" (178 mm)

1-3/4" (44 mm)

K-12157

4-3/4" (121 mm)

K-12156

3-5/8" (92 mm)

K-12161

5-11/16" (144 mm)

3-3/8" (86 mm)

6-1/2" (165 mm)

1-11/16" (43 mm)

1-3/8" (35 mm)

FAIRFAX TM ACCESSORIES Page2of2

1013264-4-

Product Diagram
