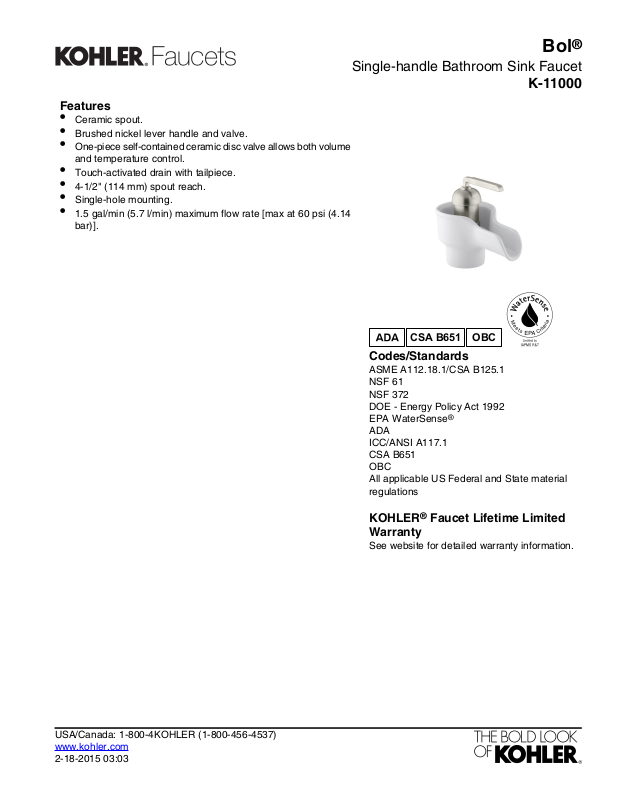

Page 1
Features
CSA B651
OBC
•
Ceramic spout.
•
Brushed nickel lever handle and valve.
•
One-piece self-contained ceramic disc valve allows both volume
and temperature control.
•
Touch-activated drain with tailpiece.
•
4-1/2" (114 mm) spout reach.
•
Single-hole mounting.
•
1.5 gal/min (5.7 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
®
Bol
Single-handle Bathroom Sink Faucet
K-11000
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
CSA B651
OBC
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:03
Page 2
4-1/2"
®
Bol
Single-handle Bathroom Sink Faucet
K-11000

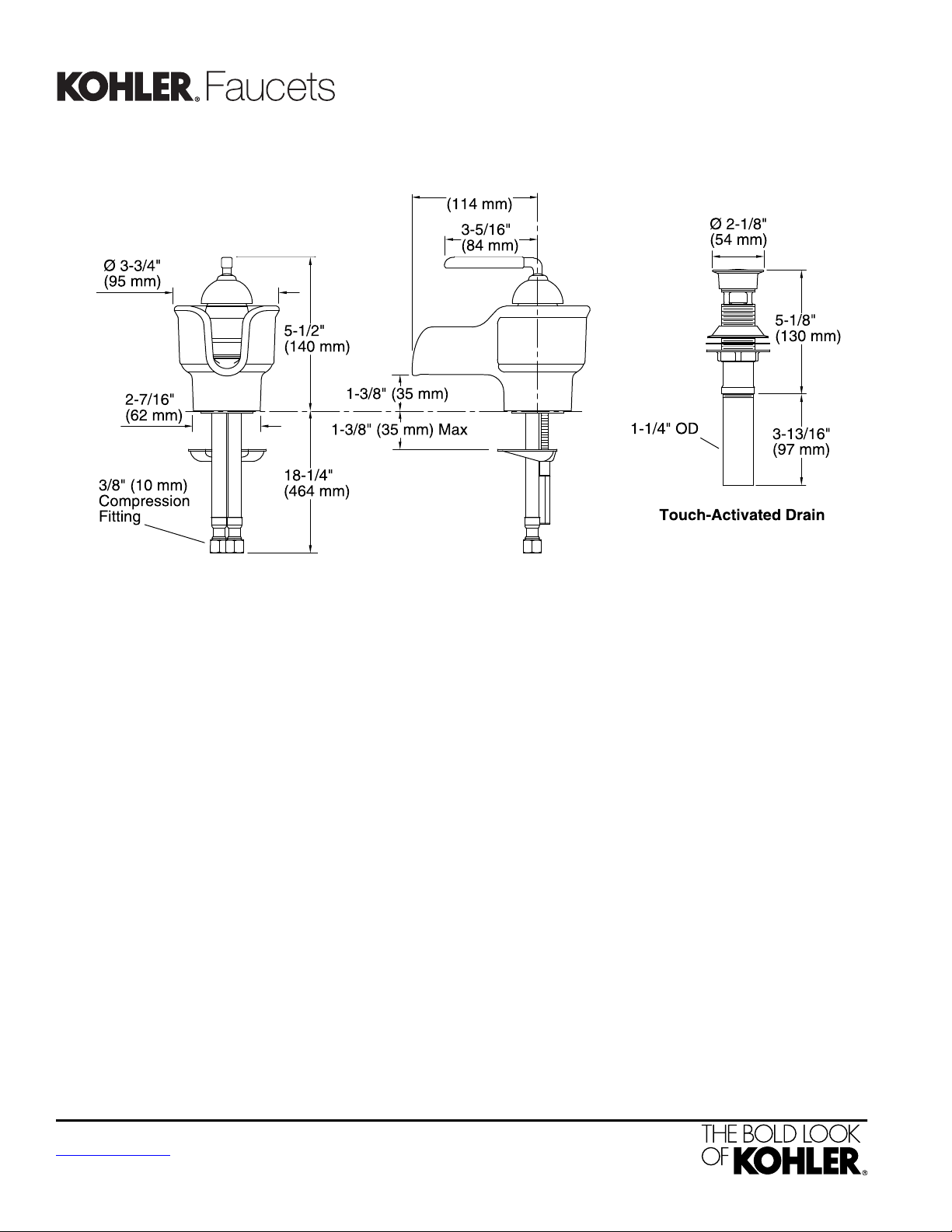

Technical Information
All product dimensions are nominal.
4-1/2" (114 mm)Spout reach:
YESDrain included:
YESDrain tailpiece
included:
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:03
