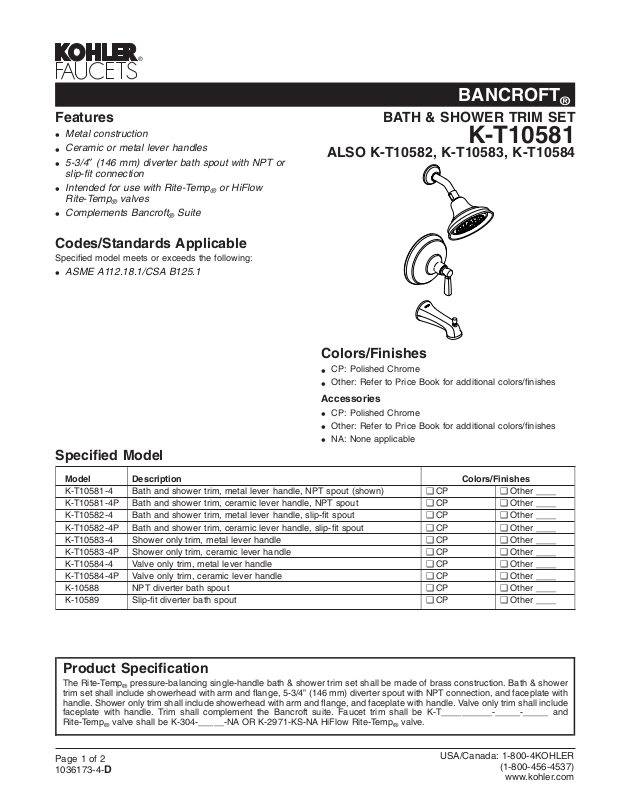

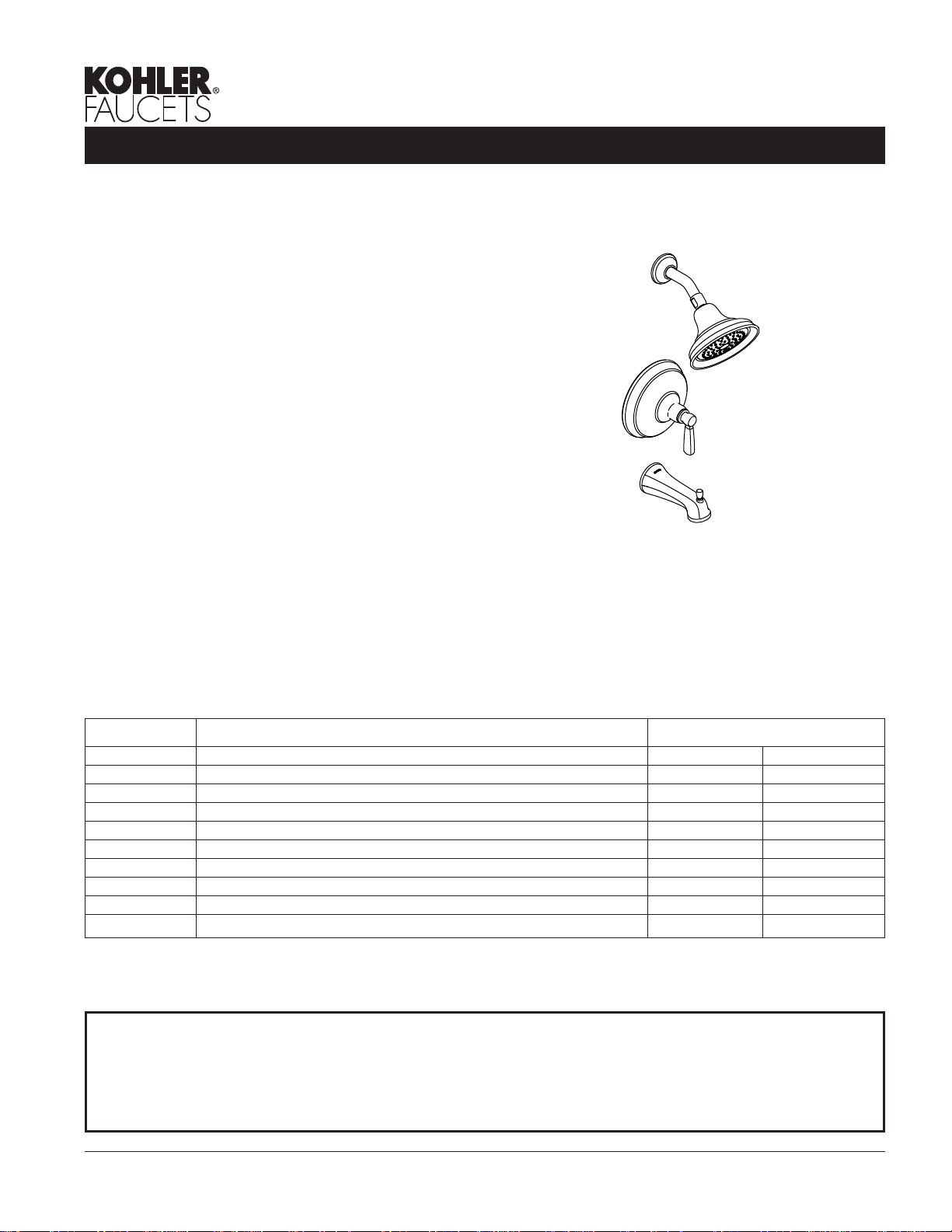

BANCROFT
®
Features
Metal construction
•
Ceramic or metal lever handles
•
5-3/4″ (146 mm) diverter bath spout with NPT or
•
slip-fit connection
Intended for use with Rite-Temp
•
Rite-Temp
Complements Bancroft
•
valves
®
®
Suite
or HiFlow
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Specified Model
BATH & SHOWER TRIM SET
K-T10581
ALSO K-T10582, K-T10583, K-T10584
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
NA: None applicable
•
Model Description Colors/Finishes
K-T10581-4 Bath and shower trim, metal lever handle, NPT spout (shown) ❑ CP ❑ Other ____
K-T10581-4P Bath and shower trim, ceramic lever handle, NPT spout ❑ CP ❑ Other ____
K-T10582-4 Bath and shower trim, metal lever handle, slip-fit spout ❑ CP ❑ Other ____
K-T10582-4P Bath and shower trim, ceramic lever handle, slip-fit spout ❑ CP ❑ Other ____
K-T10583-4 Shower only trim, metal lever handle ❑ CP ❑ Other ____
K-T10583-4P Shower only trim, ceramic lever handle ❑ CP ❑ Other ____
K-T10584-4 Valve only trim, metal lever handle ❑ CP ❑ Other ____
K-T10584-4P Valve only trim, ceramic lever handle ❑ CP ❑ Other ____
K-10588 NPT diverter bath spout ❑ CP ❑ Other ____
K-10589 Slip-fit diverter bath spout ❑ CP ❑ Other ____
Product Specification
The Rite-Temp®pressure-balancing single-handle bath & shower trim set shall be made of brass construction. Bath & shower
trim set shall include showerhead with arm and flange, 5-3/4” (146 mm) diverter spout with NPT connection, and faceplate with
handle. Shower only trim shall include showerhead with arm and flange, and faceplate with handle. Valve only trim shall include
faceplate with handle. Trim shall complement the Bancroft suite. Faucet trim shall be K-T__________-_____-_____ and
Rite-Temp
Page 1 of 2
1036173-4-
valve shall be K-304-_____-NA OR K-2971-KS-NA HiFlow Rite-Temp®valve.
®
D
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
BANCROFT
Required Accessories
K-304-* Rite-Temp valve OR ❑ NA
K-2971-KS HiFlow Rite-Temp valve with stops ❑ NA
* For a complete listing of all the Rite-Temp valves, refer to the K-304-* Specification Sheet or Roughing-In sheet.
Optional Accessories
88526 HiFlow Rite-Temp
®
thin wall installation kit ❑ CP ❑ Other ____
®
Installation Notes
Install this product according to the installation guide.
NOTICE: Risk of product damage. Long screws, for
installing trim, can damage the K-2971-KS valve. Consult the
trim installation guide to verify if the thin wall installation kit
(88526) is needed.
Avoid cross-flow conditions. Do not install shut-off device on
either valve outlet.
Install straight pipe or tube drop of 7″ (178 mm) to 18″
(457 mm) with single elbow between valve and wall-mount
spout.
1/2"-14 NPT
For slip-fit spout,
1/2" nom. tubing must extend
2-1/8" (54 mm) Min; to
3-1/2" (89 mm) Max
beyond finished wall.
For 1/2" IPS spout,
pipe must extend
4-1/4" (108 mm)
beyond finished wall.
4-9/16"
(116 mm)
6-7/8"
(175 mm)
Top of Bath
5-3/4" (146 mm)

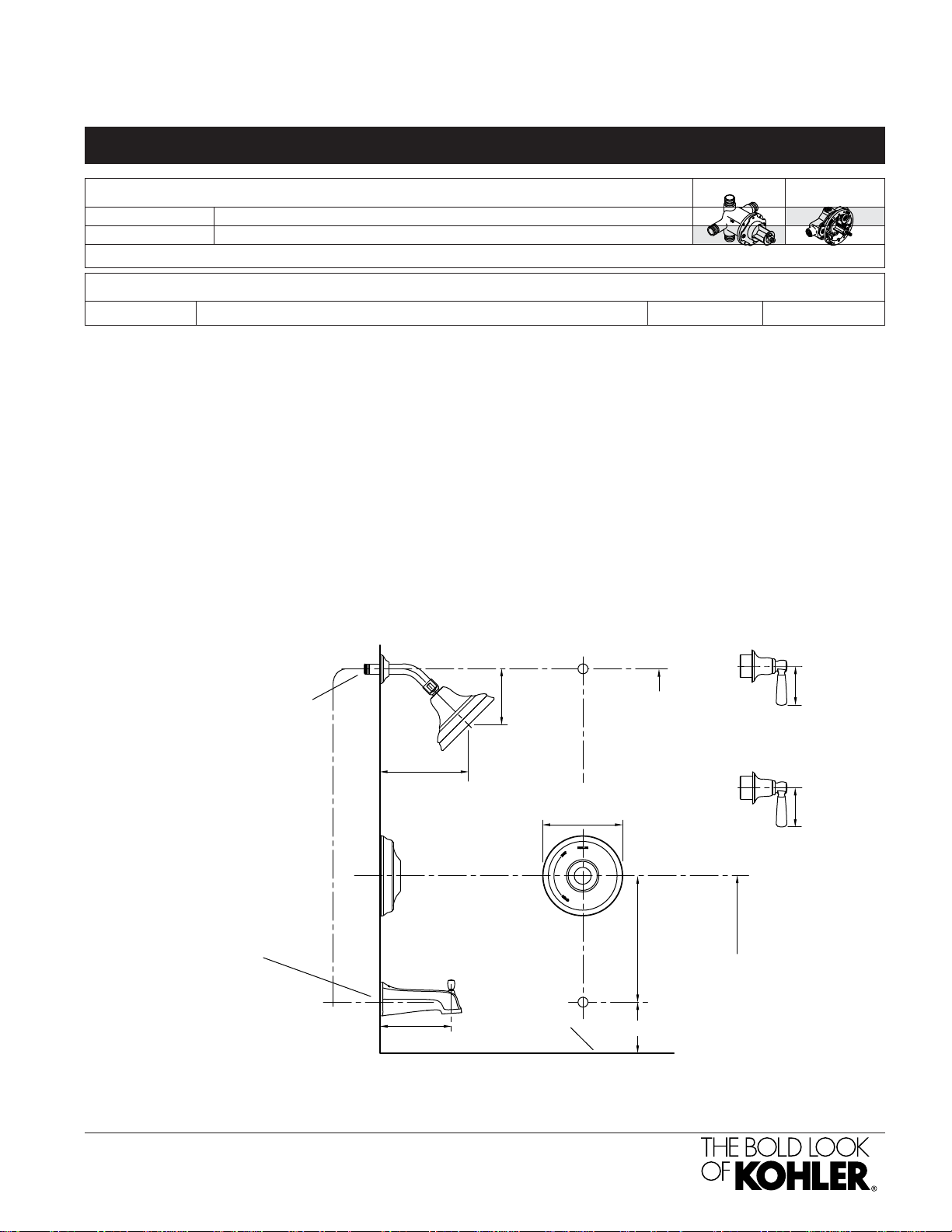

Product Diagram
Ø 6-3/8"
(162 mm)
4" (102 mm)
72" (1829 mm)78" (1981 mm)
To Floor (Typical)
10" (254 mm)
To Spout
(Bath Only)
3-3/16"
(81 mm)
Ceramic
3-3/16"
(81 mm)
Metal
48" (1219 mm)
To Floor
(Shower Only)
BANCROFT®BATH & SHOWER TRIM SET
Page2of2
1036173-4-
D
